| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel Core, Pentium Gold And Celeron Processors Processor Socket LGA1700 |
|
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | Intel Z690 Chipset | |
| Audio | Realtek ALC4080 Codec- 7.1-Channel High Definition Audio Supports S/PDIF Output |
|
| Memory | ||
| Slots | 3x PCIe X16 Slots PCI_E1 Slot (From CPU) Supports PCIe 5.0 X16 PCI_E3 & PCI_E4 Slots (From Z690 Chipset) Supports PCIe 3.0 X4 1x PCIe 3.0 X1 Slot (From Z690 Chipset |
|
| Memory | 4x DDR5 Memory Slots, Support Up To 128GB Supports 1R 4800 MHz, 2R 4000 MHz (By JEDEC & POR)1 Max. Overclocking Frequency: 1DPC 1R Max Speed Up To 6400+ MHz 1DPC 2R Max Speed Up To 5400+ MHz 2DPC 1R Max Speed Up To 4000+ MHz 2DPC 2R Max Speed Up To 4000+ MHz Supports Dual-Channel Mode Supports Non-ECC, Un-Buffered Memory Supports Intel Extreme Memory Profile (XMP) |
|
| Storage | 6x SATA 6Gb/S Ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 X SATA 6Gb/S Ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 Slots (Key M) M2_1 Slot (From CPU) Supports PCIe 4.0 X4 Supports 2260/ 2280/ 22110 Storage Devices M2_2 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports 2260/ 2280 Storage Devices M2_3 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices M2_4 Slot (From Z690 Chipset) Supports PCIe 4.0 X4 Supports SATA 6Gb/S Supports 2242/ 2260/ 2280 Storage Devices M2_2~4 Support Intel® Optane™ Memory Supports Intel® Smart Response Technology For Intel® Core™ Processors |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 With HDR Port, Supports A Maximum Resolution Of 4K 60Hz 1x DisplayPort 1.4 Port With HBR3, Supports A Maximum Resolution Of 4K 60Hz |
|
| Connector & Ports | ||
| LAN | 1x Intel I225V 2.5Gbps LAN Controller | |
| Internal I/O Ports | 1x 24-Pin ATX Main Power Connector 2x 8-Pin ATX 12V Power Connectors 6x SATA 6Gb/S Connectors 4x M.2 Slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C Port 1x USB 3.2 Gen 1 5Gbps Connector (Supports Additional 2 USB 3.2 Gen 1 5Gbps Ports) 2x USB 2.0 Connectors (Supports Additional 4 USB 2.0 Ports) 1x 4-Pin CPU Fan Connector 1x 4-Pin Water-Pump Fan Connector 6x 4-Pin System Fan Connectors 1x Front Panel Audio Connector 2x System Panel Connectors 1x Chassis Intrusion Connector 1xTPM Module Connector 1x Clear CMOS Jumper 1x Tuning Controller Connector 1x TBT Connector (Supports RTD3) |
|

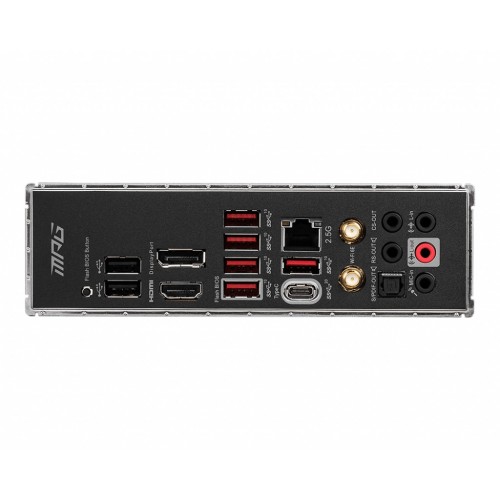

| USB Port | Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C Port On The Back Panel 6x USB 3.2 Gen 2 10Gbps Ports (1 Type-C Internal Connector And 5 Type-A Ports On The Back Panel) 2x USB 2.0 Type-A Ports On The Back Panel 2x USB 3.2 Gen 1 5Gbps Ports Available Through The Internal USB Connector USB Hub-GL850G 4x USB 2.0 Ports Available Through Internal Connectors |
|
| WiFi | Intel® Wi-Fi 6E The Wireless Module Is Pre-Installed In The M.2 (Key-E) Slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) Up To 2.4Gbps Supports 802.11 A/ B/ G/ N/ Ac/ Ax Supports Bluetooth® 5.2, FIPS, FISMA | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

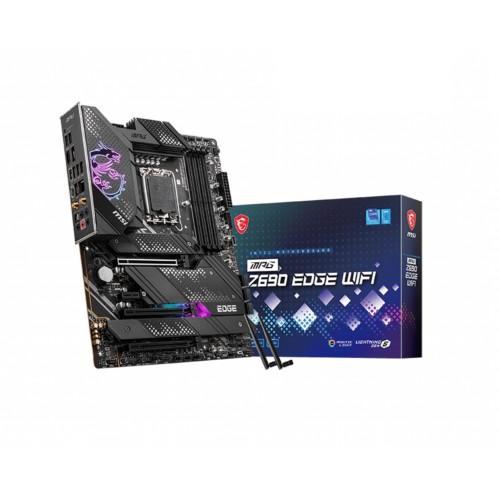

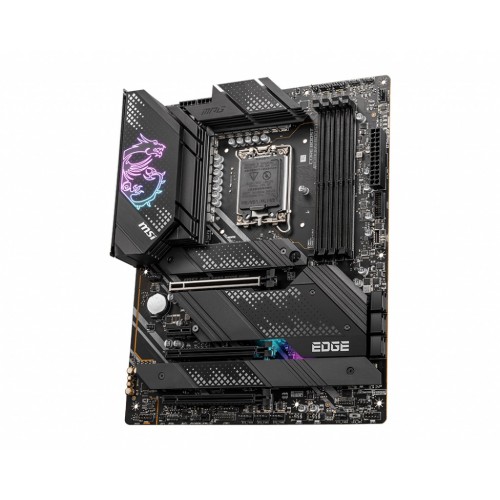

Take A Step Into The Future. MSI Have Returned With The MPG Z690 Series Motherboards Here To Support The Very Latest 12th Generation Intel Processors; Boasting The Brand New Intel 1700 LGA. The MSI Z690 Edge Wi-Fi Is Filled With Premium Tech And Bolstered With An Arsenal Of Top-Shelf Modern Features Like; The Very Latest 5th Generation PCI-E Solution, DDR5 Memory, Huge Storage Options With 4x M.2 Slots (4x PCIe Gen4x4), Lightning 20G USB Connectivity, Audio/Core & DDR5 Memory Boosts, A Premium Thermal Design With Heavy Plated MOSFET Heatsinks, High Quality Thermal Pads, Onboard M.2 Shield Frozr, Wi-Fi 6E Support Delivering Speeds Of Up To 2400 Mbps And A Fully Comprehensive Rear I/O. The Z690 Edge WiFi Combines All Of These Features With Incredible Durability And Stunning Aesthetics To Squeeze Every Ounce Of Performance From Your New CPU. Heed The Call Of The Next-Generation With MSI.
Unleash, Squeeze And Sustain Maximum CPU Performance With An Aggressive VRM Design Built With A Total Of Direct 16+1+1 Power Phases. Combining 2x 8-Pin Power Connectors And Exclusive MSI Core Boost Technology, MPG Series Motherboards Are Ready To Sustain Heavy Daily Loads.
MSI Lightning Gen 5 PCI-E Takes The Theoretical Bandwidth Of A X16 Interface To Whopping 128GB/S, Which Is Double Of The Speed Of The Previous Generation. The Advanced SMT(Surface Mount Technology) PCI-E Slot Reduces Any Interference And Electrical Noise, Fully Supporting The Higher Bandwidth And Faster Transfer Speeds Of PCI-E 5.0 Signal.
A Huge Step Forwards For DDR Performance Enhancement With The Latest DDR5 Memory. Combined With The Dedicated SMT Welding Process And MSI Exclusive Memory Boost Technology, MSI MPG Z690 EDGE WIFI Is Ready To Deliver World Class Memory Performance.
The Latest Wi-Fi 6E Solution Supports 6GHz Spectrum, Bluetooth 5.2, Two-Way MU-MIMO And BSS Color Technology, Provide Up To 4X Network Capacity And Efficiency In The High Signal Density Environment, Delivering Speeds Up To 2400Mbps.
Like A Dedicated Sound Card, Audio Boost 5 Offers A HD Audio Processor, Dedicated Amplifier And High Quality Audio Capacitors All Physically Isolated From The Rest Of The Motherboard Circuitry To Ensure The Purest Audio Signal To Locate Enemies With Pin-Point Accuracy. Powered By An ALC 4080 Audio Processor, This Motherboards Supports 120dB SNR, 32-Bit/384kHz And DSD Super Audio CD Playback & Recording.
MSI PCI Express Steel Armor Slots Are Secured To The Motherboard With Extra Solder Points Are Capable Of Supporting Even The Weight Of The Heaviest Graphics Cards. Plus When Every Advantage In Games Counts, Steel Armor Protects The Point Of Contact From External Electromagnetic Interference.
