| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
|
| Form Factor | ATX 304.8mmx243.84mm |
|
| Basic Information | ||
| Chipset | AMD X670 | |
| Audio | Realtek ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2 3x PCIe 3.0 x1 slots |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR5 | |
| Memory | ||
| Slots | 4 DIMMs | |
| Supported Memory | Dual Channel DDR5 | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz 1x Display Port Support DP 1.4, maximum resolution of 4K 60Hz 1x Type-C Display port Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz Supports AMD MULTI-GPU |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x Display Port | |
| LAN | Realtek RTL8125BG 2.5Gbps LAN | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices |
|
| Supported Storage | 4x M.2 slot M.2_1 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

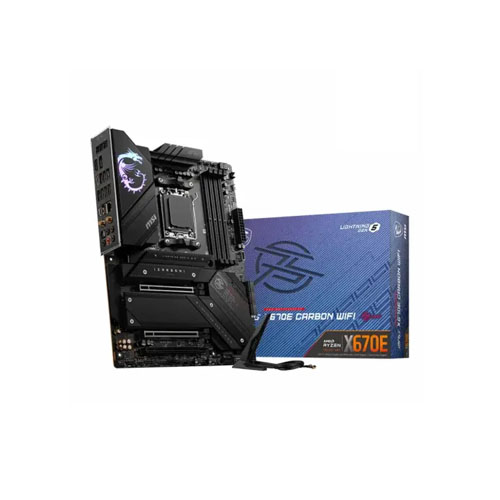

The MSI MPG X670E CARBON WIFI is a cutting-edge ATX motherboard that embodies the latest technological advancements to cater to the demands of modern computing. Designed to support AMD Ryzen 7000 Series Desktop Processors, it features the highly anticipated AM5 socket, which promises to deliver unprecedented performance and efficiency to users.The motherboard's standout feature is its support for DDR5 memory, the next generation of RAM technology. With four DIMM slots, it can accommodate up to 128GB of DDR5 memory in a dual-channel configuration, offering faster data transfer rates and improved multitasking capabilities, resulting in a smoother computing experience.For graphics, the MPG X670E CARBON WIFI boasts a comprehensive array of display options. It includes an HDMI port with support for HDMI 2.1 FRL, enabling breathtaking 4K resolution at a smooth 120Hz refresh rate. The Display Port allows for 4K resolution at 60Hz, while the Type-C Display Port further enhances the visuals with 4K resolution at 120Hz. These features make the motherboard a formidable platform for gaming, content creation, and media consumption, pushing the boundaries of visual fidelity.The expansion slots provide ample opportunities for future upgrades. The motherboard offers one PCIe 4.0/3.0 x16 slot (PCI_E1) and one PCIe 3.0 x16 slot (PCI_E3) with x4 speed. Additionally, three PCIe 3.0 x1 slots are available to accommodate various expansion cards, allowing users to tailor the system to their specific needs.In terms of connectivity, the motherboard comes equipped with a Realtek RTL8125BG 2.5Gbps LAN port, ensuring fast and reliable networking capabilities for online gaming and data transfers. The inclusion of four M.2 slots (two from the CPU and two from the chipset) and six SATA 6G ports opens up extensive storage possibilities, supporting both SATA and NVMe storage devices, while also offering RAID configurations for added data protection and performance.Audio quality is not overlooked, with the Realtek ALC4080 Codec delivering 7.1-channel high-definition audio, complemented by S/PDIF output. The motherboard supports up to 32-Bit/384 kHz playback on the front panel, ensuring immersive sound experiences for gamers and audiophiles alike.The motherboard's internal I/O ports provide comprehensive connectivity options, including various fan connectors for optimal system cooling, USB ports, and addressable RGB LED connectors for customizable lighting effects. The inclusion of a TPM header also allows for enhanced security through TPM 2.0 support.
The MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard is a powerhouse of performance, efficiency, and value. Designed to support the latest AMD Ryzen 7000 Series Desktop Processors, this motherboard delivers exceptional performance for demanding tasks such as gaming, content creation, and multitasking.When it comes to performance, the X670 chipset ensures smooth and efficient operation, allowing you to push your system to its limits. The DDR5 memory technology provides faster data transfer rates and increased bandwidth, resulting in improved overall system responsiveness. With a memory capacity of up to 128GB, you'll have plenty of room to handle resource-intensive applications and multitasking seamlessly.Efficiency is a key highlight of this motherboard. The inclusion of four M.2 slots, two from the CPU and two from the chipset, allows for lightning-fast storage options with support for PCIe 5.0 and 4.0. This means you can take full advantage of high-speed NVMe SSDs for faster boot times and data access. The support for RAID 0, RAID 1, and RAID 10 configurations further enhances data management and storage efficiency.Connectivity is abundant on the MPG X670E CARBON WIFI. The Realtek RTL8125BG 2.5Gbps LAN provides blazing-fast network speeds, ensuring smooth online gaming and data transfers. A variety of USB ports, including USB 3.2 Gen2 Type A and Type C, make it easy to connect peripherals and transfer files quickly. The HDMI and DisplayPort allow for multiple display setups, perfect for immersive gaming or productivity.In terms of value, this motherboard offers a compelling package. The ATX form factor provides ample room for expansion and customization, making it future-proof and versatile. The comprehensive warranty coverage of three years gives you peace of mind, ensuring the longevity and reliability of your investment.In conclusion, the MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard impresses with its exceptional performance, efficiency, and overall value. With its support for the latest AMD Ryzen processors, DDR5 memory technology, ample storage options, and versatile connectivity, it caters to the needs of both gamers and professionals alike. If you're looking for a reliable and high-performing motherboard, the MPG X670E CARBON WIFI is undoubtedly a top contender.
