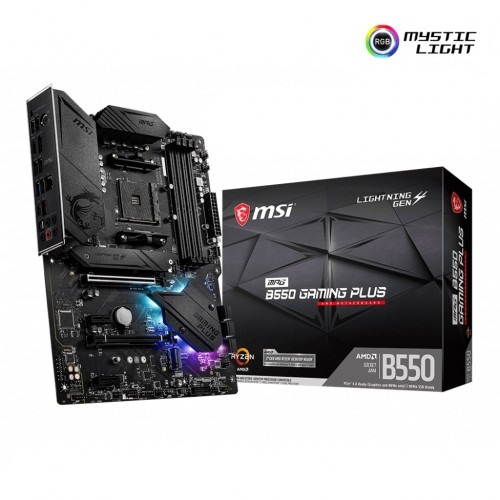

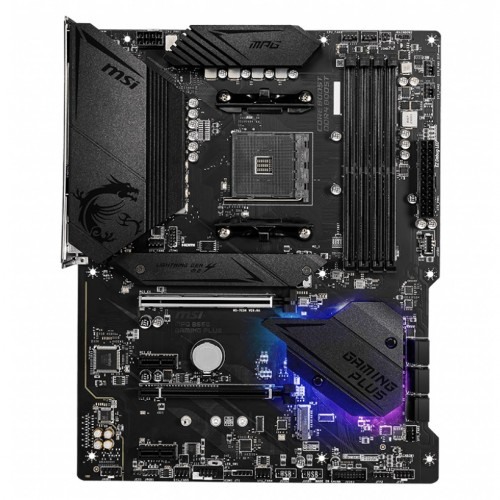

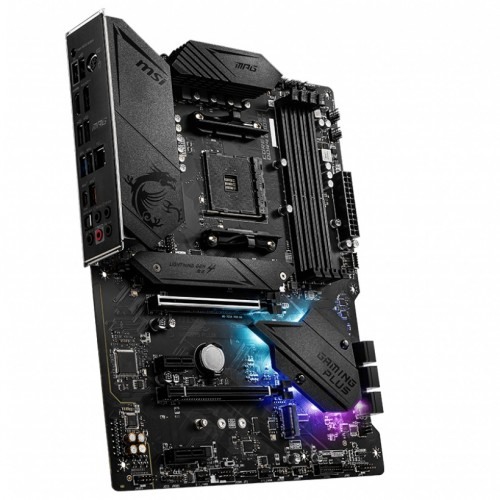

MSI MPG B550 Gaming Plus AM4 ATX Motherboard

Price: Out Of Stock
Status: Out Of Stock
Product Code: 10780
Brand: MSI
Key Features
  • Model : MSI MPG B550 Gaming Plus
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Premium Thermal Solution
  • Lightning Fast Game experience
  • Supports up to 5100+(OC) MHz
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Form Factor

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Basic Information
Chipset AMD B550 Chipset
Audio

Realtek ALC892 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Expansion Slots
PCI

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2x PCIe 3.0 x1 slots
M.2 Socket

2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Memory
Memory Type Dual channel memory architecture
Slots 4 x DDR4 memory slots
Supported Memory

Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHz
1DPC 2R max speed 3866 MHz
2DPC 1R max speed 4000 MHz
2DPC 2R max speed 3600 MHz
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Maximum Memory 128GB
Graphics
Graphics

1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Supports 2-Way AMD CrossFire Technology
Connector & Ports
HDMI 1x HDMI maximum resolution of 4096x2160 @24Hz
Display Port 1x DisplayPort maximum resolution of 4096x2160 @60Hz
LAN 1x Realtek 8111H Gigabit LAN controller
Supported Storage

AMD B550 Chipset

6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x Clear CMOS jumper

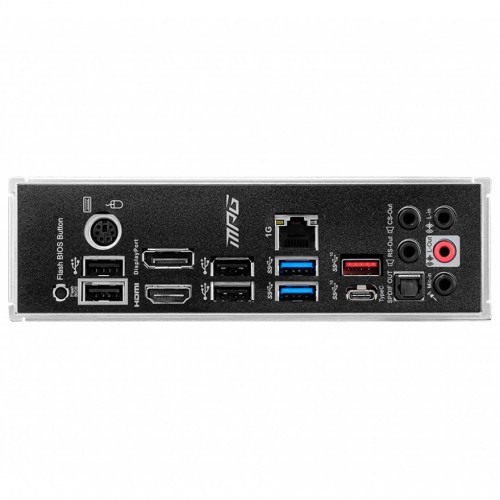

USB Port

AMD B550 Chipset

3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor

2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
TPM (Trusted Platform Module ) 1xTPM module connector
WARRANTY INFORMATION
Warranty 03 Years Warranty

Description :

MSI MPG B550 Gaming Plus AM4 ATX Motherboard

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real-time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
