| BASIC INFORMATION | ||
| Form Factor | ATX Form Factor | |
| Basic Information | ||
| Chipset | AMD B550 Chipset | |
| Audio | Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Memory | ||
| Memory | Type: Dual channel memory architecture Slots: 4 x DDR4 memory slots Supported Memory: Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 /4533 /4600 /4733 /4800 /4866 /5000 /5100+ MHz by A-XMP OC MODE 1DPC 1R max speed 5100 MHZ 1DPC 2R max speed 3866 MHZ 2DPC 1R max speed 4000 MHZ 2DPC 2R max speed 3600 MHZ Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | Graphics: Supports 2-Way AMD CrossFire Technology Max Shared Memory: 16GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port, supports a maximum resolution of 4096x2160 @24Hz | |
| LAN | 1 x Realtek RTL8125B 2.5Gbps LAN controller | |
| Supported Storage | AMD B550 Chipset 6 x SATA 6Gb/s ports 2 x M.2 slots (Key M) M2-1 slot (from AMD Processor) Supports PCIe 4.0/ 3.0 x4 1 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280/ 22110 storage devices M2-2 slot (from AMD B550 chipset) Supports PCIe 3.0x4 Supports 2242/ 2260/ 2280 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 1x 4-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 4-pin RGB LED connectors 2x 3-pin RAINBOW LED connectors 1x RGB CORSAIR connector 1x Clear CMOS jumper |
|
| USB Port | 3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 8 x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 2 x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel) 2 x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

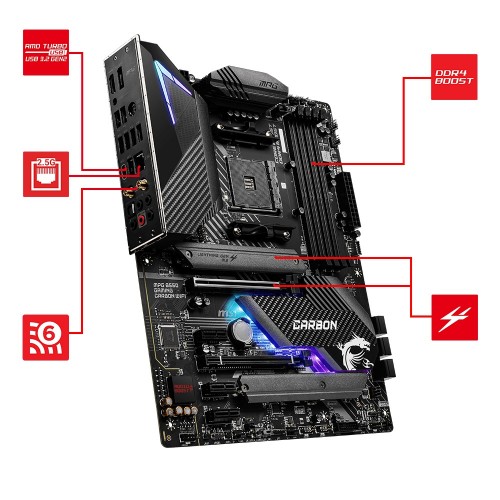

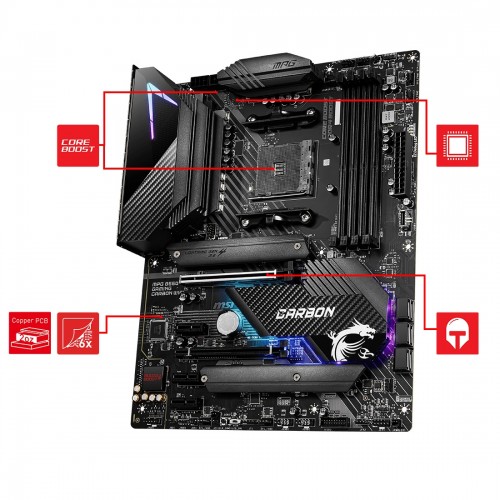

The MPG B550 brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that offers convenient in-game and real time notifications. With the MPG series, transforms user's equipment into the center of attention and top leaderboards in style. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run in full speed with MSI motherboards. World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards lets user manage speeds and temperatures for all the system and CPU fans. Total Fan Control permits user to check own primary system characteristics in a simplified graphical interface. Set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Built to support All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. It offers all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. The 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology enables all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
