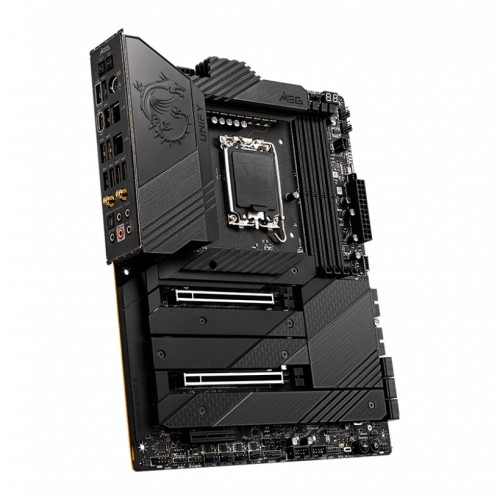

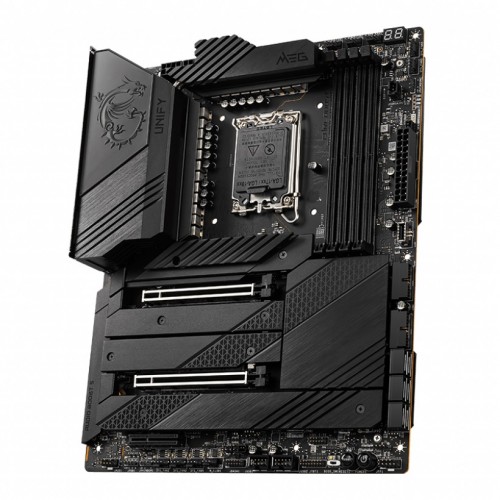

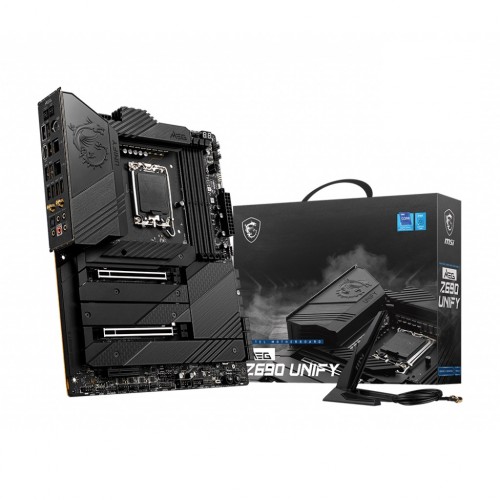

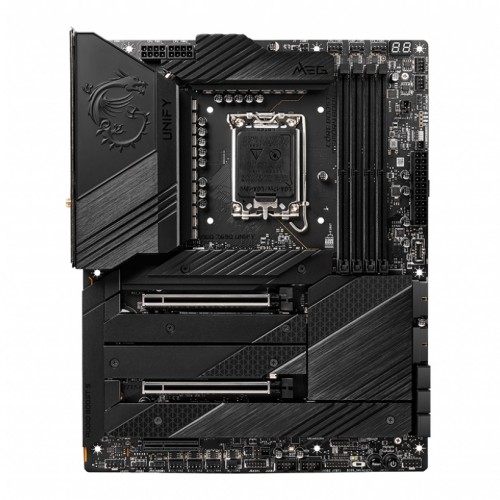

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard

ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard

Product code	7654
Brand	MSI
Product model	MEG Z690 UNIFY
Warranty	03 years
Total Reviews	Based on 0 reviews. - Write a review

Based on 0 reviews. - Write a review

TBA

Out Of Stock

Add to Wish List Compare this Product

Payment Details

Contract Numbers

Mega Offer

Messenger

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।

Basic Information
Chipset	Processor socket LGA1700
Audio	7.1-Channel High Definition Audio Supports S/PDIF output 1x Front panel audio connector
BASIC INFORMATION
Supported CPU	Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
BIOS	Flash BIOS Button
Form Factor	E-ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 27.7 cm)
Expansion Slots
PCI	3x PCIe x16 slots Supports x16/x0/x4, x8/x8/x4 PCI_E1 & PCI_E2 slots (From CPU) PCI_E1 supports up to PCIe 5.0 x16 PCI_E2 supports up to PCIe 5.0 x8 PCI_E3 1 (From Z690 chipset) Supports up to PCIe 4.0 x4
M.2 Socket	5x M.2 slots (M-Key)
Memory
Memory Type	DDR5 Supports 1R 4800 MHz (by JEDEC & POR)
Slots	4x DDR5 memory slots, supporting up to 128GB 1
Supported Memory	Max. overclocking frequency: 1DPC 1R Max speed up to 6666+ MHz 1DPC 2R Max speed up to 5600+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Maximum Memory	supporting up to 128GB
Graphics
Graphics	1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
Connector & Ports
HDMI	1x HDMI 2.1
Display Port	1x Type-C Display port, supporting a maximum resolution of 4K 60Hz
LAN	2x Intel I225V 2.5Gbps LAN controllers
Wireless	Intel Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 2, FIPS, FISMA
Supported Storage	6x SATA 6Gb/s ports (From Z690 chipset) SATA5~8 (From Z690 chipset) SATAA~B (From ASM1061) 5x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 & M2_3 slots (From Z690 chipset) M2_2 slot supports up to PCIe 4.0 x4 M2_3 slot supports up to PCIe 3.0 x4 Supports 2260/ 2280 storage devices M2_4 & M2_5 1 slots (From Z690 chipset) Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s M2_4 slot supports 2280/ 22110 storage devices M2_5 slot supports 2260/ 2280 storage devices M2_2~5 slots support Intel Optane Memory Supports Intel Smart Response Technology for Intel Core processors
Internal I/O Ports	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x USB 3.2 Gen 2x2 20Gbps Type-C ports 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 2x System panel connectors 1x Chassis Intrusion connector 1x 3-pin Water Flow connector 2x 2-pin Thermal sensor connectors 1x Tuning Controller connector

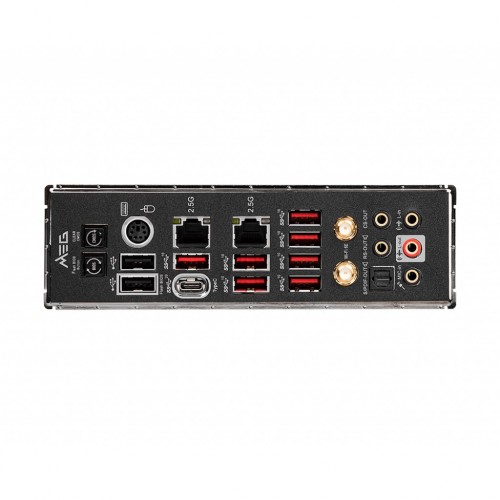

USB Port	Intel Z690 Chipset 2x USB3.2 Gen2x2 20Gbps ports (2 Type-C internal connectors) 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C port on the back panel, 3 Type-A ports on the back panel) Hub-GL3590 4x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel ASM1074 4x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector Hub-GL850G 4x USB 2.0 Type-A ports available through the internal connectors
TPM (Trusted Platform Module )	1x TPM module connector
WARRANTY INFORMATION
Warranty	3 years

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard

The MSI MEG Z690 UNIFY motherboard Supports with 12th Gen Intel Core / Pentium Celeron processors for LGA 1700 socket and DDR5 Memory, Dual Channel DDR5-6666+MHz(OC). It is combines with dedicated SMT welding process and MSI Memory Boost technology, MSI MEG Z690 UNIFY is ready to deliver the world class memory performance. This motherboard featured with Genuine 24K Gold, Premium aesthetics with its dark black finish and genuine 24K-gold foil heatsink perfectly show off the concept of beauty. the MSI Motherboard has Dual Thunderbolt 4 ports, these are Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience. In this motherboard, it comes with Quintuple M.2 Connectors. This connectors are Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. The MSI MEG Z690 UNIFY designed with Double-sided Shield Frozr, which keeps M.2 SSDs safe while preventing throttling, making them run faster. This motherboard also has Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz. The motherboard has Outstanding Cooling Solution, which designed with Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp. The new MSI MEG Z690 UNIFY designed with 8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise. Here, The Ultimate audio solution comes with latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience. The Latest MSI MEG Z690 UNIFY has 03 years warranty.

Features:

Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5-6666+MHz(OC)
Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, it is ready to deliver the world class memory performance.
Quintuple M.2 Connectors: Onboard 5x M.2 connectors for the maximum storage performance with quad Lightning Gen 4 solution. Double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: Premium digital PWM, direct 19+2 phases with 105A Smart Power Stage, Titanium Choke III and dual CPU power connectors to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
Dual 2.5G LAN with latest Wi-Fi 6E: Onboard dual 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, Front & Rear USB 3.2 Gen 2x2 20G.
8 Layer Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.

MSI MEG Z690 UNIFY 12th Gen ATX Motherboard Review:

Quick Compare

Product Details
Product	MSI MEG Z690 UNIFY 12th Gen ATX Motherboard	ASUS ROG CROSSHAIR VIII FORMULA AMD X570 ATX GAMING MOTHERBOARD	MSI MPG X670E CARBON WIFI DDR5 AMD AM5 ATX Motherboard	MSI MPG Z790 CARBON WIFI 13th and 12th Gen ATX Motherboard
Price	57,800৳	~~60,700৳~~ 58,450৳	~~69,300৳~~ 57,000৳	~~59,400৳~~ 54,000৳
Model	MEG Z690 UNIFY	CROSSHAIR VIII FORMULA AMD X570 ATX	MPG X670E CARBON WIFI	Z790 CARBON WIFI 13th and 12th
Brand	MSI	ASUS	MSI	MSI
Availability	Out Of Stock	In Stock	In Stock	In Stock
Rating	Based on 0 reviews.	Based on 2 reviews.	Based on 2 reviews.	Based on 0 reviews.

View Details

Product List

Best MSI (Intel) Motherboard Price List 2024	Price
MSI PRO H610M-G DDR4 MICRO-ATX LGA 1700 MOTHERBOARD	11,590৳ 12,200৳
MSI B560M PRO-E 10th and 11th Gen Micro ATX Motherboard	10,190৳ 11,040৳
MSI MAG B660M MORTAR WIFI DDR4 12th Gen Micro-ATX Motherboard	25,390৳ 27,600৳
MSI B560M-A PRO Intel 11th Gen mATX Motherboard	11,690৳ 12,480৳
MSI MEG Z590 ACE Gaming Intel 10th Gen and 11th Gen ATX Motherboard	53,290৳ 59,400৳
MSI H510M-A PRO Intel 10th Gen and 11th Gen Mirco-ATX Motherboard	9,650৳ 9,980৳
MSI MPG Z590M GAMING EDGE WIFI 10th and 11th Gen M-ATX Motherboard	27,500৳ 28,200৳
MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARD	24,790৳ 26,900৳
MSI PRO H610M-B DDR4 LGA 1700 Micro-ATX 12 GEN Motherboard	10,290৳ 10,800৳
MSI PRO B660M-G DDR4 MICRO-ATX 12TH GEN INTEL MOTHERBOARD	15,890৳ 16,500৳

What is the MSI MEG Z690 UNIFY 12th Gen ATX Motherboard price in bd 2024?

The MSI MEG Z690 UNIFY Motherboard price in BD is not available at this moment. We will update the price soon. The MSI MEG Z690 UNIFY Motherboard is Out Of Stock now in our store (Call us to know about details of this product). 18 customer buy this product From 3612 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order MSI MEG Z690 UNIFY online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
