| BASIC INFORMATION | ||
| Supported CPU | Supports 10th Gen Intel Core and Pentium Gold /Celeron processors for LGA 1200 socket |
|
| Form Factor | 12 in. x 10.9 in. (30.5 cm x 27.7 cm) E-ATX Form Factor |
|
| Basic Information | ||
| Chipset | Intel Z490 Chipset | |
| Audio | Realtek ALC1220 Codec + ESS E9018 combo DAC 7.1-Channel High Definition Audio Supports Optical S/PDIF output |
|
| Memory | ||
| Slots | 4 | |
| Memory | Supports 1R 2133/2666/2933 MHz 1DPC 1R Max speed up to 5000+ MHz 1DPC 2R Max speed up to 4400+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz |
|
| Graphics | ||
| Graphics | Intel JHL7540 Thunderbolt 3 Controller 2x Thunderbolt 3 (Type-C) ports on the back panel Supports Thunderbolt 3 with a maximum resolution of 5120x2880 @60 Hz Supports DisplayPort 1.4 with a maximum resolution of 4096x2304 @60 Hz |
|
| Connector & Ports | ||
| LAN | 1x Aquantia AQC107 10G LAN controller 1x Realtek RTL8125B 2.5G LAN controller |
|
| Supported Storage | Intel Z490 Chipset 6x SATA 6Gb/s ports 3x M.2 slots (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 3x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 8x 4-pin system fan connectors 1x 3-pin Water Flow connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 2x 2-pin Thermal Sensors connectors 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin CORSAIR LED connector |
|

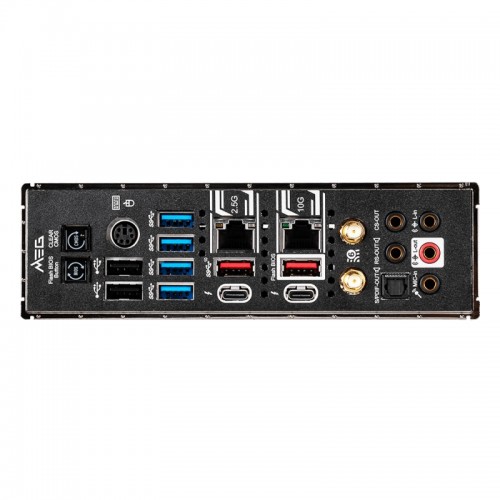

| USB Port | Intel Z490 Chipset 3x USB 3.2 Gen 2 10Gbps ports (2 Type-A ports on the back panel, 1 Type-C internal connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) ASMedia ASM1074 Chipset 8x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 4 ports through the internal USB 3.2 Gen 1 5Gbps connectors) Intel JHL7540 Thunderbolt 3 Controller 2x USB 3.2 Gen 2 10Gbps Type-C ports on the back panel Intel JHL7540 Thunderbolt 3 Controller 2x Thunderbolt 3 (USB Type-C) ports on the back panel Supports up to 40 Gbps transfer rate with Thunderbolt 3 devices Supports up to 10 Gbps transfer rate with USB 3.2 Gen 2 10Gbps devices Supports up to 5V/3A , 15W power charging Supports Daisy-chain up to six ThunderboltTM 3 devices |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years Warranty | |
The MEG series seeks to transcend current gaming products, the flagship model designed to push the limits of what an extreme gaming series can be. Combining the strengths of our existing arsenal with new innovative technology; this results in significant improvements in operational and gaming efficiency. With the MEG series, take complete control of performance and personalization with the ultimate gaming series for enthusiasts who want it all. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill, and many more to optimize memory modules, configurations, and even improve overclocking. MSI MEG Z490 GODLIKE features high-bandwidth and low-latency onboard 10G Super LAN plus 2.5G LAN for power users, provide incredible data transfer speed faster than ever before. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive for your applications, giving you the best online experience with low latency.
