| BASIC INFORMATION | ||
| Supported CPU | Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold, and Celeron Processors |
|
| Form Factor | mATX |
|
| Basic Information | ||
| Chipset | INTEL B760 | |
| Audio | Realtek ALC897 Codec |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot |
|
| Memory | ||
| Memory Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) |
|
| Maximum Memory | 128GB | |
| Storage | 2x M.2 |
|
| Graphics | ||
| Graphics | 1x HDMI |
|

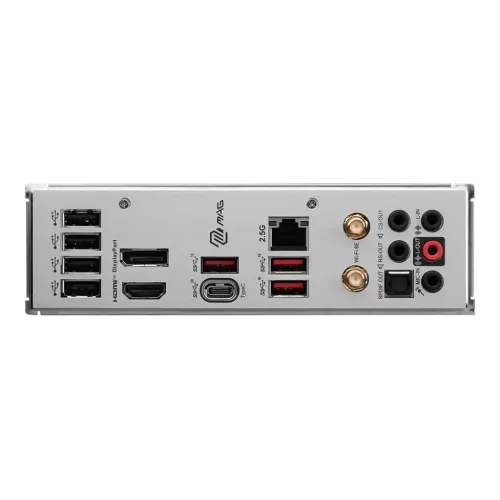

| Connector & Ports | ||
| HDMI | 1x HDMI | |
| LAN | Realtek 2.5Gbps LAN | |
| Wireless | Intel Wi-Fi 6E |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
|
| USB Port | 4x USB 2.0 (Rear) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

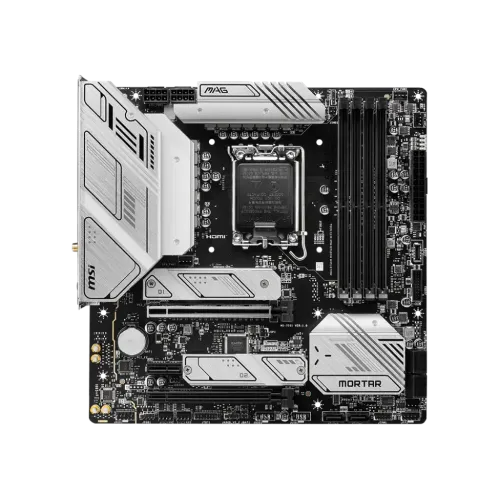

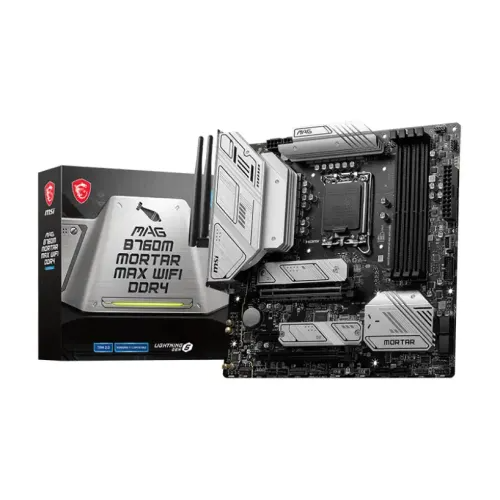

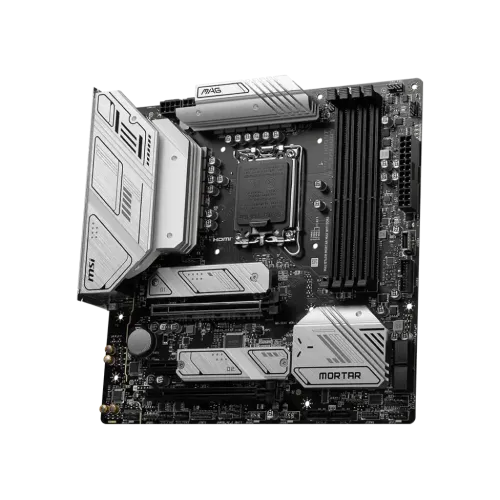

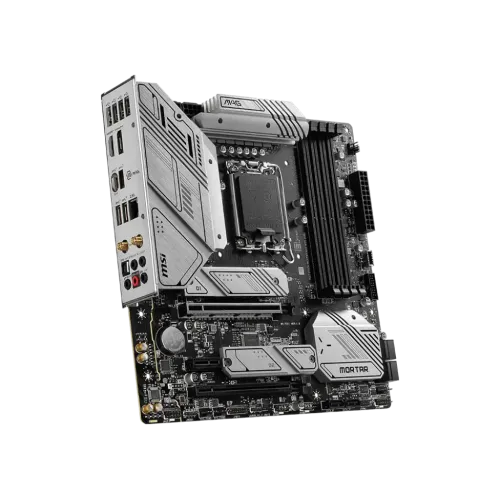

The MSI MAG B760M MORTAR MAX WIFI DDR4 motherboard is an excellent choice for both gamers and power users. It supports Intel Core processors from the 14th 12th and 13th generations, as well as Pentium Gold and Celeron CPUs for the LGA 1700 socket. This motherboard also supports DDR4 memory, which can be overclocked to rates of up to 5333 (OC) MHz. This motherboard's upgraded power architecture is a crucial feature, with a 12+1+1 duet rail power system, two 8-pin CPU power connections, Core Boost, and Memory Boost. These characteristics guarantee that the motherboard can easily manage high-performance processing needs. The 14th Gen Motherboard delivers a lightning-fast gaming experience for gamers. It has a PCIe 5.0 slot, a Lightning Gen 4 x4 M.2 slot, and a USB 3.2 Gen 2x2 port for quick data transmission and connection. This motherboard has a premium thermal solution, which incorporates an expanded heatsink design and M.2 Shield Frozr to avoid overheating. Its design assures that the system can operate at peak performance for extended periods without failure. The MSI MAG B760M MORTAR MAX WIFI DDR4 motherboard also has an audio boost for studio-quality sound and a high-quality PCB constructed with 2oz thicker copper and server-grade level material. These qualities ensure that the motherboard is long-lasting and sturdy. This MSI MAG B760M MORTAR MAX WIFI DDR4 motherboard is a strong and efficient choice for individuals looking for a high-performance system with quick connectivity and excellent audio quality.
