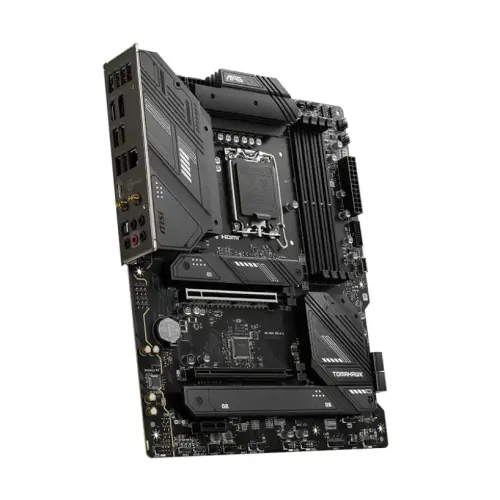

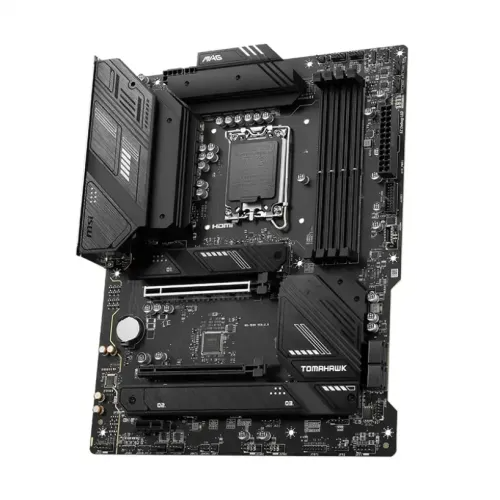

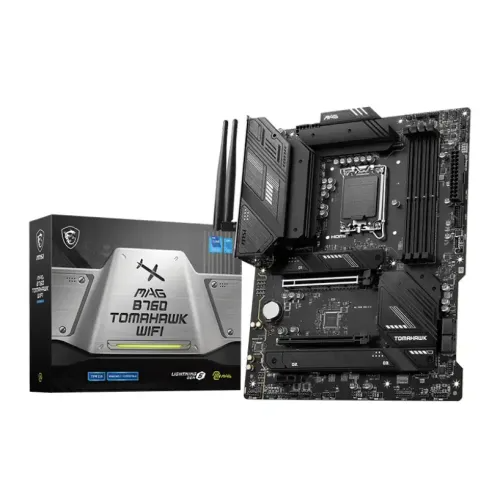

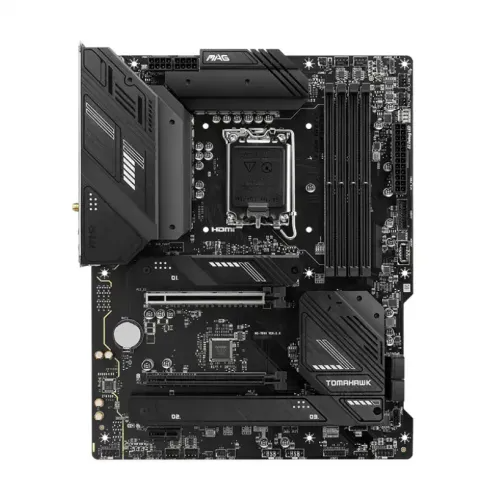

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

MSI MAG B760 TOMAHAWK WIFI Motherboard supports 14th/13th/ 12th Gen Intel Core, Pentium Gold, and Celeron processors for LGA 1700 socket. It comes with four dual-channel RAM slots, and three M.2 slots allowing you to take advantage of the full power of 13th & 12th generation Intel processors. The Six SATA III ports allow users to create large storage drive arrays for large file libraries. Two PCIe x16 and one PCIe x1 slot allow you to install high-end graphics cards and other expansion cards. Connect to a wireless network with Wi-Fi 6 (802.11ax) technology, or make a wired connection with the integrated 2.5 Gigabit Ethernet port. Resource-demanding peripherals such as storage drives can be connected to the USB 3.2 Gen 2 and Gen 2x2 ports to quickly transfer data with enhanced speeds. USB 2.0 ports are also available for lower-powered devices such as mice and keyboards. Wireless peripherals such as headphones and controllers can be connected thanks to integrated Bluetooth 5.3 technology. This motherboard is compatible with both Windows 10 and Windows 11 (64-Bit).

Enhanced Power Design

14th Gen Motherboard is designed for gamers and enthusiasts, with a 12+1+1 dual rail power system and 8+8 pin power connectors to support the Core Boost technology, which boosts the performance of your multi-core Intel processor. Overclock your CPU with ease thanks to MSI Game Boost technology, which allows for 1-second rapid overclocking. The Digital Power Design, Overvoltage Protection, Load-Line Calibration, Double Power Connectors, and Supplemental PCIe Power Connectors on the motherboard all work together to provide proper electrical management through your system to stabilize your system, especially under high loads.

Premium Thermal Solution

The MSI MAG B760 TOMAHAWK WIFI Motherboard features Extended Heatsink Design and M.2 Shield Frozr and is designed for high-performance systems and continuous operation. This motherboard's increased cooling capabilities will keep your components working at optimal temperatures. M.2 Shield Frozr, Fully Fan Control, Frozr AI Cooling, and System Cooling all work together to keep your components cool even while under high loads when gaming or generating content.

High-Quality PCB for Enhanced Protection

The MSI MAG B760 TOMAHAWK WIFI 14th Gen Motherboard features a PCB optimized for higher bandwidth and faster transfer speeds, as well as reliable circuit transmission with 2oz thickened copper that allows the motherboard to easily withstand overclocking while improving heat dissipation and system reliability. The MSI PCI Express Steel Armor slot is soldered to the motherboard to handle the weight of large graphics cards and avoid GPU droop, which can damage PCIe slots. The grounding layer around the mounting holes is doubled for double ESD protection, preventing static discharge spikes from damaging the motherboard.

7.1-Channel USB High-Performance Audio

The MSI MAG B760 TOMAHAWK WIFI Motherboard includes the Realtek ALC897 Codec as well as 7.1-Channel USB High-Performance Audio. Immerse yourself in your favorite media with Audio Boost technology, which includes high-quality audio capacitors, 3.5mm audio connectors with S/SPDIF, and a dedicated high-definition audio processor. The printed circuit board isolates audio layers for clear left and right channels, as well as isolating audio circuits to reduce crossover talk and electrical interference. To protect your ears, de-pop protection eliminates the popping sound caused by plugging or unplugging audio devices.

Lightning Fast Connectivity

Connect to your network wirelessly using Wi-Fi 6 (802.11ax) technology, which provides faster wireless rates and efficiency, making it ideal for uploading and downloading large files. This motherboard also has a 2.5 Gigabit Ethernet connection for wired networking. MSI's LAN Manager software prioritizes your connection, eliminating lag and maintaining a pleasant online experience.
