| BASIC INFORMATION | ||
| Supported CPU | Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors Processor socket LGA1700 |
|
| Form Factor | 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) | |
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek® ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|
| Memory | ||
| Slots | 2x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 4.0 x16 PCI_E3 slot (From B660 Chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot |
|
| Memory | 4x DDR4 memory slots, support up to 128GB 1 Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 4800+ MHz 1DPC 2R Max speed up to 4000+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 3600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP) |
|
| Graphics | ||
| Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz |
|
| Connector & Ports | ||
| HDMI | HDMI 2.1 Port | |
| LAN | 2.5G LAN Port | |
| Supported Storage | 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset) 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061) 2x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_2 slot (From B660 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel® Optane™ Memory |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C connector 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x TBT connector (supports RTD3) 1x Tuning Controller connector |
|

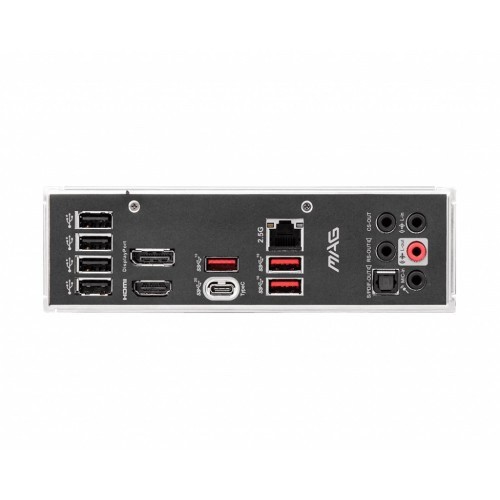

| USB Port | 1x USB 3.2 Gen2x2 20Gbps Type-C port on the back panel 1x USB 3.2 Gen 2 10Gbps Type-C port available through the internal connector 2x USB 3.2 Gen 1 5Gbps ports available through the internal connector 4x USB 2.0 ports on the back panel USB Hub-GL3590 3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel USB Hub-GL850G 4x USB 2.0 ports available through internal connectors |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

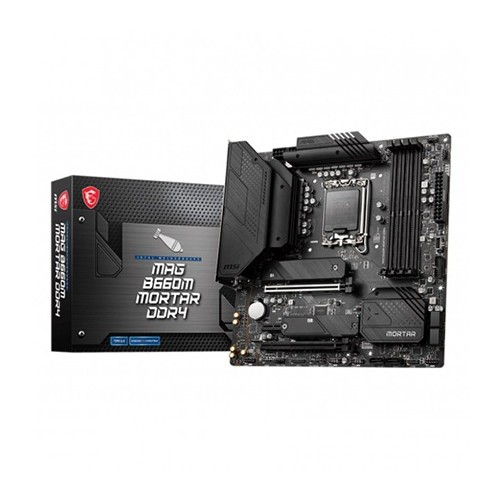

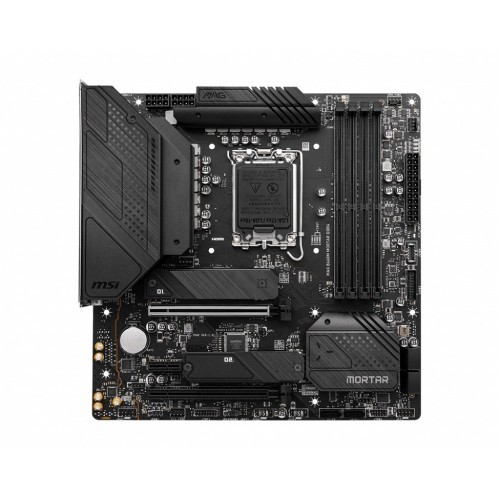

The MSI MAG B660M Mortar DDR4 Motherboard supports 12th Generation Intel Core, Pentium Gold, and Celeron CPUs for the LGA 1700 socket,DDR4 Memory up to 4800+(OC) rate. This motherboard has Premium Thermal resolution,which includes Extended Heatsink style and M.2 protect Frozr forhigh-performance systems and non-stop operation, in addition as two.5G LAN forupgraded network solutions for skilled and transmission applications.Provides a network association that's safe, dependable, and speedy. The MSI B660 Mortar DDR4 motherboards provide the latest Lightning info four M.2, the quickest aboardstorage possibility on the market with up to sixty four Gb/s transfer speed, and square measure hopped-upby twelfth info Intel processors. This motherboard options Lightning M.2, whichhelps to maximise performance for NVMe-based SSDs once running at PCIe info four.It additionally options a inbuilt USB three.2 info twox 2 port with a transmission speed of 20 Gbps, that is 4X quicker than USB three.2 info one and Steel armor PCIe slots. AMD Crossfire is supported. The MSI MAG B660M Mortar DDR4 Motherboard is roofed bya three-year guaranty.
