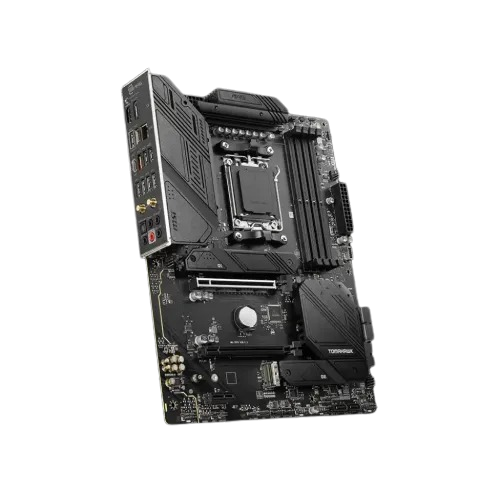

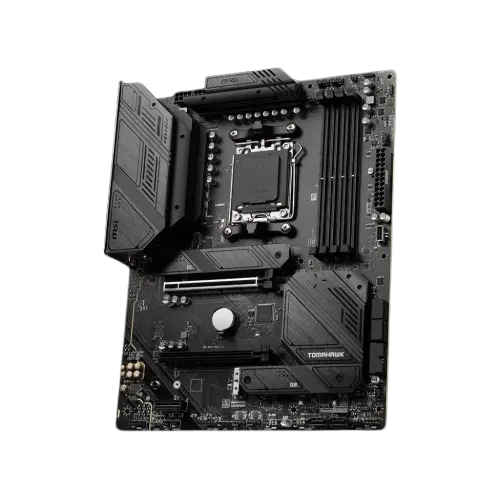

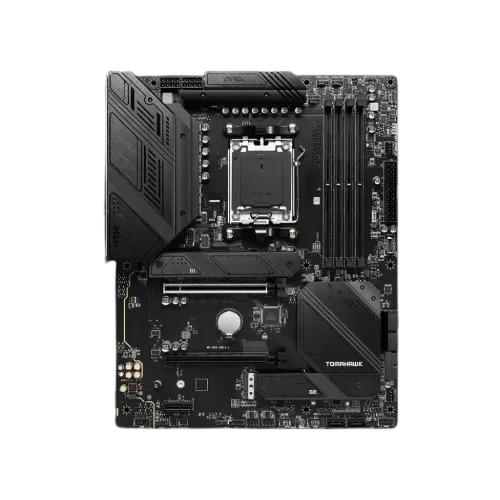

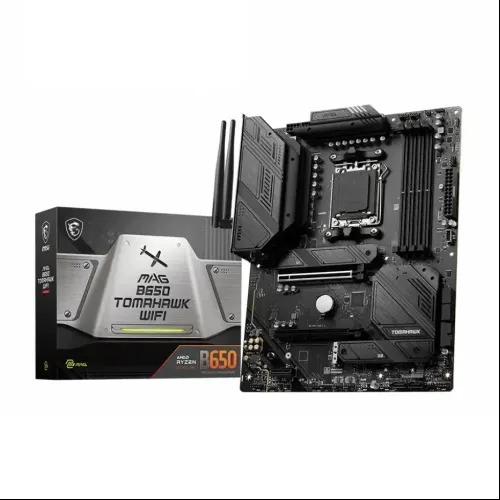

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
  • MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
  • MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
  • MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard
  • MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

Price: 30,490à§³ 31,500à§³
Status: In Stock
Product Code: 10383
Brand: MSI
Key Features
  • Model: MAG B650 TOMAHAWK WIFI
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 6400+(OC) MHz
  • Graphics Output: 1x HDMI, 1x Display Port
  • Features: 2.5G LAN and Intel Wi-Fi 6E Solution
View More Info

Payment Options

Quantity :

Specification:

BASIC INFORMATION
Supported CPU Supports AMD Ryzen 7000 Series Desktop Processors

Socket AM5
Chipset AMD B650
Form Factor ATX

243.84mmx304.8mm
Audio Realtek ALC4080 Codec

7.1-Channel High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel
Expansion Slots
PCI 2x PCI-E x16 slot

Support x16/ x4

1x PCI-E x1 slot

PCI_E1 PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 PCIe 4.0 supports up to x4 (From Chipset)

PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)

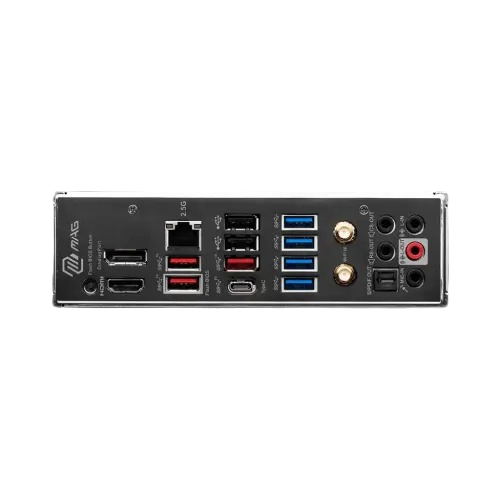

Ports, Connectors & Slots
USB (s) 2x USB 2.0 (Rear)

4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Rear)

2x USB 3.2 Gen1 Type A (Front)

3x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Front)

1x USB 3.2 Gen2x2 Type C (Rear)
Memory
Memory Type DDR5
Slots 4 DIMMs
Supported Memory Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Maximum Memory 128GB
Graphics
Graphics 1x HDMI

1x DisplayPort

Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz

Support DP 1.4, maximum resolution of 8K 60Hz
Connector & Ports
HDMI 1x HDMI
Display Port 1x DisplayPort
LAN Realtek RTL8125B 2.5Gbps LAN
RAID Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
Supported Storage 3x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

6x SATA 6G port
Internal I/O Ports 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x CPU Fan

1x Pump Fan

6x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

2x RGB LED connector(JRGB)

4x USB 2.0

2x USB 3.2 Gen1 Type A

1x USB 3.2 Gen2 Type C
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
Others
Special Features 4x EZ Debug LED
WARRANTY INFORMATION
Warranty 3 Years

Description :

MSI MAG B650 TOMAHAWK WIFI DDR5 AMD AM5 ATX Motherboard

The MSI MAG B650 TOMAHAWK WIFI Motherboard supports AMD's Ryzen 7000-series processors with up to 16 Zen 4 cores as well as dual-channel DDR5 memory, with a Maximum Memory Capacity of up to 128GB and a bus speed of up to 6400+(OC) MHz. It features a Core Boost technology that combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supports multi-core CPUs, but also creates the perfect conditions for your CPU overclocking. It has an extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and a Double-sided M.2 Shield Frozr built for a high-performance system and a non-stop gaming experience. The is made of a 6-layer PCB made of 2oz thickened copper and server-grade level material. It can deliver a lightning-fast game experience with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster. The rear I/O panel now offers easy ways of directly entering the safe boot, a one-click toggle for all RGB lights, and directly activating Turbo mode. The MSI MAG B650 TOMAHAWK WIFI offers you ample connectivity options, giving you seven USB-A 3.2 Gen 1 and 2 ports with data transfer speeds up to 5 and 10 Gb/s, respectfully, suitable for a wide range of peripherals such as capture cards, microphones, and more. A single USB-C 3.2 Gen 2x2 port offers up to 20 Gb/s speeds, suitable for audio arrays. The MAG B650 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C. The MSI MAG B650 TOMAHAWK WIFI comes with 3 years of warranty.
