MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard

MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।
MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard
Product code
4549
Brand
MSI
Product model MSI MAG B560 Tomahawk
Warranty 03 years
Total Reviews

TBA

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset Intel B560 Chipset
Audio 7.1-Channel High Definition Audio
Supports S/PDIF output
BASIC INFORMATION
Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold and Celeron
Processor socket LGA1200
Form Factor ATX
Memory
Slots 4 x DDR4 memory slots
Memory - Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR)
- Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) - Max overclocking frequency:
- 1DPC 1R Max speed up to 5066 MHz
- 1DPC 2R Max speed up to 4600+ MHz
- 2DPC 1R Max speed up to 4266+ MHz
- 2DPC 2R Max speed up to 4000+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports Intel Extreme Memory Profile (XMP)
Storage - 6x SATA 6Gb/s ports (from B560 chipset) 1
- 3x M.2 slots (Key M)
- M2_1 slot (from CPU)
- Available only on 11th Gen Intel CPU
- Supports up to PCIe 4.0 x4
- Supports 2242/ 2260/ 2280/ 22110 storage devices
-M2_21 slot (from B560 chipset)
- Supports up to PCIe 3.0 x4
- Supports SATA up to 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
- M2_3 slot (from B560 chipset)
- Supports up to PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- Intel Optane Memory Ready2
- Supports Intel Smart Response Technology for Intel Core processors
Graphics
Graphics 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
Connector & Ports
LAN 1x Realtek RTL8125B 2.5Gbps LAN controller
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin PCIE power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TBT connector (supports RTD3)
1x Tuning Controller connector

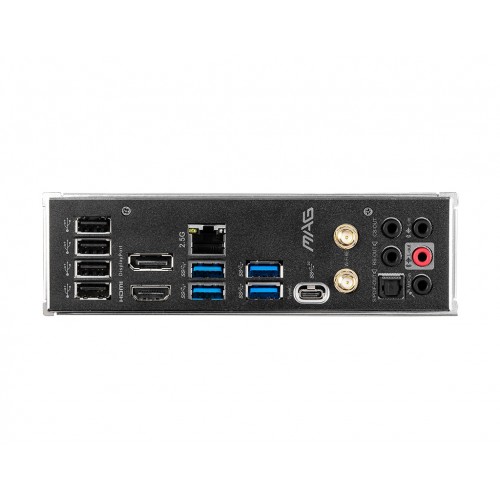

USB Port - 1x USB3.2 Gen 2x2 20Gbps port (Type-C port on the back panel) - 1x USB 3.2 Gen 2 10Gbps port (1 Type-C available through the internal connector) - 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)
- 4x USB 2.0 ports on the back panel
Hub-GL850G
- 4x USB 2.0 ports available through the internal connectors
WARRANTY INFORMATION
Warranty 03 years warranty

MSI MAG B560 Tomahawk WiFi Intel 10th Gen and 11th Gen ATX Motherboard

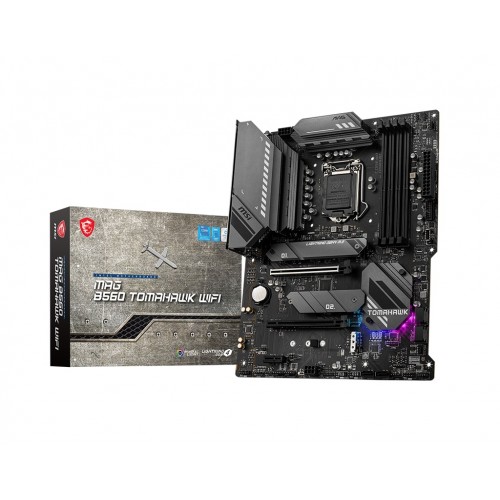

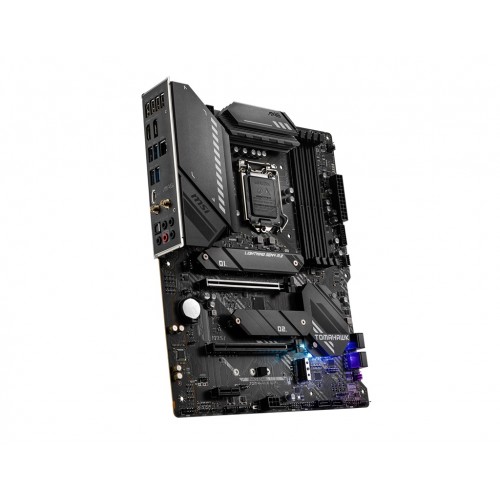

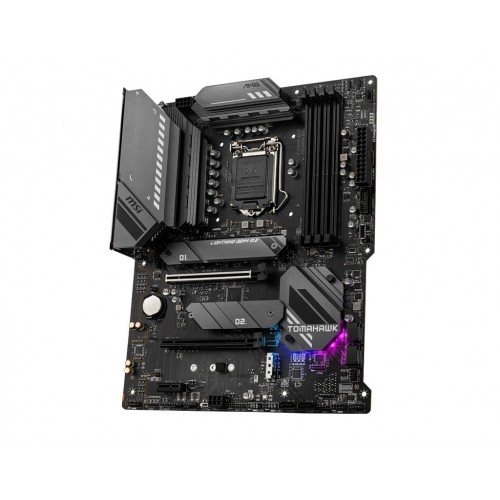

MSI MAG B560 Tomahawk WiFi ATX Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066(OC) MHz, Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs, Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works. This MSI MAG B560 Tomahawk WiFi  Motherboard comes with 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection and it is Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C, Audio Boost: Reward your ears with studio grade sound quality, Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire. This MSI MAG B560 Tomahawk WiFi Motherboard comes with more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end Intel CPU to run in full speed with MSI motherboards. Here, Utilizing 11th Gen Intel processors, MSI B560 motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. The 2.5Gbps LAN ports provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.


Features:

  • Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
  • Supports DDR4 Memory, up to 5066(OC) MHz
  • Lightning M.2: Running at PCIe Gen4 x4 maximizes performance for NVMe based SSDs
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning USB 20G: Powered by USB 3.2 Gen2x2 controller, offering never before seen USB speeds up to 20Gb/s with USB Type-C
  • Audio Boost: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel armor PCIe slots. Supports 2-Way AMD Crossfire™
