About MSI GeForce RTX 5070 Ti 16G VENTUS 3X PZ

The MSI GeForce RTX 5070 Ti 16G VENTUS 3X PZ is a revolutionary entry in the Blackwell generation, serving as MSI’s flagship for the "Project Zero" (PZ) initiative. This card is designed for enthusiasts who prioritize a "cable-less" aesthetic, moving power connectors to the back of the PCB to eliminate visible clutter in modern PC builds.

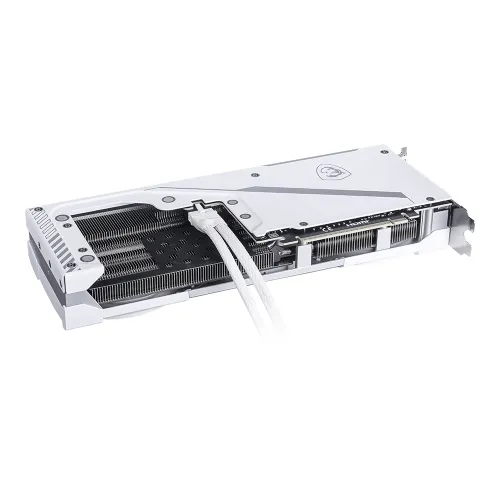

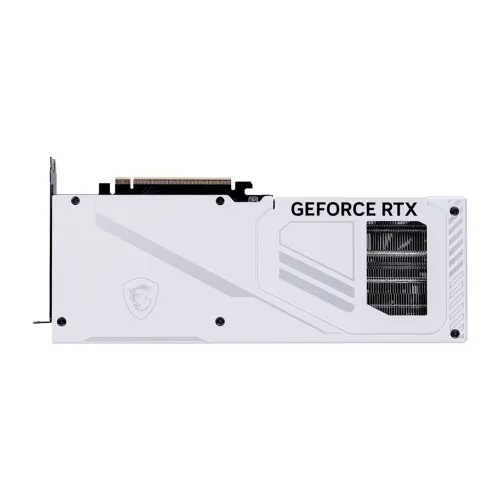

The "PZ" designation stands for Project Zero, a design philosophy that hides the 16-pin (12VHPWR) power connector on the underside or rear of the card. When paired with a compatible back-connect motherboard (like MSI’s Project Zero series), the power cables are routed directly through the back of the case, resulting in a completely wireless look through the tempered glass. To further this clean aesthetic, it features a Metal Magnetic Backplate, which provides structural rigidity while being easy to remove for maintenance.

Built on the NVIDIA Blackwell GB203 architecture, the card features 8,960 CUDA cores. This model is a massive upgrade over its predecessor, moving to 16GB of ultra-fast GDDR7 memory. Operating at 28 Gbps on a 256-bit bus, it delivers a staggering 896 GB/s of bandwidth. The OC edition offers a boost clock of 2482 MHz, which can be cranked to 2497 MHz via MSI Center, making it a 1440p and 4K powerhouse.

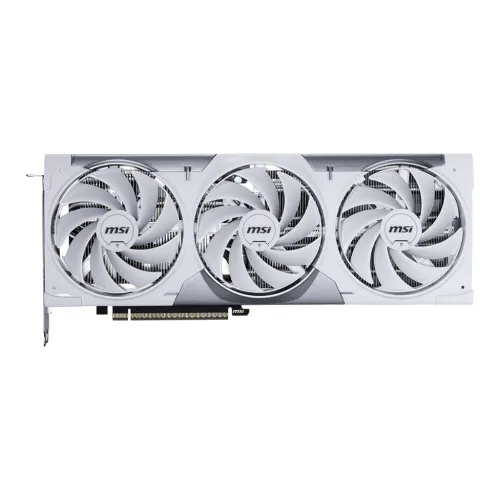

Despite its focus on aesthetics, the thermal solution remains top-tier with the VENTUS 3X system:

TORX Fan 5.0: Linked fan blades maintain high static pressure even at lower RPMs.

Nickel-plated Copper Baseplate: Quickly captures heat from the GPU and VRAM, transferring it to precision-machined "Core Pipes."

Zero Frozr: Fans stay idle during light workloads for absolute silence.

The card has a 300W TDP and requires a 750W PSU (ATX 3.1 recommended). Measuring 303 x 121 x 49 mm, it occupies 2.5 slots, fitting comfortably in most modern mid-towers.
