| BASIC INFORMATION | ||
| Feature | MSI Center lets you monitor, tweak, and optimize MSI products in real-time easily Afterburner gives full control with the world’s most popular GPU overclocking software |
|

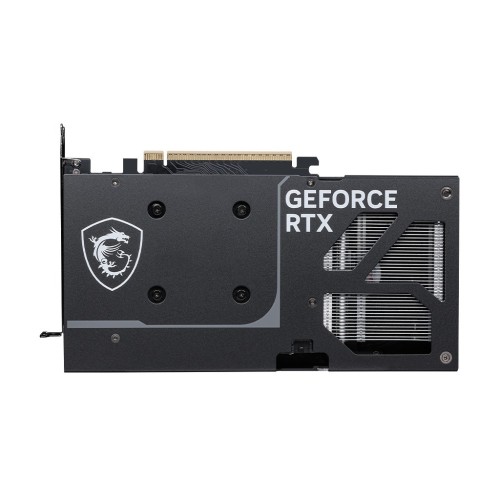

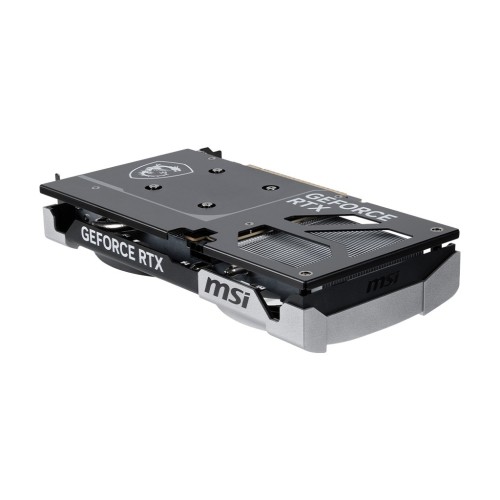

| Material | Metal backplate with vents and thermal pads boosts cooling efficiency | |
| Basic Information | ||
| Others | STORMFORCE Fan: Seven blades with claw texturing for optimal airflow and minimal noise | |
| Type | 16GB GDDR7 | |
| Key Features | ||
| Performance | Extreme Performance: 2587 MHz (MSI Center) Boost: 2572 MHz (GAMING & SILENT Mode) |
|
| Speed | Memory Speed 28 Gbps | |
| Interface | ||
| Display Port | DisplayPort x 3 (v2.1b) | |
| HDMI | HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) | |
| Temperature | ||
| Temperature | Heat pipes efficiently transfer heat from the GPU, enhancing overall cooling performance | |

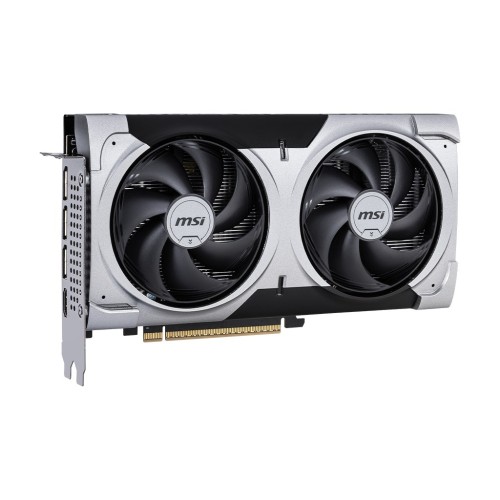

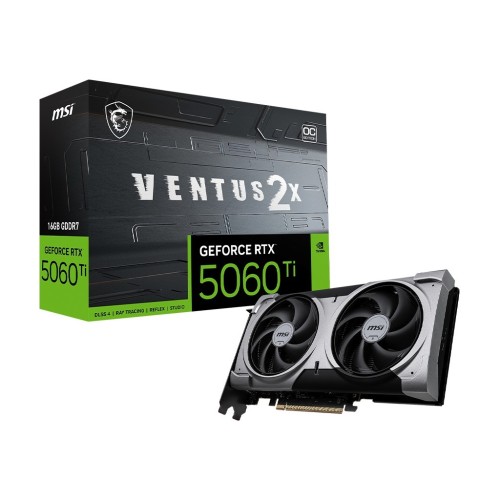

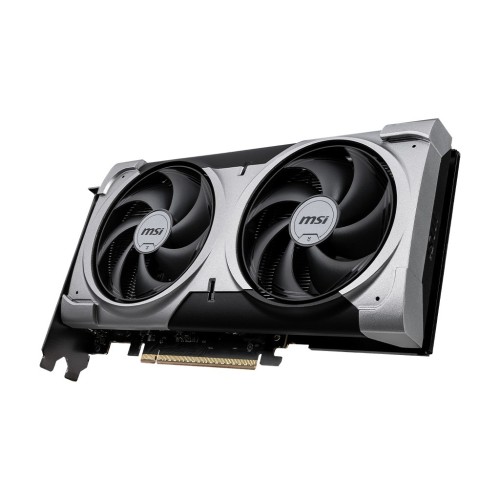

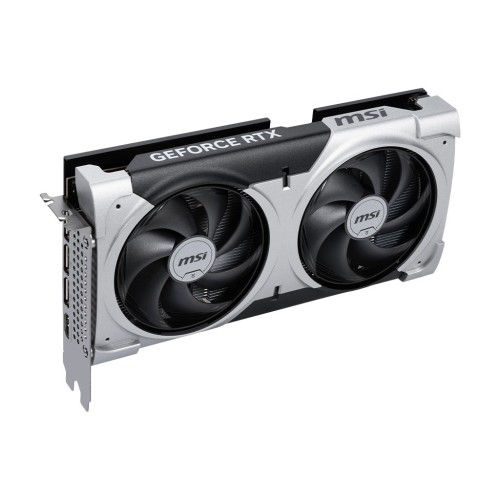

MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS GDDR7 Graphics Card
The MSI GeForce RTX 5060 Ti 16G VENTUS 2X OC PLUS is a newly released mid-range graphics card from MSI, part of NVIDIA’s RTX 50-series lineup. This model features a compact dual-fan design, making it suitable for smaller PC builds, while offering robust performance for 1440p gaming and creative workloads.
Key Specifications
GPU Architecture: NVIDIA Blackwell (GB206-300)
CUDA Cores: 4,608
Memory: 16GB GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-bit
Boost Clock: Up to 2,617 MHz (Extreme Performance via MSI Center)
Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b (supports up to 8K@120Hz with DSC)
Power Consumption: 180W (requires 1x 8-pin connector)
Recommended PSU: 600W
Maximum Resolution: 7680 x 4320
Features: DLSS 4, Ray Tracing, PCIe 5.0 support
Cooling: Dual TORX Fan 5.0 with optimized airflow
Software: MSI Center for performance tuning
