| Basic Information | ||
| Power | Power connectors: 16-pin x 1 | |
| Basic Information | ||
| Resolution | 7680 x 4320 | |
| BASIC INFORMATION | ||
| Memory | 16GB GDDR7 | |
| Video Memory Specifications | ||
| Core Clock | Extreme Performance: 2662 MHz (MSI Center) Boost: 2647 MHz |
|
| Memory Bus (Bit) | 128-bit | |
| CUDA Cores (Nvidia) | 4608 Units | |
| Features | ||
| Dimension | 300 x 125 x 44 mm | |
| Interface | PCI Express® Gen 5 x16 (uses x8) | |
| Weight | 844 g / 1384 g | |
| Output | ||
| Output | DisplayPort x 3 (v2.1b) HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
|
| Power Specifications | ||
| Power Consumption | 180 W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 Ultimate | |
| Physical Specification | ||
| Recommended PSU | 600 W | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

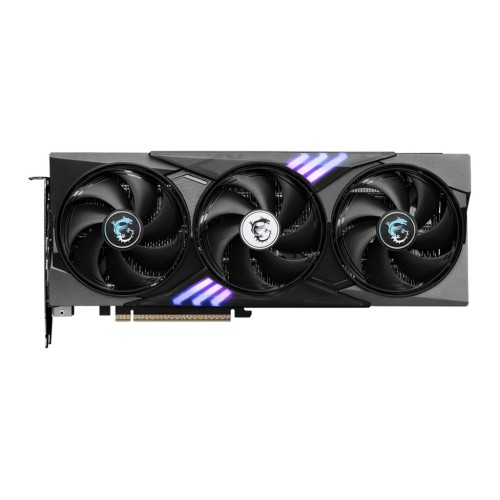

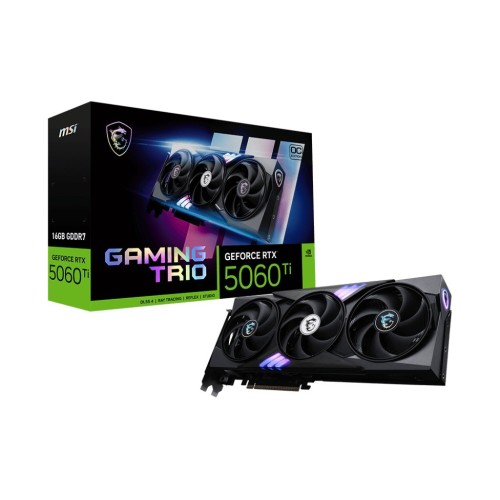

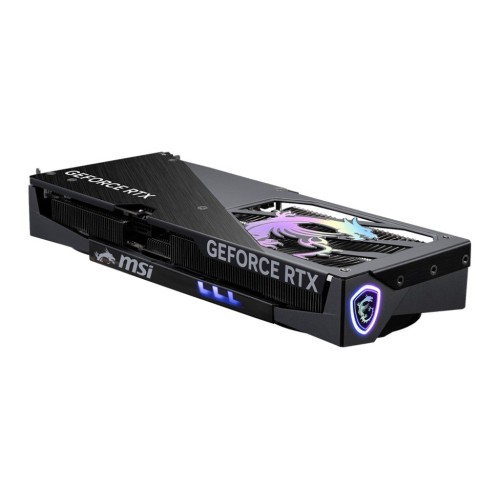

MSI GeForce RTX 5060 Ti 16G GDDR7 GAMING TRIO OC Graphics Card
The MSI GeForce RTX 5060 Ti 16G GAMING TRIO OC is a high-performance graphics card designed for gamers and content creators seeking advanced features and robust performance.
Key Specifications
GPU Architecture: NVIDIA Blackwell (GB206)
CUDA Cores: 4,608
Boost Clock: 2,647 MHz (up to 2,662 MHz via MSI Center)
Memory: 16GB GDDR7, 128-bit interface, 28 Gbps
Memory Bandwidth: 448 GB/s
Interface: PCIe 5.0 x8
TDP: 180W
Power Connector: 1x 16-pin (12VHPWR)
Recommended PSU: 600W

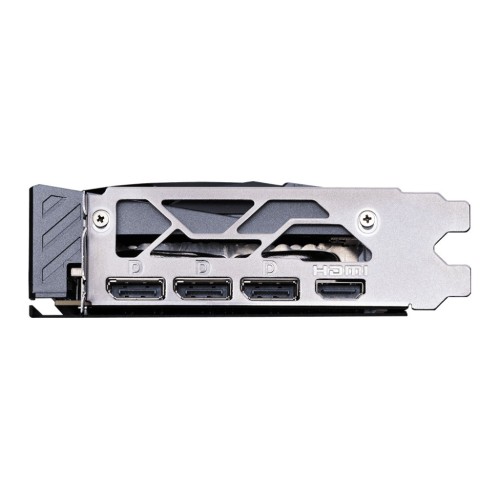

Display Outputs: 3x DisplayPort 2.1b, 1x HDMI 2.1b
Max Resolution: 7680 x 4320 (8K)
Dimensions: 300 x 125 x 44 mm

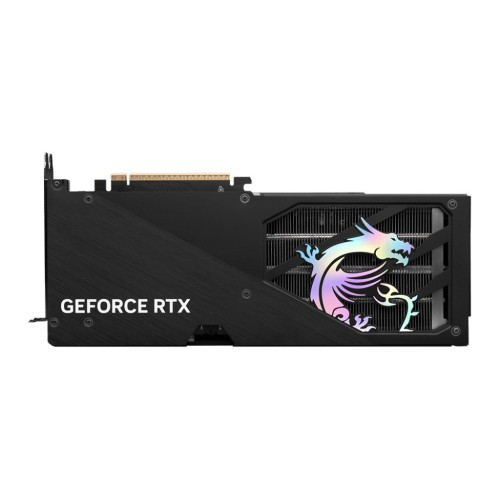

Cooling System: TRI FROZR 4 with STORMFORCE fans, nickel-plated copper baseplate, and metal backplate
Software Support: MSI Center and Afterburner for monitoring and overclocking
