| Video Memory Specifications | ||
| Card Size | 305 x 120 x 57 mm | |
| Memory Size | 12GB | |
| Memory Type | GDDR6X | |
| Resolution | 7680 x 4320 | |
| Core Clock | Boost: 1695 MHz | |
| Memory Bus (Bit) | 384-bit | |
| INTERFACE | PCI Express Gen 4 | |
| Memory Clock | 1695 MHz | |
| Memory Bandwidth (GB/sec) | 19 Gbps | |
| Power Specifications | ||
| Power Consumption | 350 W | |
| Power Connector (Pin) | 8-pin x 2 | |
| Recommended Power Supply | 750 W | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| OpenGL | 4.6 | |
| DirectX | 12 API | |
| WARRANTY INFORMATION | ||
| Warranty | 2 years | |

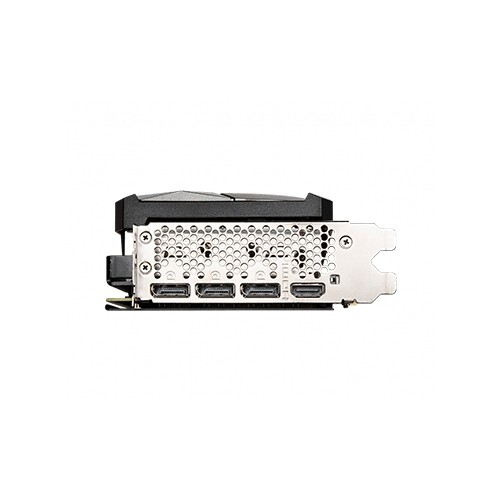

Based on the Ampere architecture and designed to handle the graphical demands of 4K gaming and 1440p at high frame rates, the MSI GeForce RTX 3080 Ti VENTUS 3X Graphics Card brings the power of real-time ray tracing and AI to your PC games. The Ampere architecture features 2nd Gen RT Cores and 3rd Gen Tensor Cores. The GPU features 12GB of GDDR6X VRAM and a 384-bit memory interface, offering improved performance and power efficiency over the previous Turing-based generation. The front panel of the card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60fps, 4K @ 120fps, and even up to 10K. The RTX 3080 Ti is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 10240 cores to accelerate tasks using CUDA and other APIs.

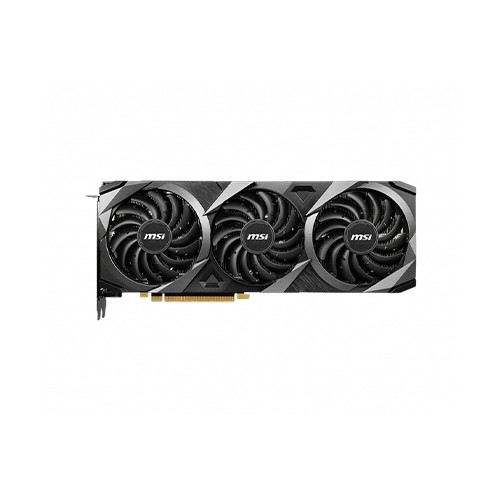

For cooling, MSI implemented triple TORX 3.0 fans, which maximizes downwards airflow and air dispersion to the heat sink below them. This GPU also utilizes MSI ZeroFrozr technology to eliminate fan noise by stopping the fans in low-load situations.
NVIDIA Ampere Architecture
NVIDIA Ampere is the 2nd generation RTX architecture. It features up to twice the FP32 throughput, 2nd Gen RT Core throughput, and 3rd Gen Tensor Core throughput of the previous generation. It also features a Samsung 8N custom process and utilizes GDDR6X VRAM.
Real-Time Ray Tracing
The NVIDIA GeForce RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination.
DLSS
NVIDIA DLSS (Deep Learning Super Sampling) is AI rendering that boosts frame rates while still providing optimal image quality using the dedicated AI processing Tensor Cores on the GeForce RTX platform. This gives you the performance you need to maximize ray tracing settings and resolutions for an immersive visual experience.
HDMI 2.1
The HDMI 2.1 interface provides increased bandwidth, allowing a single cable to output to 8K HDR TVs for ultra-high-resolution gaming.
