| BASIC INFORMATION | ||
| Supported CPU | Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B650 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 Codec 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot |
|
| Memory | ||
| Memory Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1x HDMI |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| LAN | Realtek 8125BG 2.5G LAN | |
| Wireless | AMD Wi-Fi 6E |
|
| RAID | Supports RAID 0, RAID 1 and RAID 1 for SATA storage devices |
|
| Supported Storage | 2x M.2 |
|
| Internal I/O Ports | 1x Power Connector(ATX_PWR) |
|
| USB Port | 4x USB 2.0 (Front) |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| Others | ||
| Special Features | 4x EZ Debug LED | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

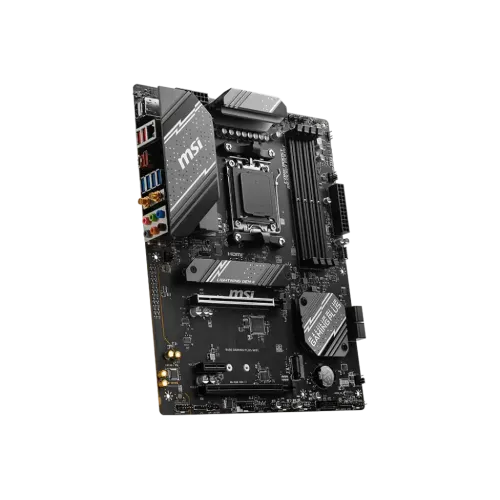

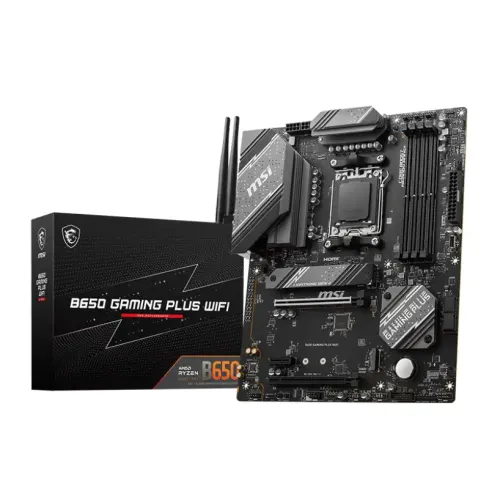

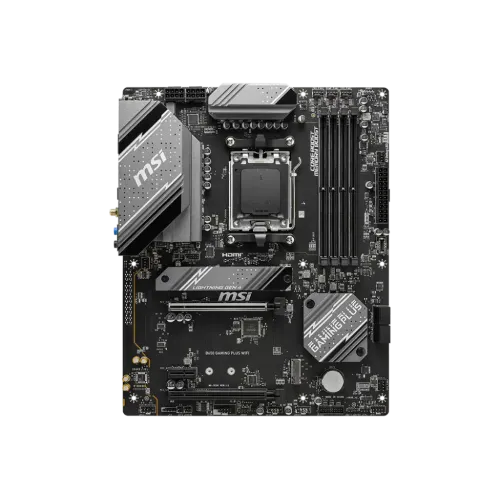

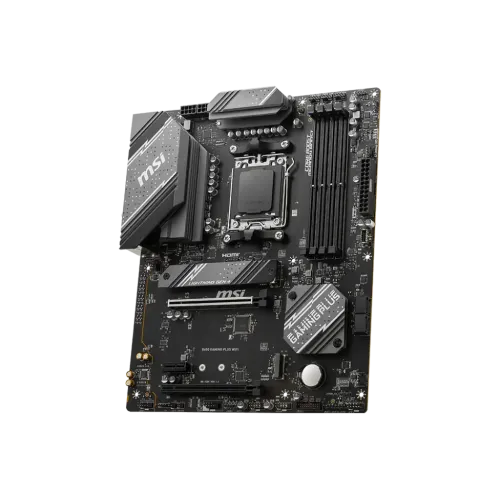

The MSI B650 GAMING PLUS WIFI AMD AM5 Motherboard supports AMD Ryzen 7000 Series Desktop Processors. It supports DDR5 memory, allowing for dual-channel DDR5 operation at speeds of 6000+MHz (OC). The motherboard features an enhanced power design with a 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost for stable and efficient performance. It also incorporates a premium thermal solution with an extended heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads, and M.2 Shield Frozr, ensuring optimal cooling for high-performance systems. The MSI B650 GAMING PLUS WIFI Motherboard provides lightning-fast gaming experiences with PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, and USB 3.2 Gen 2x2 20G connectivity. It also includes a 2.5G LAN with Wi-Fi 6E Solution for upgraded network capabilities, delivering a secure, stable, and fast network connection. The MSI B650 GAMING PLUS WIFI motherboard is built with a high-quality PCB, featuring a 6-layer design made with 2oz thickened copper for durability and reliability. It supports Audio Boost technology, delivering studio-grade sound quality for an immersive gaming experience.
