| BASIC INFORMATION | ||
| BIOS | 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language |
|
| Form Factor | Micro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
|
| Basic Information | ||
| Chipset | Intel B560 chipset | |
| Audio | Realtek AL897 Codec 7.1-Channel High Definition Audio 1x Front panel audio connector |
|
| CPU | Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA1200 |
|
| Memory | ||
| Memory | Type: DDR4 Slots: 4x DDR4 memory slots Supported Memory: Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory: up to 128GB |
|
| Graphics | ||
| Graphics | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz12 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz12 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz | |
| LAN | 1x Realtek 8125B 2.5Gbps LAN controller | |
| Supported Storage | - 6x SATA 6Gb/s ports (From B560 chipset) - 2x M.2 slot (Key M) - M2_1 slot - Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) - Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 - Supports 2242/ 2260/ 2280/ 22110 storage devices - M2_2 slot2 (from B560 chipset) - Supports up to PCIe 3.0 x4 - Supports 2242/ 2260/ 2280 storage devices - Intel Optane Memory Ready - Supports Intel Smart Response Technology for Intel Core processors |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x Serial port connector 1x Tuning Controller Connector |
|

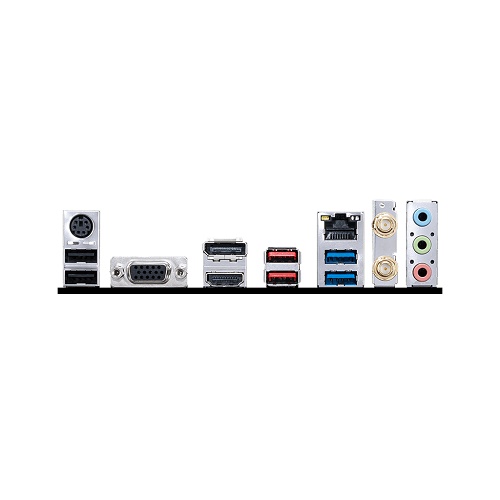

| USB Port | 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 years warranty | |
The MSI motherboards comes with tons of accessible and smart design for DIY druggies. In this motherboard, innumerous system tuning and troubleshooting tools are push the system to new height and satisfy indeed the most demanding tweaker.

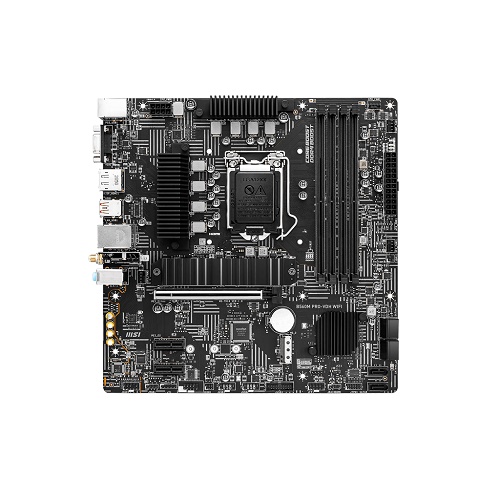

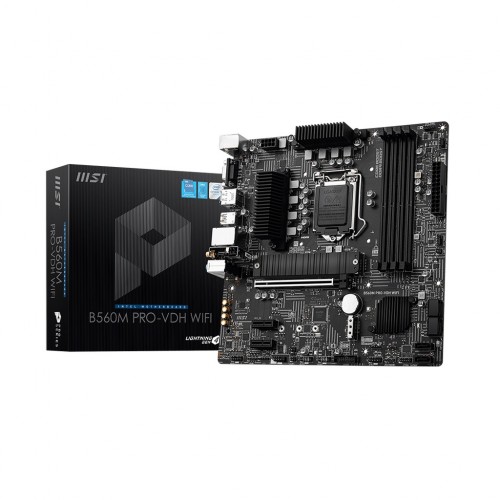

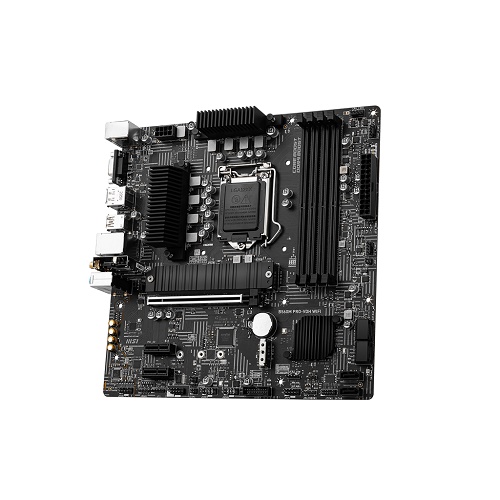

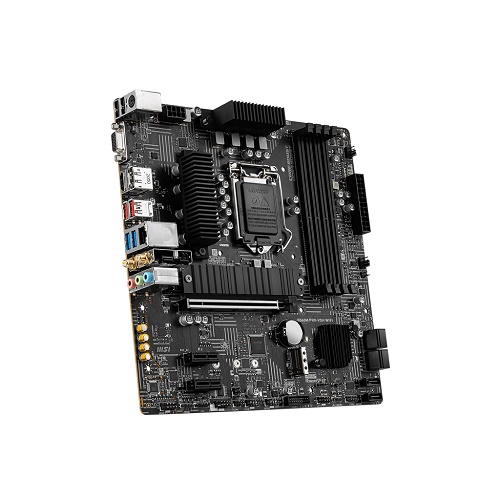

The rearmost MSI B560MPRO-VDH WIFI Motherboard supports 10th Gen Intel Core, 11th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1200 socket, DDR4 Memory, up to 5066 (OC) MHz. This motherboard featured with Core Boost with decoration layout and digital power design to support more cores and give better performance. Then used Advanced technology to deliver pure data signals for the stylish performance and stability. This motherboard has PCIe4.0, Lightning Gen4 x4M. 2 withM. 2 Shield Frozr that provides you Lightning Fast Experience. By2.5 G LAN you can Upgraded network result for professional and multimedia use that delivers a secure, stable and fast network connection. Then, Audio Boost, award your cognizance with plant grade sound quality. This motherboard has Steel Armor that Guarding VGA cards against bending for better performance, stability and strength.
MSI B560M PRO-VDH WIFI Motherboard Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. MSI MSI B560M PRO-VDH WIFI Motherboard Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface. MSI MSI B560M PRO-VDH WIFI Motherboard Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to 2 amp, supplying you with full control of the pump speed.
MSI OC LAB doesn't merely exert extreme overclocking. Compare to the B460 motherboard memory XMP profile, MSI MSI B560M PRO-VDH WIFI Motherboard does have great improvement in performance and efficiency for B560. Easy to enable XMP profile with auto power settings to urge the simplest memory speed and stability.
MSI MSI B560M PRO-VDH WIFI Motherboards support all the newest storage standards, which allows users to attach any ultra-fast memory device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature the latest Lightning Gen 4 M.2 which is that the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. MSI B560M PRO-VDH WIFI Motherboard PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel Optane storage device.
MSI MSI B560M PRO-VDH WIFI Motherboard Make sure you enjoy the purest sound quality in both stereo and surround sound. A hi-fi sound experience with exceptional acoustics and realism for studio-level headphones is ensured, because of top-quality audio capacitors. Using MSI MSI B560M PRO-VDH WIFI Motherboard separated layers within the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds once you plug/unplug devices or turn your PC on/off.
