| BASIC INFORMATION | ||
| Form Factor | m-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20.0 cm) |
|
| Basic Information | ||
| Chipset | AMD A320 Chipset | |
| Audio | 7.1-Channel High Definition Audio | |
| CPU | Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 |
|
| Memory | ||
| Memory | Type: Dual channel memory architecture Supports ECC UDIMM memory (non-ECC mode) Support non-ECC UDIMM memory Slots: 2 Supported Memory: Support DDR4 1866/ 2133/ 2400/ 2667/ 2933(OC)/ 3200(OC)Mhz(by JEDEC) Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz (by A-XMP OC MODE) Maximum Memory: 32GB |
|
| Graphics | ||
| Graphics | Graphics: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz1,2 Only support when using the processor with Max Shared Memory: Graphics Maximum shared memory of 2048 MB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @24Hz | |
| LAN | 1 x Realtek 8111H Gigabit LAN controller | |
| Supported Storage | AMD A320 Chipset 4 x SATA 6Gb/s ports Supports RAID 0, RAID1 and RAID 10 1x M.2 slot (Key M) Supports PCIe 3.0 x4 and SATA 6Gb/s 1st, 2nd and 3rd Gen AMD Ryzen™ Ryzen with Radeon Vega Graphics 2nd Gen AMD Ryzen with Radeon Graphics Supports PCIe 3.0 x2 and SATA 6Gb/s AMD Athlon with Radeon™ Vega Graphics A-series Athlon X4 Supports 2242/ 2260/ 2280/ 22110 storage devices |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Chassis Intrusion connector 1x Serial port connector 1x Clear CMOS jumper |
|

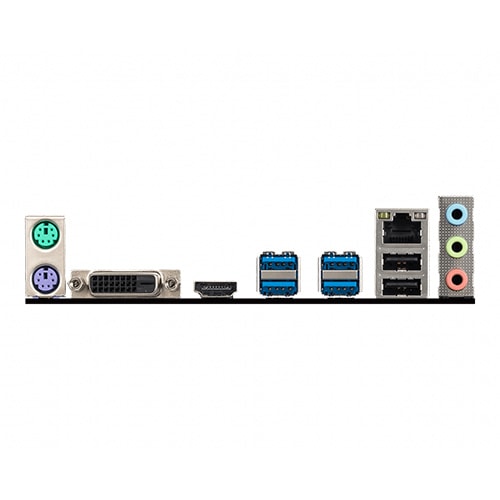

| USB Port | AMD A320 Chipset 6x USB 3.2 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

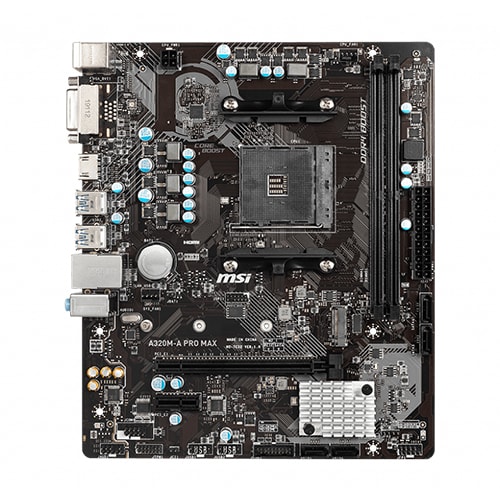

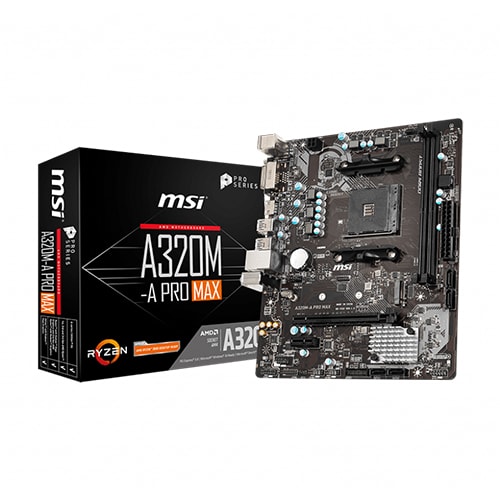

The MSI A320M-A PRO MAX AM4 is a high-quality micro-ATX gaming motherboard designed to support the 1st, 2nd, and 3rd generation AMD Ryzen processors along with Ryzen processors with Radeon Vega Graphics and Athlon processors with Radeon Vega Graphics. This feature-packed motherboard delivers reliable performance and versatile connectivity options, making it an ideal choice for gamers and PC enthusiasts.The motherboard is built with the AMD A320 chipset, which ensures stable and efficient performance. Its micro-ATX form factor measures 9.3 inches by 7.9 inches, making it suitable for compact gaming builds without compromising on essential features.When it comes to audio, the motherboard boasts a 7.1-channel high-definition audio solution, providing an immersive and crystal-clear sound experience for gaming, movies, and music.Memory support on the A320M-A PRO MAX is exceptional. It features a dual-channel memory architecture, allowing for better data transfer rates and overall system responsiveness. The motherboard supports DDR4 memory with speeds ranging from 1866MHz to an impressive 3200MHz (by JEDEC), and with A-XMP OC mode enabled, it can reach speeds up to 3200MHz. The maximum memory capacity supported is 32GB, providing ample room for multitasking and memory-intensive applications.In terms of graphics capabilities, the motherboard offers a DVI-D port and an HDMI 1.4 port, supporting resolutions up to 1920x1200@60Hz and 4096x2160@24Hz, respectively. The graphics performance can be further enhanced using processors with Radeon Graphics, and it supports a maximum shared memory of 2048MB.
