| BASIC INFORMATION | ||
| Supported CPU | Support for LGA1700 slots The 12th ,13th and14t generation processors TDP: 75W |
|
| Type | DDR5 | |
| Chipset | INTEL B760 High-speed chipset | |
| Graphics | HDMI 1.4: 4096x2160 @30Hz (HDCP2.2) VGA: 1920x1080 @60Hz | |
| Operating System | Support for Windows 10 64bit, Windows 11 64bit Support for Ubuntu 64bit |
|
| Storage | 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only) 3x SATA 3.0 ports | |
| Audio | Integrated REALTEK ALC 897 sound chip |
|
| Case Features | ||
| Expansion Slots | 1x PCIE X16 4.0 slot 3.0 sl Support for AMD and NVIDIA and INTEL graphics cards Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility) |
|
| Key Features | ||
| Network Standard | Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit) 1x onboard R]45 port Support network arousal Support PXE no disk, UEFI no disk guide Support for Bluetooth 5.2 |
|
| Form Factor | Micro ATX 225mm x 195mm | |
| Connectivity | ||

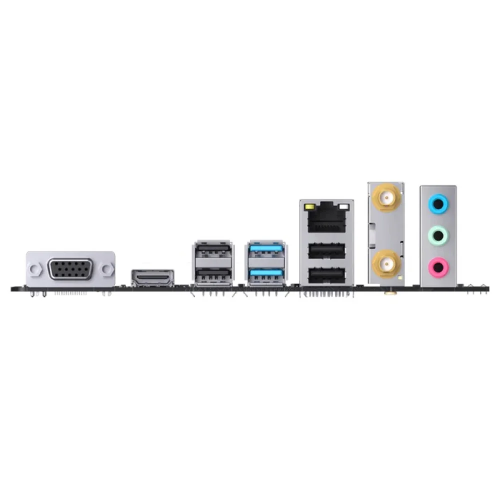

| USB | *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin, 1xgroup (2 rows) USB 3.2 GEN 1 pin, 1x TYPE C(USB 3.2 GEN 2X2) ports |
|
| Memory | ||
| Supported Memory | 2x DIMM DDR5 memory slots Maximum support in total is 128GB Support for dual-channel memory technology Support for 4800/5200/5600/OC + memory frequency Supports Intel®XMP Technology |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |
Experience unparalleled power delivery with a meticulously crafted 4+1+1 phase configuration and a robust 50A Dr.Mos core, guaranteeing unwavering stability and performance amplification. Forge seamless connections with the integrated Intel AX101 WIFI6 wireless card, delivering lightning-fast wireless connectivity, while Bluetooth 5.2 support keeps you effortlessly synced with the latest peripherals and devices. Seize control of your system's visual allure with the innovative MaxsunSYNC lighting control software, enabling effortless customization and synchronization of captivating lighting effects. Dive into a realm of storage versatility with a swift M.2 interface and three SATA3.0 interfaces, catering to diverse storage requirements and maximizing flexibility. Elevate your system's thermal resilience with an upgraded large-area alloy heat armor, ensuring optimal heat dissipation and keeping temperatures at an efficient equilibrium even under intense usage scenarios. Embark on a journey of hassle-free diagnostics with user-friendly Debug lights, coupled with the convenience of a CLR_CMOS function button for swift and straightforward troubleshooting whenever needed.
