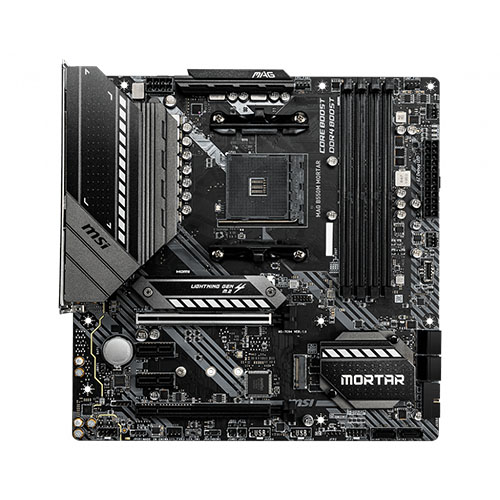

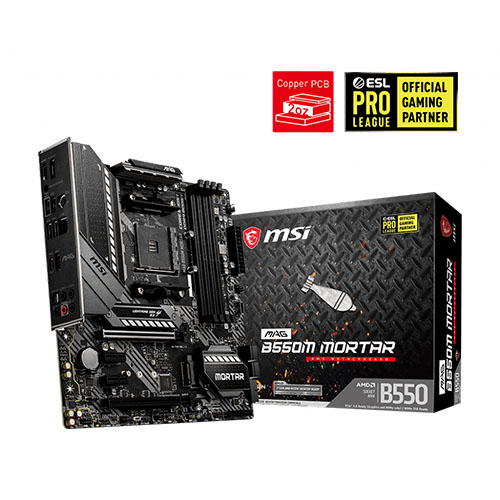

MSI MAG B550M MORTAR MOTHERBOARD

MSI MAG B550M MORTAR MOTHERBOARD
Product code
1190
Brand
MSI
Product model MAG B550M MORTAR
Warranty 3 years
Total Reviews

TBA

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset AMD B550 Chipset
Audio Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
BASIC INFORMATION
Supported CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Form Factor Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
Memory
Slots 4 x DDR4 memory slots
Memory Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Graphics
Graphics 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
Supports 2-Way AMD CrossFire Technology
Connector & Ports
HDMI 1x HDMI maximum resolution of 4096x2160 @24Hz
LAN 1x Realtek RTL8125B 2.5Gbps LAN controller
Supported Storage AMD B550 Chipset
6x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD processor)
Supports PCIe 4.0/ 3.0 x4
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
6x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x 4-pin RGB LED connector
2x 3-pin RAINBOW LED connectors
1x Clear CMOS jumper
USB Port AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
WARRANTY INFORMATION
Warranty 03 Years Warranty

MSI MAG B550M Mortar AMD Micro ATX Gaming Motherboard

The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry-level gamers. With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink and enhanced circuit design ensures even high-end CPU to run at full speed with MSI motherboards. The world’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 Shield Frozr is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you to check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. Utilizing 3rd Gen Ryzen processors, MSI B550 motherboards feature the latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. MSI B550 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. 2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.



Quick Compare

Product Details
Product MSI MAG B550M MORTAR MOTHERBOARD Gigabyte Aorus B550M Elite AMD 3rd Gen Micro ATX Motherboard Asus PRIME B760M-K mATX Motherboard MSI MPG B550 Gaming Plus AM4 ATX Motherboard
Image MSI MAG B550M MORTAR MOTHERBOARD Gigabyte Aorus B550M Elite AMD 3rd Gen Micro ATX Motherboard Asus PRIME B760M-K mATX Motherboard MSI MPG B550 Gaming Plus AM4 ATX Motherboard
Price 17,360৳ 17,100৳ 17,400৳ 20,900৳ 17,600৳ 19,672৳ 17,000৳
Model MAG B550M MORTAR Gigabyte Aorus B550M Elite AMD 3rd Gen Micro ATX B760M-K mATX MPG B550 Gaming Plus
Brand MSI Gigabyte ASUS MSI
Availability Out Of Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 1 reviews.

Based on 0 reviews.

Based on 0 reviews.

Write a review

Note: HTML is not translated!
Bad Good

What is the MSI MAG B550M MORTAR MOTHERBOARD price in bd 2024?

The MSI MAG B550M MORTAR PC-Components price in BD is not available at this moment. We will update the price soon. The MSI MAG B550M MORTAR PC-Components is Out Of Stock now in our store (Call us to know about details of this product). 21 customer buy this product From 4365 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order MSI MAG B550M MORTAR online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
