| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors |
|
| Chipset | Intel Z790 Express Chipset | |
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | 2 x audio jacks | |
| Basic Information | ||
| Type | DDR5 | |
| Expansion Slots | ||
| PCI | CPU: |
|
| Memory | ||
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) | |

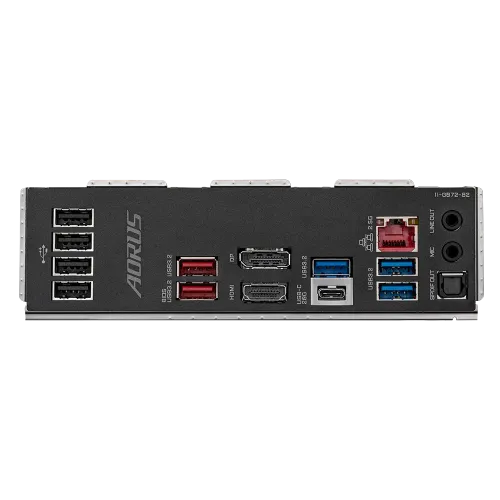

| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Display Port | 1 x DisplayPort | |
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| USB (s) | Chipset: |
|
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices |
|
| Supported Storage | CPU: |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Bundled Software | Norton Internet Security (OEM version) |
|
| Special Features | Support for GIGABYTE Control Center (GCC) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

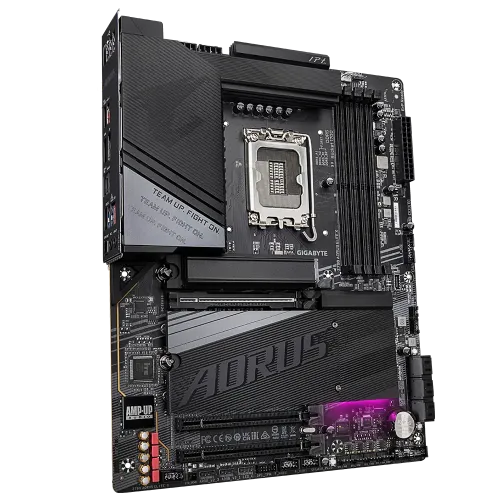

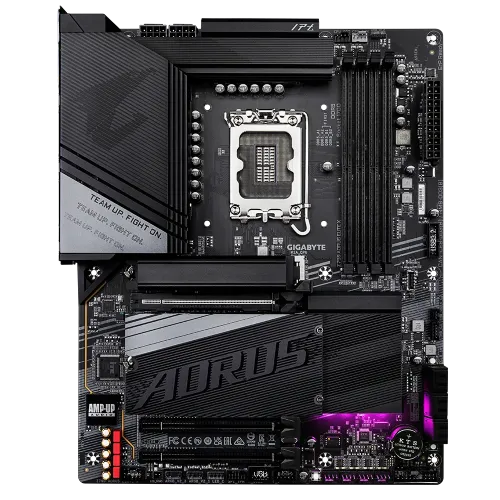

The GIGABYTE Z790 AORUS ELITE X ATX Motherboard is a high-end motherboard built to fulfill the demands of both gamers and power users. This motherboard is compatible with Intel Core 14th and 13th-generation CPUs, allowing you to take advantage of the most recent CPU technologies for maximum performance. Its digital dual VRM technology with 16+1+2 phases provides consistent power delivery, making it an ideal choice for reliable performance and overclocking capabilities. Multitasking and gaming performance are greatly improved with support for Dual Channel DDR5 memory via four DIMM slots and XMP 3.0 memory modules. The motherboard also excels in graphics compatibility, having a PCIe 5.0 x 16 slot with 10X power for the most recent graphics cards. The EZ-Latch Click and EZ-Latch Plus M.2 heatsinks feature a screwless and quick-release design, effectively dissipating heat from M.2 SSDs and improving overall system stability. The user-friendly UC BIOS offers an intuitive experience with Quick Access functions, simplifying system customization and optimization. Additionally, the motherboard boasts ultra-fast storage capabilities with four PCIe 4.0 x4 M.2 slots, reducing loading times for games and applications. Thermal management efficiency is a top emphasis, with the VRM Thermal Armor Advanced and M.2 Thermal Guard L assisting in maintaining overall thermal performance even under severe workloads. Its 2.5GbE LAN offers speedy networking, making it ideal for online gaming and streaming. The motherboard also has a wide range of connectivity choices, such as DisplayPort (DP), HDMI, Front USB-C at 10Gb/s, and Rear USB-C at 20Gb/s, making it ideal for connecting a wide range of devices and peripherals. Finally, with the ALC1220 audio chipset and audiophile-grade capacitors, it delivers high-quality sound for an immersive gaming and entertainment experience.
