| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, Support For: AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors |
|
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek® ALC1220-VB Audio CODEC * The Back Panel Line Out Jack Supports DSD Audio.. Support For DTS:X® Ultra. High Definition Audio. 2/4/5.1/7.1-Channel. Support For S/PDIF Out |
|
| Memory | ||
| Slots | 1 X PCI Express X16 Slot (PCIEX16), Integrated In The CPU: AMD Ryzen™ 5000 Series/3000 Series Processors Support PCIe 4.0 X16 Mode AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors Support PCIe 3.0 X16 Mode AMD Ryzen™ 3000 G-Series/2000 G-Series Processors Support PCIe 3.0 X8 Mode 1 X PCI Express X16 Slot (PCIEX8), Integrated In The CPU: AMD Ryzen™ 5000 Series/3000 Series Processors Support PCIe 4.0 X8 Mode AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors Support PCIe 3.0 X8 Mode AMD Ryzen™ 3000 G-Series Processors/AMD Ryzen™ 2000 G- Series Processors Do Not Support This Slot. * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. * The PCIEX8 Slot Shares Bandwidth With The PCIEX16 Slot. When The PCIEX8 Slot Is Populated, The PCIEX16 Slot Operates At Up To X8 Mode. 1 X PCI Express X16 Slot (PCIEX4), Integrated In The Chipset: Supporting PCIe 4.0*/3.0 X4 Mode * For AMD Ryzen™ 5000 Series/3000 Series Processors Only. |
|
| Memory | 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules* * ECC Memory (ECC Mode) Support Varies By CPU Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Graphics | ||
| Graphics | 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version, HDCP 2.3, And HDR. Maximum Shared Memory Of 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI Port | |
| LAN | Intel® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2242/2280/22110 SSDs: AMD Ryzen™ 5000-Series/3000 Series Processors Support SATA And PCIe 4.0 X4/X2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G- Series Processors Support SATA And PCIe 3.0 X4/X2 SSDs 1 X M.2 Connector (M2B_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2280/22110 SSDs: Supporting PCIe 4.0*/3.0 X4/X2 SSDs * For AMD Ryzen™ 5000 Series/3000 Series Processors Only. 1 X M.2 Connector (M2C_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2280/22110 SSDs: Supporting SATA And PCIe 4.0*/3.0 X4/X2 SSDs * For AMD Ryzen™ 5000 Series/3000 Series Processors Only. 6 X SATA 6Gb/S Connectors, Integrated In The Chipset: Support For RAID 0, RAID 1, And RAID 10 * Refer To "1-8 Internal Connectors," For The Installation Notices For The M.2 And SATA Connectors. |
|
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 4 X System Fan Headers 2 X System Fan/Water Cooling Pump Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 3 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module (TPM) Header (2x6 Pin, For The GC-TPM2.0_S Module Only) 1 X Thunderbolt™ Add-In Card Connector 1 X Clear CMOS Jumper 2 X Temperature Sensor Headers |
|

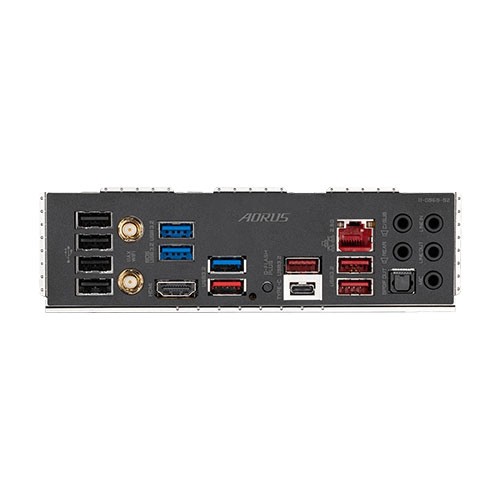

| USB Port | 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel 3 X USB 3.2 Gen 1 Ports On The Back Panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support Chipset: 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 3 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel 4 X USB 3.2 Gen 1 Ports Available Through The Internal USB Headers Chipset+2 USB 2.0 Hubs: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
|
| WiFi | WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5 GHz Dual-Band | |
| Others | ||
| Special Features | Support For APP Center * Available Applications In APP Center May Vary By Motherboard Model. Supported Functions Of Each Applicationmay Also Vary Depending Onmotherboard Specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support For Q-Flash Plus Support For Q-Flash Support For Xpress Install |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

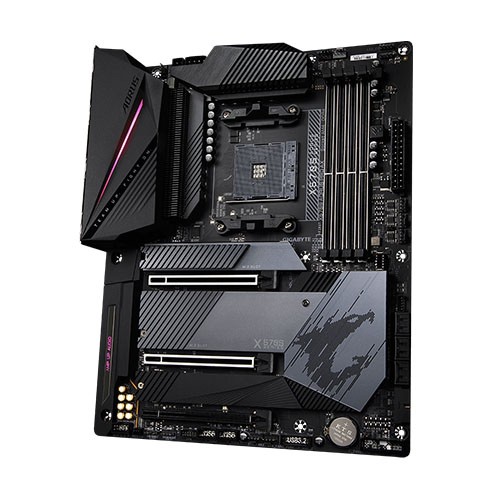

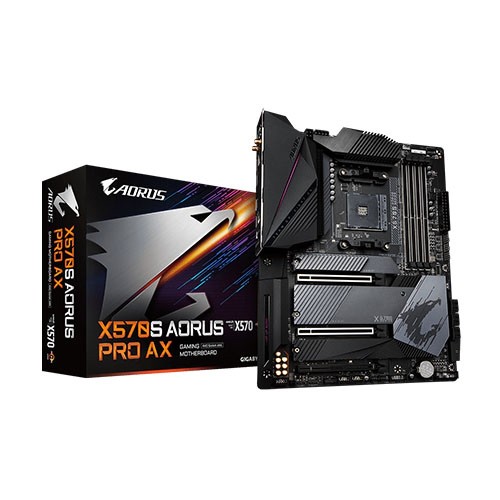

Gigabyte X570S AORUS PRO AX Gaming Motherboard Supports with AMD Ryzen 5000 Series/ Ryzen 5000 G Series/ Ryzen 4000 G Series/ Ryzen 3000 Series/ Ryzen 3000 G Series/ Ryzen 2000 Series/ Ryzen 2000 G Series Processors and Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs. With the full potential of the latest AMD Ryzen 5000 series processors, the motherboard requires the best CPU power, memory, and IO design, this motherboard is a true beast among motherboards. Gigabyte X570S AORUS PRO AX motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components that help to keep your gaming system up to fast and powerful, even under heavy workloads.
This motherboard featured with Active OC Tuner features Dynamic Change Between P.B.O. and Manual OC Settings, Twin 12+2 Phases Digital VRM Solution with 60A DrMOS, Advanced Thermal Solution with Fins-Array II, Direct Touch Heatpipe II and M.2 Thermal Guard III, Intel WiFi 6 802.11ax & BT 5.2, Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards, Blazing Fast Intel 2.5GbE LAN with cFosSpeed and SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds. The Gigabyte X570S AORUS PRO AX motherboard has AMP-UP Audio with ALC1220-VB and WIMA Audio Capacitors, Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips and Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
This motherboard comes with Fins-Array II, 2X Copper PCBs design, and M.2 Thermal Guard III features. Fins-Array II is designed with a brand new louvered stacked-fins design, that helps to increases surface area by 300% compared to traditional heatsinks but also improves thermal efficiency with better airflow and heat dissipation. 2X Copper PCBs design effectively lower the component temperature with its high thermal conductivity and low impedance. M.2 Thermal Guard III constructed comes with 2.6X optimized heat dissipation surface and double-sided M.2 heatsinks to prevent throttling and bottlenecks on high-speed/ large capacity of PCIe 4.0 M.2 SSDs. Its unprecedented and innovative thermal design ensures the best CPU, Chipset, SSD stability, and low temperatures under full loading application and gaming. The new Gigabyte X570S AORUS PRO AX provides all next-generation network, storage, and WIFI connectivity to keep you up to speed. It also features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics and is able to let enthusiasts build a powerful and unique gaming PC.
