| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM4, Support For: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/ AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors (Please Refer "CPU Support List" For More Information.) |
|
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek® ALC1220-VB Codec * The Back Panel Line Out Jack Supports DSD Audio.. High Definition Audio. Support For S/PDIF Out 2/4/5.1/7.1-Channel. Support For S/PDIF Out |
|
| Memory | ||
| Slots | X PCI Express X16 Slot (PCIEX16), Integrated In The CPU: AMD Ryzen™ 5000 Series/3000 Series Processors Support PCIe 4.0 X16 Mode AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors Support PCIe 3.0 X16 Mode AMD Ryzen™ 3000 G-Series/2000 G-Series Processors Support PCIe 3.0 X8 Mode * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. 1 X PCI Express X16 Slot (PCIEX4), Integrated In The Chipset:. Supporting PCIe 4.0(Note)/3.0 X4 Mode. 1 X PCI Express X16 Slot (PCIEX2), Integrated In The Chipset:. Supporting PCIe 4.0(Note)/3.0 X2 Mode * The PCIEX4 Slot Shares Bandwidth With The PCIEX2 Slot. When The PCIEX2 Slot Is Populated, The PCIEX4 Slot Operates At Up To X2 Mode.. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors Only. |
|
| Memory | 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz Memory Modules Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules* * ECC Memory (ECC Mode) Support Varies By CPU Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Storage | 1 X M.2 Connector (M2A_CPU), Integrated In The CPU, Supporting Socket 3, M Key, Type 2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series/3000 Series Processors Support SATA And PCIe 4.0 X4/X2 SSDs AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors Support SATA And PCIe 3.0 X4/X2 SSDs X M.2 Connectors (M2B_SB/M2C_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2260/2280/22110 SSDs: Supporting SATA And PCIe 4.0(Note)/3.0 X4/X2 SSDs 1 X M.2 Connector (M2C_SB), Integrated In The Chipset, Supporting Socket 3, M Key, Type 2242/2280/22110 SSDs: Supporting SATA And PCIe 4.0(Note)/3.0 X4/X2 SSDs 6 X SATA 6Gb/S Connectors, Integrated In The Chipset: Support For RAID 0, RAID 1, And RAID 10 * Refer To "1-7 Internal Connectors," For The Installation Notices For The M.2 And SATA Connectors. (Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors Only. |
|
| Graphics | ||
| Graphics | 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version, HDCP 2.3, And HDR. Maximum Shared Memory Of 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI Port | |
| LAN | Realtek® 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 1 X CPU Cooler LED Strip/RGB LED Strip Header 3 X M.2 Socket 3 Connectors 6 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 2 X USB 3.2 Gen 1 Headers 2 X USB 2.0/1.1 Headers 1 X Trusted Platform Module (TPM) Header (2x6 Pin, For The GC-TPM2.0_S Module Only) 1 X Thunderbolt™ Add-In Card Connector 1 X Clear CMOS Jumper ＊All Fan Headers Are Subject To Support AIO_Pump, Pump And High Performance Fan With The Capability Of Delivering Up To 2A/12V @ 24W. |
|

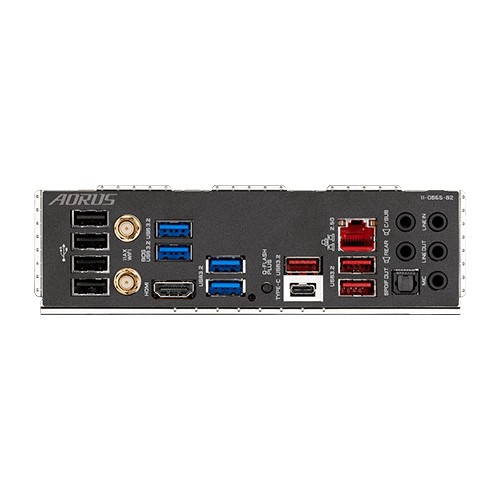

| USB Port | 4 X USB 3.2 Gen 1 Ports On The Back Panel Chipset+ASMedia® USB 3.2 Gen 2x2 Controller: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support Chipset: 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 3 X USB 3.2 Gen 2 Type-A Ports (Red) On The Back Panel 4 X USB 3.2 Gen 1 Ports Available Through The Internal USB Headers Chipset+2 USB 2.0 Hubs: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
|
| WiFi | AMD Wi-Fi 6E RZ608 (MT7921K) WIFI A, B, G, N, Ac, Ax, Supporting 2.4/5/6 GHz Carrier Frequency Bands Support For 11ax 80MHz Wireless Standard And Up To 1.2 Gbps Data Rate (Actual Data Rate May Vary Depending On Environment And Equipment.) |
|
| Others | ||
| Special Features | Support For APP Center * Available Applications In APP Center May Vary By Motherboard Model. Supported Functions Of Each Applicationmay Also Vary Depending Onmotherboard Specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support For Q-Flash Plus Support For Q-Flash Support For Xpress Install |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

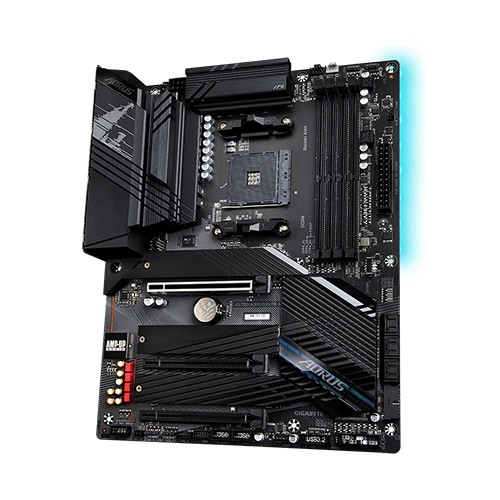

Gigabyte X570S AORUS ELITE AX Motherboards Feature Upgraded Power Solution, Passive And Silent Thermal Design, And PCIe 4.0 Components To Keep Your Gaming System Up To Fast And Powerful, Even Under Heavy Workloads.
To Unleash The Full Potential Of The Latest AMD Ryzen™ 5000 Series Processors, The Motherboard Requires The Best CPU Power, Memory And IO Design. With The Best Quality Components And GIGABYTE R&D Design Capability, Gigabyte X570S AORUS ELITE AX Is A True Beast Among Motherboards.
To Unleash The Full Potential Of The Latest AMD Ryzen™ 5000 Series Processors, The Motherboard Requires The Best CPU Power, Memory And IO Design. With The Best Quality Components And GIGABYTE R&D Design Capability, Gigabyte X570S AORUS ELITE AX Is A True Beast Among Motherboards.
By Using 1.5mm Thicker 5 W/MK Thermal Conductivity Pads, It Can Transfer 2.7x More Heat Compared To Traditional Thermal Pads In The Same Time.
Built-In M.2 Heatsinks Prevent High-Speed, Large Capacity PCIe 4.0/3.0 SSDs From Throttling Due To Overheating.
Gigabyte X570S AORUS ELITE AX Uses High Performance Full Covered Thermal Design With High Coverage MOSFET Heatsinks And Thick Thermal Pad, Providing Ultimate MOSFET Cooling Performance For Enthusiasts, Overclockers And Gamers.
A High-End Product Needs To Be Future-Proof So Your System Stays Up-To-Date With The Latest Technology. Gigabyte X570S AORUS ELITE AX Provides All Next Generation Network, Storage, And Connectivity To Keep You Up To Speed.
Gigabyte X570S AORUS ELITE AX Features RGB FUSION 2.0 To Offer Lighting Effected Options And Customized Settings With Outstanding Aesthetics, And Able To Let Enthusiasts Building A Stylish And Unique Gaming PC.
