| Display Features | ||
| Resolution | 7680 x 4320 | |
| Basic Information | ||
| Type | GDDR7 | |
| BASIC Information | ||
| Size | 16GB | |
| Video Memory Specifications | ||
| Core Clock | 2670 MHz | |
| BUS Type | PCI-E 5.0 | |
| CUDA Cores (Nvidia) | TBD | |
| Memory Clock | 30 Gbps | |
| Memory Interface | 256 bit | |
| Features | ||
| Dimension | L=304 W=126 H=50 mm | |
| Interface | ||
| Display Port | DisplayPort 2.1a x3 | |
| HDMI | HDMI 2.1b x1 | |
| Connectivity | ||
| Connectors | 16 pin*1 | |
| Display Option | ||
| Multi Display | 4 | |
| Application Programming Interfaces | ||
| OpenGL | OpenGL 4.6 | |
| DirectX | DirectX 12 API | |
| Physical Specification | ||
| Recommended PSU | 850W | |
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

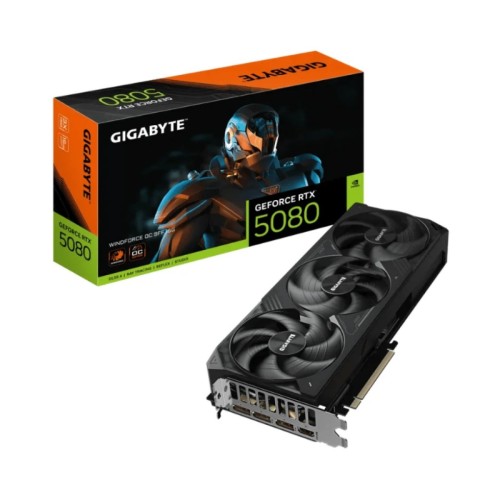

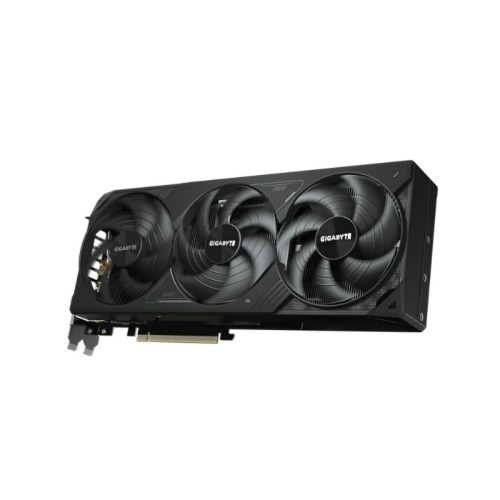

Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB Graphics Card
The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB Graphics Card is a high-performance GPU designed for gamers and professionals seeking robust graphics capabilities in a compact form factor. Built on NVIDIA's Blackwell architecture, it offers advanced features and exceptional performance.
Key Features:
GPU Architecture: Blackwell
CUDA Cores: 10,752
Core Clock: 2670 MHz (factory overclocked)
Memory: 16GB GDDR7
Memory Speed: 30 Gbps
Memory Interface: 256-bit
Ray Tracing Cores: 84 (4th generation)
Tensor Cores: 336 (5th generation)
Display Outputs: 1× HDMI 2.1b, 3× DisplayPort 2.1b
Maximum Resolution: 7680 x 4320
Power Connector: 16-pin
Recommended PSU: 850W
Dimensions: 304 x 126 x 50 mm
Performance Highlights:
The RTX 5080's advanced ray tracing and AI capabilities enable realistic lighting, shadows, and reflections in real-time applications. The inclusion of GDDR7 memory ensures high-speed data transfer, reducing latency and enhancing overall performance. The card supports DLSS 4 technology, utilizing AI-driven upscaling to deliver higher frame rates without compromising image quality.
Design and Cooling:
The WINDFORCE cooling system incorporates Hawk fans with alternate spinning, composite copper heat pipes, a large vapor chamber, 3D active fans, and screen cooling. This design ensures efficient heat dissipation, maintaining optimal performance during extended use. The compact small form factor (SFF) design makes it suitable for builds with limited space.
Compatibility and Power Requirements:
Featuring a PCIe 5.0 interface, the RTX 5080 ensures high-speed connectivity with modern motherboards. The 16-pin power connector offers improved safety and reliability over previous designs. A power supply of at least 850W is recommended to ensure stable operation.
Conclusion:
The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16GB Graphics Card is a top-tier choice for those seeking exceptional performance in a compact design. Its advanced architecture, efficient cooling system, and high-speed memory make it suitable for demanding gaming and professional applications.
