GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
  • GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
  • GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard
  • GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard

GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard

Price: 23,900৳ 22,934৳
Status: In Stock
Product Code: 10582
Brand: Gigabyte
Key Features
  • Model: B760M GAMING X AX DDR4
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR4, Max 128GB 5333(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort
  • Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

Basic Information
Chipset Intel B760 Express Chipset
Audio

Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
BASIC INFORMATION
Supported CPU

LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core,
Pentium Gold and Celeron Processors
L3 cache varies with the CPU
BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Expansion Slots
PCI

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
M.2 Socket

1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Memory
Memory Type DDR4
Slots 4
Supported Memory

Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 128GB
Storage

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Graphics
Graphics

Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI 1x HDMI
Display Port 1x DisplayPort
LAN

Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
1 x RJ-45 port
Wireless

Intel Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

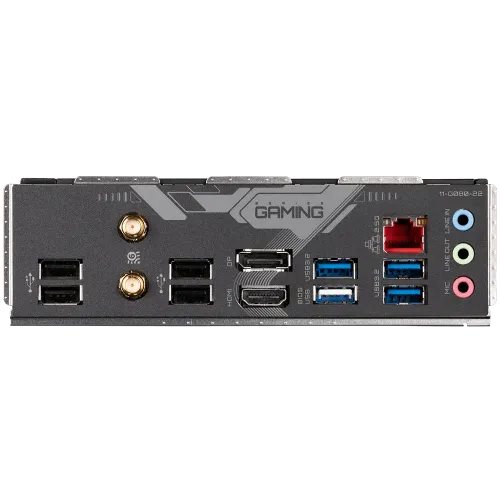

USB Port

1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
1 x USB 2.0/1.1 port on the back panel
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Others
Special Features

2 x addressable LED strip headers
2 x RGB LED strip headers
iTE I/O Controller Chip
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
WARRANTY INFORMATION
Warranty 3 years

Description :

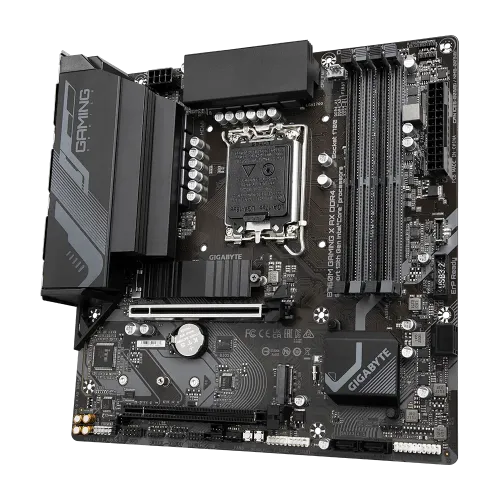

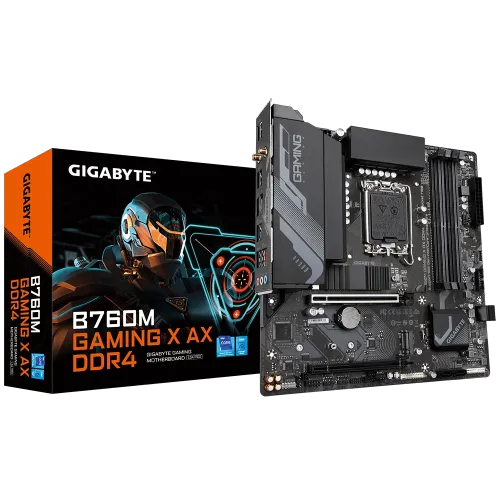

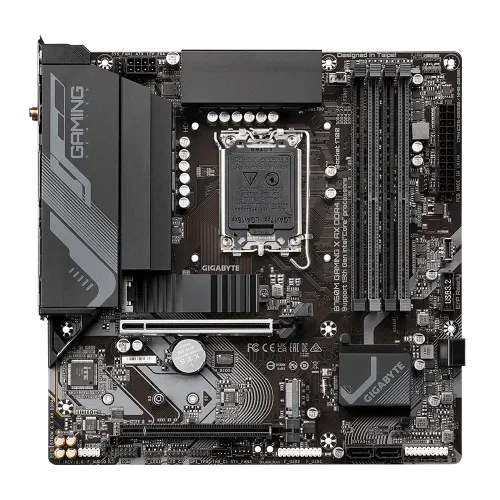

GIGABYTE B760M GAMING X AX DDR4 mATX Motherboard

The GIGABYTE B760M GAMING X AX DDR4 motherboard is designed to handle Intel Series Processors from the 14th 13th and 12th generations through an LGA 1700 socket. It offers an 8+1+1 phase hybrid digital VRM system for unrivaled performance. The 14th Gen Motherboard supports dual-channel DDR4 memory modules with 4 DIMMs and XMP memory module compatibility. It includes next-generation storage choices, including two PCIe 4.0 x4 M.2 ports. VRM power stability and M.2 SSD performance are ensured by the sophisticated thermal design and M.2 thermal protector. A rapid-release EZ-Latch PCIe 4.0 x16 slot is also included on the motherboard. It offers 2.5GbE LAN and Wi-Fi 6E 802.11ax for rapid network connectivity. A front USB-C 10Gb/s port, DP, and HDMI are among the many connectivity possibilities. Multiple temperature sensors and hybrid fan headers with FAN STOP are included in the Smart Fan 6. The Q-Flash Plus allows you to update the BIOS without having to install the CPU, RAM, or graphics card.
