| Basic Information | ||
| Type | DDR4 | |
| BASIC INFORMATION | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Memory | ||
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
|
| Connector & Ports | ||
| Display Port | 1x DisplayPort | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| USB (s) | 1 x USB Type-C port, with USB 3.2 Gen 2 support |
|
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) |
|
| Internal I/O Ports | 1 x 24-pin ATX main power connector |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | 2 x addressable LED strip headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

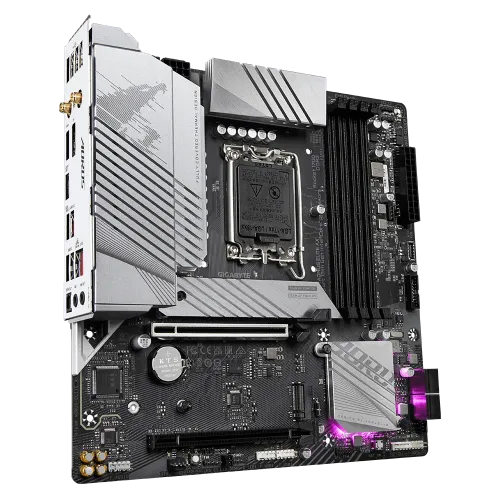

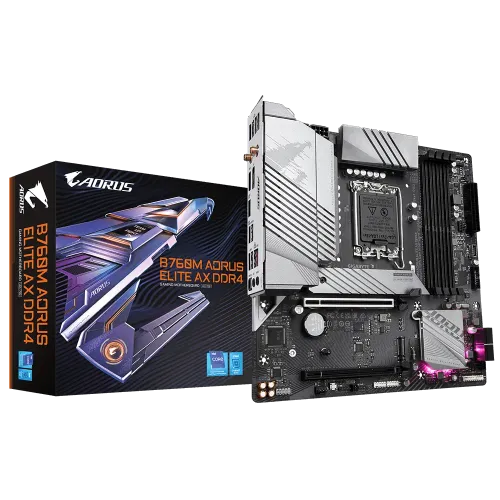

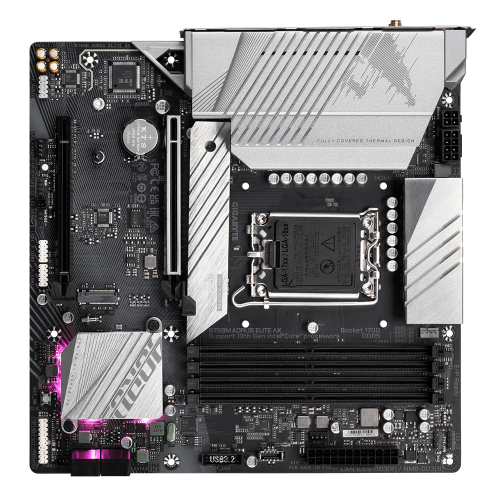

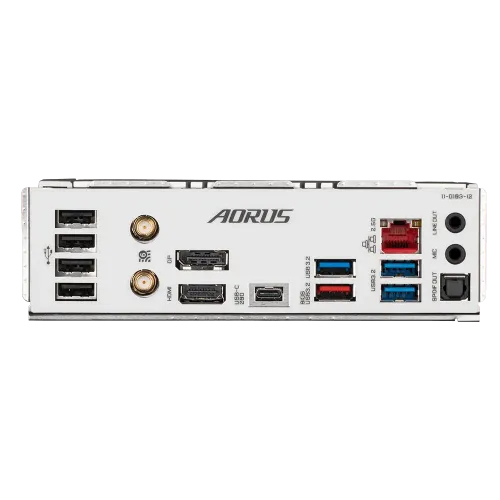

The GIGABYTE B760M AORUS ELITE AX DDR4 Motherboard is a Micro ATX motherboard that supports Intel Socket LGA 1700 and 14th, 13th and 12th Generation Intel Series Processors. It offers a Twin 12*+1+1 Phases Digital VRM Solution for exceptional performance. The motherboard supports dual-channel DDR4 memory and 4 DIMMs with XMP Memory Module. It also has next-generation storage, including two PCIe 4.0 x4 M.2 connectors. VRM power stability and M.2 SSD performance are ensured by Advanced Thermal Design and M.2 Thermal Guard. The M.2 connections' EZ-Latch Plus design allows for rapid release and screwless installation. 2.5GbE LAN with Intel Wi-Fi 6E 802.11ax deliver fast networks. The motherboard also has front USB-C 10Gb/s, back USB-C 20Gb/s, DP, and HDMI connections. Smart Fan 6 comes with numerous temperature sensors as well as hybrid fan headers with fan stops. The Q-Flash Plus enables simple BIOS changes without the need for a new CPU, RAM, or graphics card.
