| BASIC INFORMATION | ||
| Supported CPU | LGA1700 Socket: Support For 12th Generation Intel® Core™ I9 Processors/Intel® Core™ I7 Processors/Intel® Core™ I5 Processors L3 Cache Varies With CPU |
|
| BIOS | 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm X 24.4cm | |
| Basic Information | ||
| Chipset | Intel B660 Express Chipset | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-Channel * To Configure 7.1-Channel Audio, You Need To Open The Audio Software And Select Device Advanced Settings > Playback Device To Change The Default Setting First. Please Visit GIGABYTE's Website For Details On Configuring The Audio Software. Support For S/PDIF Out |
|
| Memory | ||
| Slots | 1 X PCI Express X16 Slot, Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.) 1 X PCI Express X16 Slot, Running At X4 (PCIEX4) (The PCIEX4 Slot Conforms To PCI Express 3.0 Standard.) |
|
| Memory | Support For DDR5 3200/3000/2933/2666/2400/2133 MHz Memory Modules 4 X DDR DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@60 Hz * Support For HDMI 2.1 Version And HDCP 2.3. ** Support Native HDMI 2.1 TMDS Compatible Ports 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version And HDCP 2.3 |
|
| Connector & Ports | ||
| LAN | Intel®2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280 PCIe 4.0 X4/X2 SSD Support) (M2A_CPU) Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 PCIe 4.0 X4/X2 SSD Support) (M2P_SB) 4 X SATA 6Gb/S Connectors |
|
| Internal I/O Ports | 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X 4-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 1 X System Fan/Water Cooling Pump Header 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 2 X M.2 Socket 3 Connectors 4 X SATA 6Gb/S Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 2 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Serial Port Header 1 X Reset Button 1 X Q-Flash Plus Button 1 X Reset Jumper 1 X Clear CMOS Jumper |
|

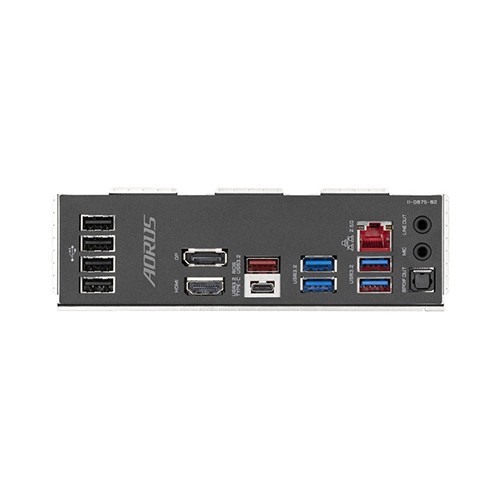

| USB Port | Chipset: 1 X USB Type-C® Port On The Back Panel, With USB 3.2 Gen 2x2 Support 1 X USB Type-C® Port With USB 3.2 Gen 2 Support, Available Through The Internal USB Header 1 X USB 3.2 Gen 2 Type-A Port (Red) On The Back Panel Chipset+2 USB 3.2 Gen 1 Hubs: 6 X USB 3.2 Gen 1 Ports (4 Ports On The Back Panel, 2 Ports Available Through The Internal USB Header) Chipset+2 USB 2.0 Hubs: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 Years | |

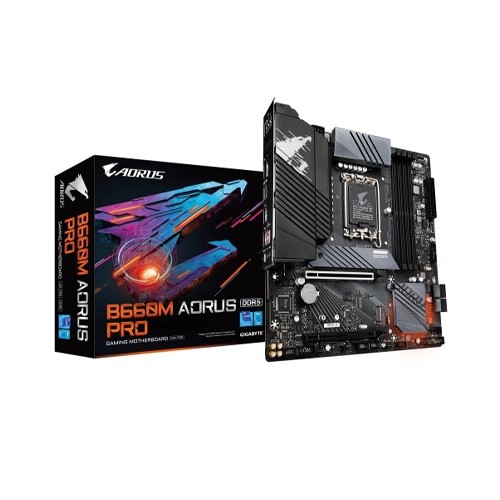

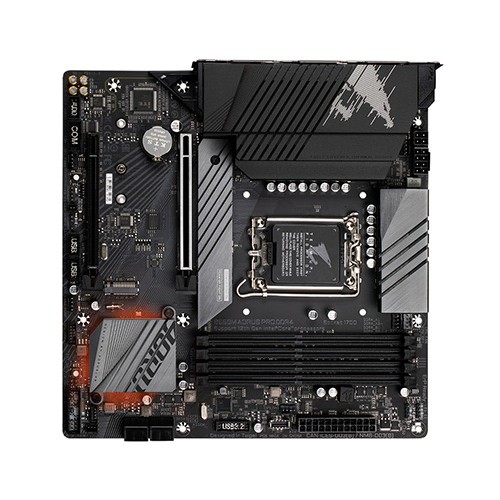

The Gigabyte B660M AORUS PRO Motherboard From Gigabyte.Gigabyte B660M AORUS PRO Motherboard The New King Of Gaming Platform Continues The Legendary AORUS Bloodline With The Most Robust Power Delivery And Dominant Thermal Design, Glorified With The Complete Memory Overclocking Technology To Crown Your PC With The Best Alder Lake's Performance In All Its Gaming Glory.With Technology Moving So Fast, GIGABYTE Still Keep Up With The Latest Trends And Provide Our Customers With Advanced Features And Latest Technology. Gigabyte B660M AORUS PRO Motherboard Come With Upgraded Power Solution, Latest Storage Standards And Outstanding Connectivity To Enable Optimize Performance For Gaming.Gigabyte B660M AORUS PRO Motherboard Un-Throttled Performance Is Guaranteed By Innovative And Optimized Thermal Design To Ensure The Best CPU, Chipset, SSD Stability And Low Temperatures Under Full Load Application And Gaming.Gigabyte B660M AORUS PRO Motherboard Let You Experience Ultimate Connection Flexibility And Blazing Data-Transfer Speed With Next Generation Network, Storage.GIGABYTE Motherboards Bundle Several Useful And Intuitive Software To Help Users To Control Every Aspect Of Motherboard And Provide Customizable Lighting Effect With Outstanding Aesthetics To Fit Your Unique Personality.GIGABYTE Ultra Durable™ Features Its Product Durability And High-Quality Manufacturing Process. GIGABYTE Motherboards Use The Best Components And Reinforce Every Slots To Make Each Of Them Solid And Durable.
unparalleled performance With technology moving so fast, GIGABYTE still keep up with the latest trends and provide our customers with advanced features and latest technology. GIGABYTE B660 Series motherboards come with upgraded power solution, latest storage standards and outstanding connectivity to enable optimize performance for gaming.
GIGABYTE B660 Motherboards feature the latest DDR5 architecture and XMP 3.0 capability. The new DDR5 memory technology brings 50% more bandwidth to the platform and increases the system performance drastically by implementing Unlocked Native DDR5 Voltage, Xtreme Memory Routing. In addition to the hardware upgrades, the user friendly UI provides full functionality to overclock higher with exclusive DDR5 tuning capability.
GIGABYTE B660 Series Motherboards' Un-throttled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming
GIGABYTE B660 Series Motherboards let you experience ultimate connection flexibility and blazing data-transfer speed with next generation network, storage.
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
GIGABYTE Ultra Durable™ features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
