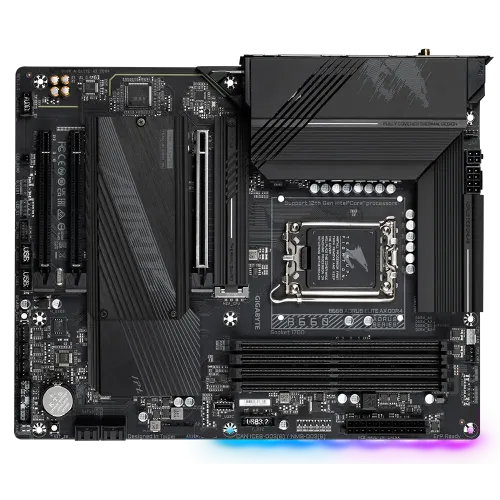

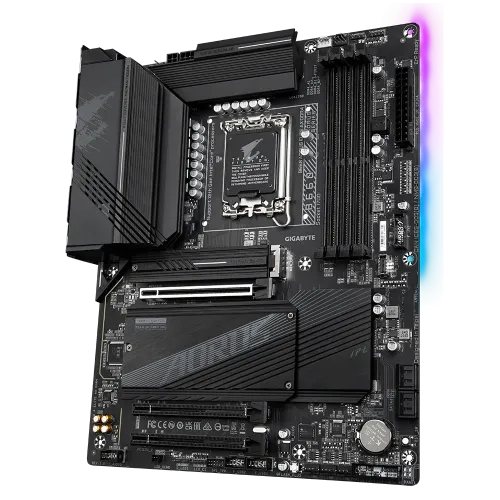

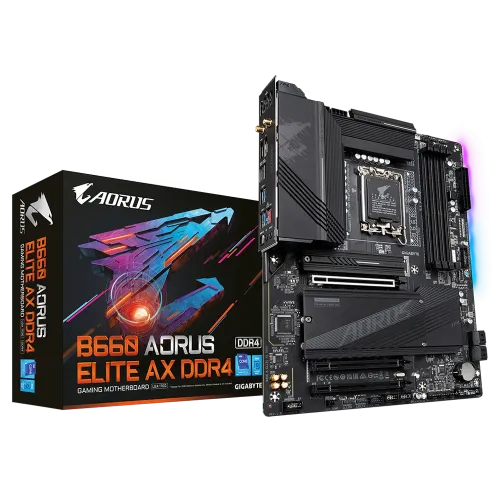

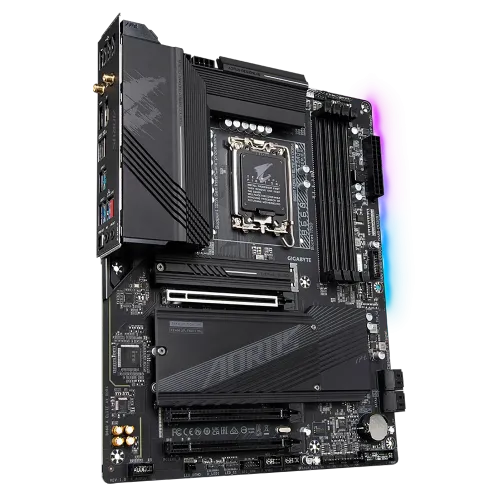

GIGABYTE B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard
Product code
8176
Brand
 Gigabyte
Product model B660 AORUS ELITE AX DDR4
Warranty 03 years
Total Reviews
 Based on 0 reviews. - Write a review
Based on 0 reviews. - Write a review

TBA

Out Of Stock

Add to Wish List Compare this Product
Payment Details
Contract Numbers
Mega Offer
Messenger
***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset Intel B660 Express Chipset
Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software. Support for S/PDIF Out
CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors L3 cache varies with CPU
BASIC INFORMATION
BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Motherboard
Others Special Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software
Expansion Slots
PCI PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 4.0 standard.) 2 x PCI Express x1 slots (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Memory
Memory Type DDR4
Slots 4 x DIMM
Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer to "Memory Support List" for more information.)
Maximum Memory up to 128 GB (32 GB single DIMM capacity) of system memory
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Connector & Ports
HDMI 1 x HDMI 2.0 port
Display Port 1 x DisplayPort

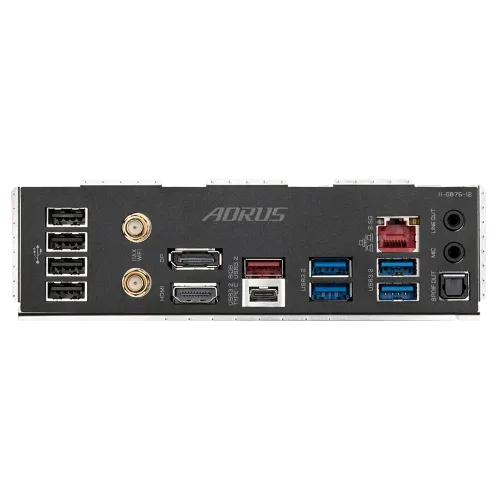

USB (s) 2 x USB Type-C ports with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports, available through the internal USB header Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Intel® Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 Intel Optane Memory Ready * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
Internal I/O Ports 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
WARRANTY INFORMATION
Warranty 3 years

GIGABYTE B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard

The GIGABYTE B660 AORUS ELITE AX DDR4 is a 12th Gen Motherboard from GIGABYTE. With technology moving so fast, GIGABYTE still keeps up with the latest trends and provides our customers with advanced features and the latest technology. GIGABYTE B660 Series motherboards come with upgraded power solutions, the latest storage standards, and outstanding connectivity to enable optimized performance for gaming. GIGABYTE B660 AORUS ELITE AX DDR4 features a fully Covered Thermal Design which features a high coverage MOSFET and integrated molding heatsinks to improve thermal efficiency with better airflow and heat exchange. it has an M.2 Thermal Guard. The M.2 Thermal Guard prevents throttling and bottlenecks from high-speed M.2 SSDs as it helps to dissipate heat before it becomes an issue. The 2X Copper PCBs design effectively lowers the component temperature by its high thermal conductivity and low impedance. The GIGABYTE B660 AORUS ELITE AX DDR4 lets you experience ultimate connection flexibility and blazing data-transfer speed with next-generation network and storage connectivity. GIGABYTE motherboard is bundled with several useful and intuitive software to help users to control every aspect of the motherboard and provides customizable lighting effects with outstanding aesthetics to fit your unique personality. GIGABYTE Ultra Durable features its product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slot to make each of them solid and durable. GIGABYTE B660 AORUS ELITE AX DDR4 Supports 12th Gen Intel Core Series Processors With Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs which feature 12+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS. It has a Fully Covered Thermal Design with High Coverage VRM Heatsink and a Fast 2.5 GbE GAMING LAN with Bandwidth Management. The Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard and USB 3.2 Gen1 Type-C for Fast and Versatile Connections alongside pre-installed IO Shield for easy and quick installation. The GIGABYTE B660 AORUS ELITE AX DDR4 also has high-Quality Audio Capacitors and Audio Noise guards. This gaming motherboard has RGB FUSION 2.0 supports Addressable LED & RGB LED Strips. It also supports Smart Fan 6; which Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. The Q-Flash Plus Update BIOS without Installing the CPU, Memory, and Graphics Card. The GIGABYTE B660 AORUS ELITE AX DDR4 offers 03 years of Warranty.


See More Motherboard



Quick Compare

Product Details
Product GIGABYTE B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARD ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen MATX Motherboard MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
Image GIGABYTE B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard MSI MAG B660 TOMAHAWK WIFI DDR4 ATX INTEL 12TH GEN MOTHERBOARD ASUS TUF GAMING B660M-PLUS WIFI D4 12th Gen MATX Motherboard MSI MAG B550 TOMAHAWK MAX WIFI AMD AM4 ATX Motherboard
Price 24,740৳ 26,900৳ 24,790৳ 25,770৳ 24,800৳ 27,390৳ 24,900৳
Model B660 AORUS ELITE AX DDR4 MAG B660 TOMAHAWK WIFI DDR4 TUF GAMING B660M-PLUS WIFI D4 MAG B550 TOMAHAWK MAX WIFI
Brand Gigabyte MSI ASUS MSI
Availability Out Of Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.
Based on 1 reviews.
Based on 2 reviews.
Based on 0 reviews.
View Details

Write a review

Note: HTML is not translated!
Bad Good

What is the GIGABYTE B660 AORUS ELITE AX DDR4 12th Gen ATX Motherboard price in bd 2024?

The Gigabyte B660 AORUS ELITE AX DDR4 Motherboard price in BD is not available at this moment. We will update the price soon. The Gigabyte B660 AORUS ELITE AX DDR4 Motherboard is Out Of Stock now in our store (Call us to know about details of this product). 14 customer buy this product From 2846 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Gigabyte B660 AORUS ELITE AX DDR4 online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
