Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard

Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
ঢাকার বাহিরে ডেলিভারির জন্য অগ্রিম ২০০ টাকা (bKash - 01973167989 / Nagad - 01912167988) এই নম্বর এ সেন্ডমানি করে ফেসবুকে অর্ডার নম্বর সহ স্ক্রিনশট দিন। প্রোডাক্টের অবশিষ্ট টাকা আপনি ক্যাশ অন ডেলিভারিতে পরিশোধ করবেন । প্রোডাক্ট স্টক অথবা দাম সংক্রান্ত যেকোনো বিষয়ে তথ্য জানতে আমাদের কে কল করুন (01973167985 / 01673991833) অথবা আমাদের ফেইসবুক পেজে মেসেজ করুন।
Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard
Product code
6902
Brand
Gigabyte
Product model B560M AORUS ELITE
Warranty 03 years
Total Reviews

TBA

***অর্ডার করার পূর্বে পন্যের স্টক ও ডেলিভারি সম্পর্কে জেনে নেয়ার অনুরোধ করা যাচ্ছে।
Basic Information
Chipset Intel B560 Express Chipset
Audio 6 X Audio Jacks Realtek Audio Codec High Definition Audio 2/4/5.1/7.1-Channel
BASIC INFORMATION
Supported CPU 11th Generation Intel Core I9 Processors / Intel Core I7 Processors / Intel Core I5 Processors 10th Generation Intel Core I9 Processors / Intel Core I7 Processors / Intel Core I5 Processors / Intel Core I3 Processors/ Intel Pentium Processors / Intel Celeron Processors * Limited To Processors With 4 MB Intel Smart Cache, Intel Celeron G5xx5 Family.
BIOS 1 X 256 Mbit Flash Use Of Licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 24.4cm X 24.4cm
Motherboard

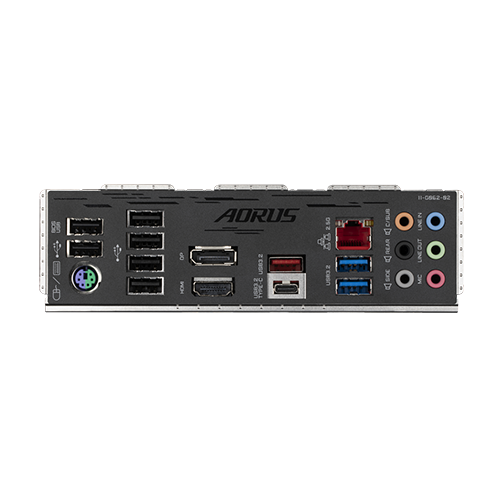

External I/O Ports 1 X PS/2 Keyboard/Mouse Port 1 X USB Type-C® Port, With USB 3.2 Gen2 Support 1 X USB 3.2 Gen2 Type-A Port (Red) 2 X USB 3.2 Gen1 Ports 6 X USB 2.0/1.1 Ports 1 X DisplayPort 1 X HDMI Port 1 X RJ-45 Port 6 X Audio Jacks
Memory
Slots PCI 1 X PCI Express X16 Slot, Running At X16 (PCIEX16) * For Optimum Performance, If Only One PCI Express Graphics Card Is To Be Installed, Be Sure To Install It In The PCIEX16 Slot. (The PCIEX16 Slot Conforms To PCI Express 4.0 Standard.) *Supported By 11th Generation Processors Only. 1 X PCI Express X16 Slot, Running At X4 (PCIEX4) 1 X PCI Express X1 Slot (The PCIEX4 And PCIEX1 Slots Conform To PCI Express 3.0 Standard.) M.2 Socket 2 X M.2 Socket 3 Connectors
Memory Type Dual Channel Memory Architecture Slots 4 X DDR4 DIMM 11th Generation Intel Core I9/I7/I5 Processors: Support For DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Memory Modules 10th Generation Intel Core I9/I7 Processors: Support For DDR4 2933/2666/2400/2133 MHz Memory Modules 10th Generation Intel Core I5/I3 /Pentium/Celeron Processors: Support For DDR4 2666/2400/2133 MHz Memory Modules 4 X DDR4 DIMM Sockets Supporting Up To 128 GB (32 GB Single DIMM Capacity) Of System Memory Dual Channel Memory Architecture Support For ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules (Operate In Non-ECC Mode) Support For Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules Support For Extreme Memory Profile (XMP) Memory Modules Maximum Mamory 128 GB
Graphics
Graphics Integrated Graphics Processor-Intel HD Graphics Support: 1 X HDMI Port, Supporting A Maximum Resolution Of 4096x2160@30 Hz * Support For HDMI 1.4 Version And HDCP 2.3. 1 X DisplayPort, Supporting A Maximum Resolution Of 4096x2304@60 Hz * Support For DisplayPort 1.2 Version, HDCP 2.3
Connector & Ports
LAN Realtek 2.5GbE LAN Chip (2.5 Gbit/1 Gbit/100 Mbit)
Supported Storage CPU: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280 PCIe 4.0 X4/X2 SSD Support) (M2P_CPU)* * Supported By 11th Generation Processors Only. Chipset: 1 X M.2 Connector (Socket 3, M Key, Type 2260/2280/22110 SATA And PCIe 3.0 X4/X2 SSD Support) (M2A_SB) 6 X SATA 6Gb/S Connectors * Refer To "1-7 Internal Connectors," For The Installation Notices For The M.2 And SATA Connectors. Intel® Optane™ Memory Ready
Internal I/O Ports 1 X 24-Pin ATX Main Power Connector 1 X 8-Pin ATX 12V Power Connector 1 X CPU Fan Header 1 X Water Cooling CPU Fan Header 3 X System Fan Headers 2 X Addressable LED Strip Headers 2 X RGB LED Strip Headers 6 X SATA 6Gb/S Connectors 2 X M.2 Socket 3 Connectors 1 X Front Panel Header 1 X Front Panel Audio Header 1 X USB Type-C® Header, With USB 3.2 Gen 1 Support 1 X USB 3.2 Gen 1 Header 2 X USB 2.0/1.1 Headers 2 X Thunderbolt™ Add-In Card Connectors 1 X Trusted Platform Module Header (For The GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 Module Only) 1 X Serial Port Header 1 X Clear CMOS Jumper 1 X Q-Flash Plus Button
USB Port Chipset: 1 X USB Type-C Port On The Back Panel, With USB 3.2 Gen2 Support 1 X USB 3.2 Gen2 Type-A Ports (Red) On The Back Panel 3 X USB 3.2 Gen1 Ports (2 Ports On The Back Panel, 1 Port Available Through The Internal USB Header) 2 X USB 2.0/1.1 Ports On The Back Panel Chipset+USB 3.2 Gen 1 Hub: 1 X USB Type-C Port With USB 3.2 Gen1 Support, Available Through The Internal USB Header 2 X USB 3.2 Gen1 Ports Available Through The Internal USB Header Chipset+ 2 USB 2.0 Hubs: 8 X USB 2.0/1.1 Ports (4 Ports On The Back Panel, 4 Ports Available Through The Internal USB Headers)
WARRANTY INFORMATION
Warranty 03 Years

Gigabyte B560M AORUS ELITE Intel 10th And 11th Gen MATX Motherboard

The Gigabyte B560M AORUS ELITE Motherboard From Gigabyte. Gigabyte B560M AORUS ELITE Motherboard Supports 11th And 10th Gen Intel Core Series Processors. Gigabyte B560M AORUS ELITE Motherboard Has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. Gigabyte B560M AORUS ELITE Motherboard Features Direct 12+1 Phases Digital VRM With Low RDS(On) MOSFETs. It Has Shielded Memory Routing For Better Memory Overclocking. It Comes With A Fully Covered Thermal Design With High Coverage MOSFET Heatsinks. Gigabyte B560M AORUS ELITE Motherboard Is Powered By A Fast 2.5GbE LAN With Bandwidth Management. It Supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 X4 M.2 With Thermal Guard It Comes With Rear USB 3.2 Gen2 Type-C And Front USB3.2 Gen1 Type-C For Connecting Devices. Gigabyte B560M AORUS ELITE Motherboard Has Pre-Installed IO Shield For Easy And Quick Installation. RGB FUSION 2.0 With Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers With FAN STOP. Q-Flash Plus Update BIOS Without Installing The CPU, Memory, And Graphics Card

Direct 12+1 Phases Digital VRM Solution With Low RDS(On) MOSFET

Cleaner And More Efficient Power Delivery To The CPU With Better Thermal Performance Ensure Stability Under High CPU Frequencies And Heavy Loading.

ADVANCED THERMAL SOLUTION

Gigabyte B560M AORUS Uses High Performance Fully Covered Thermal Design With High Coverage MOSFET Heatsinks And Thick Thermal Pad, Providing Ultimate MOSFET Cooling Performance For Enthusiasts, Overclockers And Gamers.

High-Quality Onboard Audio Design

Delivers High-Quality Sound Resolution And Sound Expansion To Create The Most Realistic Sound Effects For Professional Gamers.

DEFINITIVE AESTHETICS

Gigabyte B560M AORUS ELITE Features RGB FUSION 2.0 And Offers Users The Option To Control Onboard, External Light Strips, And/Or AORUS Devices With RGB/ Addressable RGB LEDs To Make Their PC More Unique And Stylish.

ULTRA-DURABLE

GIGABYTE Is Reputable For Its Product Durability And High-Quality Manufacturing Process. Needless To Say, We Use The Best Components We Can Find For The B560M AORUS Motherboard And Reinforce Every Slot To Make Each Of Them Solid And Durable.

GIGABYTE BIOS & APP CENTER

Good Software Goes Hand In Hand With Perfect Hardware. GIGABYTE Motherboard Bundled Several Useful And Intuitive Software To Help Users To Control Every Aspect Of The Motherboard.
