| BASIC INFORMATION | ||
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| CPU | AMD Socket AM4, support for: AMD Ryzen 5000 series/ 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors |
|
| Memory | ||
| Memory | Type: Dual channel memory architecture Slots: 4 x DIMM Supported Memory: Support for DDR4 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 128 GB |
|
| Storage | Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 2 x SATA 6Gb/s connectors (ASATA3 1/2) Integrated in the Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x2 SSD support) (M2B_SOCKET) 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3) |
|
| Graphics | ||
| Graphics | Graphics: Integrated Graphics Processor: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Max Shared Memory: 16 GB |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| LAN | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header |
|
| USB Port | Integrated in the CPU: 4 x USB 3.1 Gen 1 ports on the back panel Integrated in the Chipset: 2 x USB 3.1 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB headers 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| WARRANTY INFORMATION | ||
| Warranty | 03 years | |
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.

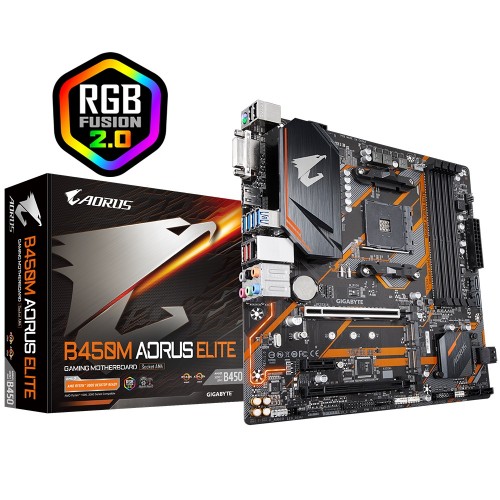

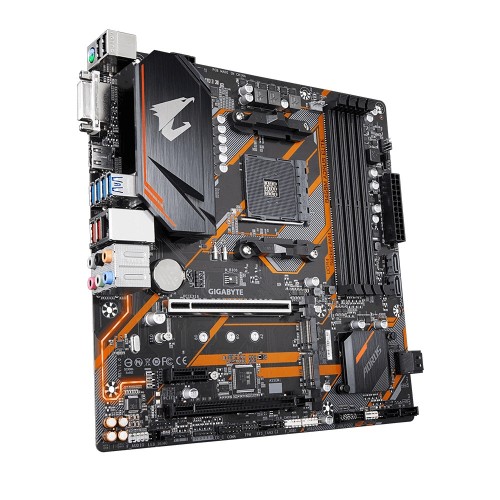

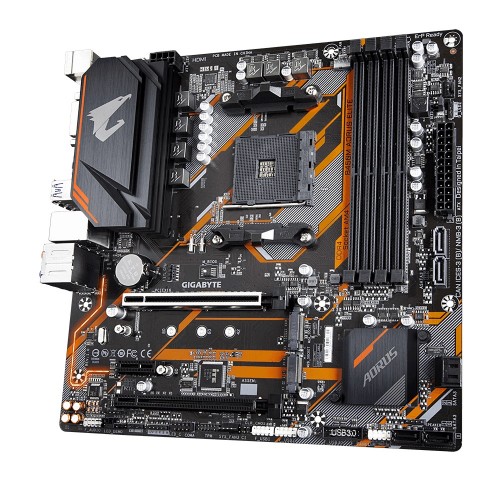

Raise your computing power to the next level with the Gigabyte B450M AORUS Elite AM4 Micro ATX Motherboard. Designed for first-, second-, and third-generation AMD Ryzen processors with the AM4 socket, this motherboard features the B450M chipset to power gaming, content creation, entertainment, and other demanding computing tasks. Up to 128GB of dual-channel DD4 RAM at 3600 MHz when overclocking can be installed across four memory slots for efficient multitasking and run high-end games and applications. This durable Micro ATX motherboard also has 2 M.2 SSD slot and supports up to six SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Installing an Intel Optane module can enhance hard drive performance even further for faster load times.

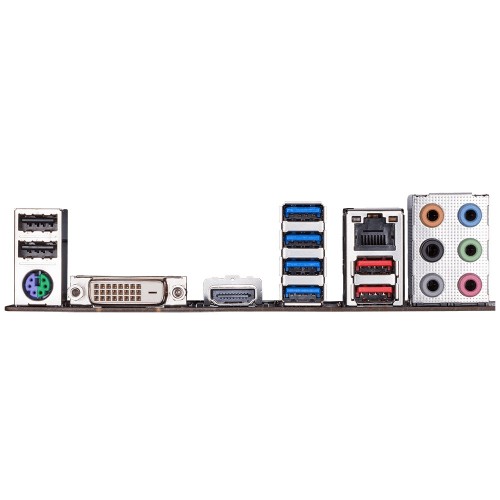

Its two PCIe x16 slots support both AMD Quad-GPU and 2-Way CrossFire video card configurations to boost frame rates for games, speed up video rendering, and more. Additionally, you can connect multiple displays to the built-in HDMI and DVI-D ports, which are driven by the Ryzen CPU's integrated Radeon Vega graphics. You can also install a compatible add-on to the PCI Express x1 slot. The back panel features two USB 3.1 Gen 2 Type-A ports for high-speed connections to compatible storage drives and other peripherals. Additional features include multiple RGB lighting headers that are controlled using RGB Fusion 2.0, Realtek ALC892 7.1-channel audio, and a gaming-optimized Gigabit Ethernet port. Windows 7 or 10 64-bit is required to take advantage of all of the motherboard's features.
The motherboard includes an M.2 thermal guard to quickly dissipate heat from the SSD and help to avoid speed throttling.
Smart Fan 5 allows users to interchange fan headers to correspond with the five thermal sensors across the motherboard so that the system stays cool while maintaining a high level of performance for games and other demanding applications.
Fan Stop lets you take control of your computer's noise level by allowing specified fans to halt when the system drops to a designated temperature level. These settings may be customized according to your preferences.
Hybrid Fan Headers automatically detect the connected liquid- or air-cooling systems, enabling Smart Fan 5 to monitor information such as flow-rate
