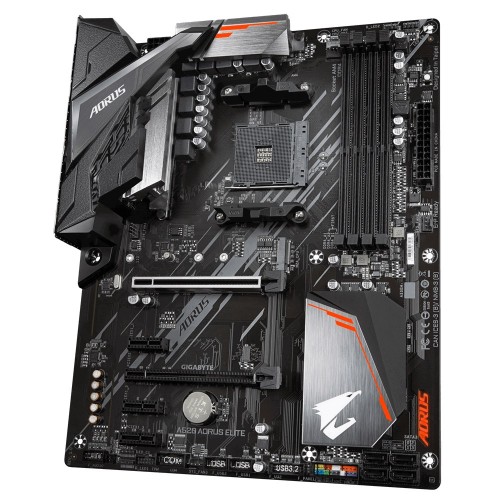

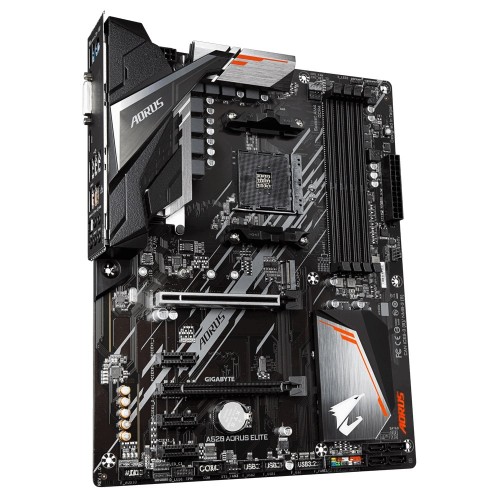

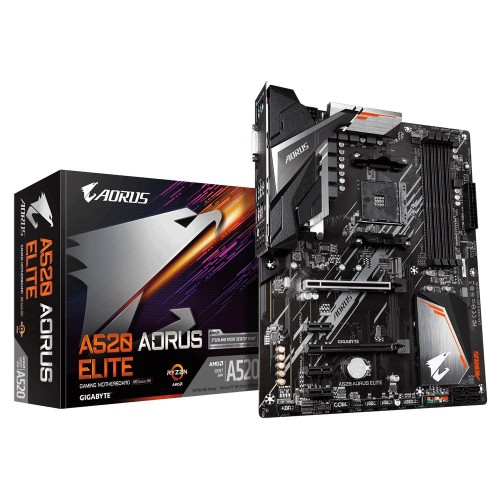

Gigabyte A520 Aorus Elite AMD AM4 ATX Gaming Motherboard
  • Gigabyte A520 Aorus Elite AMD AM4 ATX Gaming Motherboard
  • Gigabyte A520 Aorus Elite AMD AM4 ATX Gaming Motherboard
  • Gigabyte A520 Aorus Elite AMD AM4 ATX Gaming Motherboard

Gigabyte A520 Aorus Elite AMD AM4 ATX Gaming Motherboard

Price: Up Coming
Status: Up Coming
Product Code: 2876
Brand: Gigabyte
Key Features
  • AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
  • Smart Fan 5 Features
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2
  • 5+3 Phases Pure Digital VRM Solution
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

Basic Information
Chipset AMD A520
Audio Realtek ALC1200 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out
CPU AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd
Generation Processors
BASIC INFORMATION
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor ATX Form Factor; 30.5cm x 24.4cm
Memory
Memory Type:

Dual channel memory architecture

Slots:

4 x DDR4 DIMM

Supported Memory:

3rd Gen AMD Ryzen Processors:

Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.)
/ 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3rd Gen AMD Ryzen with Radeon Graphics processors:

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.)
/ 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133
MHz memory modules

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
memory modules

Support for Extreme Memory Profile (XMP) memory modules

Maximum Memory:

128 GB
Storage CPU:

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110
SATA and PCIe 3.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10
Graphics
Graphics Graphics:

Integrated into the 3rd Generation AMD Ryzen with Radeon
Graphics processors:

1 x DVI-D port, supporting a maximum resolution of
1920x1200@60 Hz

1 x HDMI port, supporting a maximum resolution of
4096x2160@60 Hz

Max Shared Memory:

16 GB
Connector & Ports
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

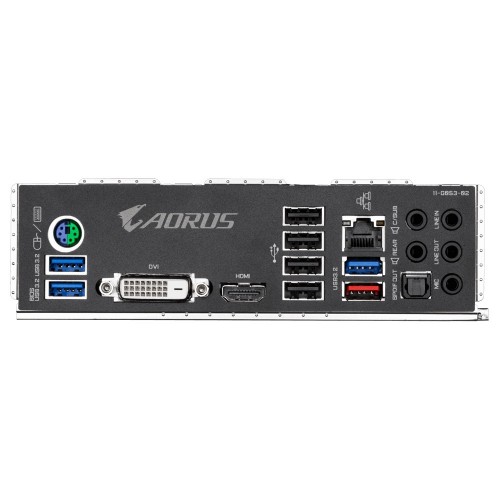

USB Port CPU:

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

3 x USB 3.2 Gen 1 ports on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports on the back panel
WARRANTY INFORMATION
Manufacturing Warranty 03 years

Description :

Gigabyte A520 Aorus Elite

  • Supports AMD Ryzen™ 5000 Series / 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
  • AMP-UP Audio with ALC1200 and High End Audio Capacitors
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • HDMI, DVI-D Ports for Multiple Display
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Pre-installed IO Shield for Easy and Quick Installation

    DESIGN CONCEPT
    FEROCIOUS TALONS
    The AORUS Core is inspired by the falcon's aggressive nature and hunting prowess. The falcon uses its razor sharp talons to swiftly strike down its prey with exceptional efficiency and precision, qualities that are exemplified in the fine details of AORUS design.
    PERFORMANCE
    GIGABYTE AORUS series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
    CONNECTIVITY
    Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
    Smart Fan 5
    With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
    Multi-Zone Light Show Design
    Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
