| BASIC INFORMATION | ||
| Supported CPU | Support For 12th Generation Intel Core™ I9/ I7/ I5/ I3 Processors And Intel Pentium Processors/ Intel Celeron Processors In The LGA1700 Package |
|
| Chipset | Intel H610 | |
| Graphics | Supports DX12 Supports HDCP |
|
| Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2933/ 3200 2 X DDR4 DIMM Memory Slot, Max. Supports Up To 64 GB Memory Each DIMM Supports Non-ECC 4/8/16/32GB DDR4 Module Support Intel Extreme Memory Profile (XMP) Memory Modules |
|
| Audio | (ALC897) 7.1 Channels, High Definition Audio | |
| Key Features | ||
| Form Factor | Micro ATX | |
| Network & Wireless Connectivity | ||
| LAN | Intel I219V 10/ 100/ 1000 Mb/S Auto Negotiation, Half / Full Duplex Capability |
|
| Memory | ||
| Slots | 1x PCIe 3.0 X1 Slot 1x PCIe 4.0 X16 Slot |
|
| Connector & Ports | ||
| HDMI | Supports HDMI 4K2K | |
| Supported Storage | Total Supports 1x M.2 Socket And 4 X SATA III (6Gb/S) Ports 4 X SATA III Connector (6Gb/S) 1 X M.2 (M Key) Socket (M2_PCIEG3_32G_ SATA): Supports M.2 Type 2240 /2260 /2280 SSD Module Supports PCI-E 3.0 X4 (32Gb/S) & SATA SSD |
|
| Internal I/O Ports | 4 X SATA III Connectors (6Gb/S) 2 X USB 2.0 Headers (Each Header Supports 2 USB 2.0 Ports) 1 X USB 3.2 (Gen1) Header (Each Header Supports 2 USB 3.2 (Gen1) Ports) 1 X 8-Pin Power Connector 1 X 24-Pin Power Connector 1 X CPU Fan Connector 1 X System Fan Connector 1 X Front Panel Header 1 X Front Audio Header 1 X Internal Stereo Speaker Header 1 X Clear CMOS Header 1 X COM Port Header 1 X TPM Header |
|

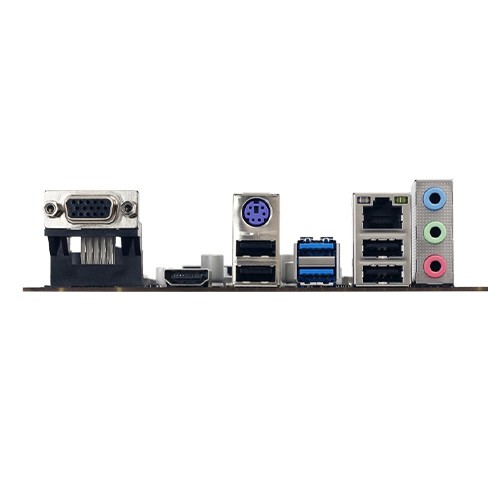

| USB Port | 4 X USB 3.2 (Gen1) Ports (2 On Rear I/Os And 2 Via Internal Headers) 8 X USB 2.0 Ports (4 On Rear I/Os And 4 Via Internal Headers) |
|
| Physical Specifications | ||
| Dimensions | 20.8cm X 23.6cm ( W X L ) | |
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

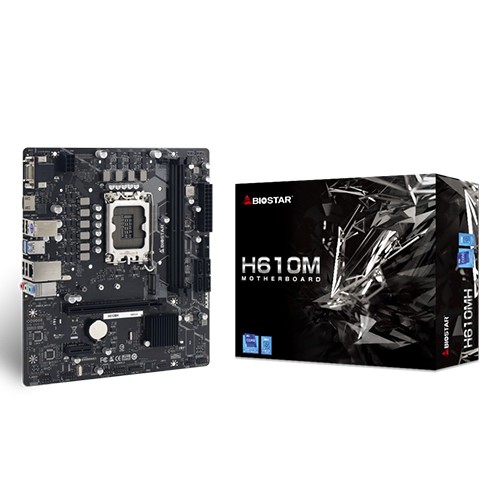

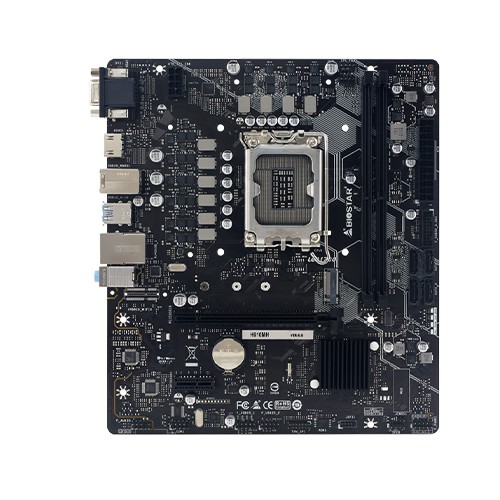

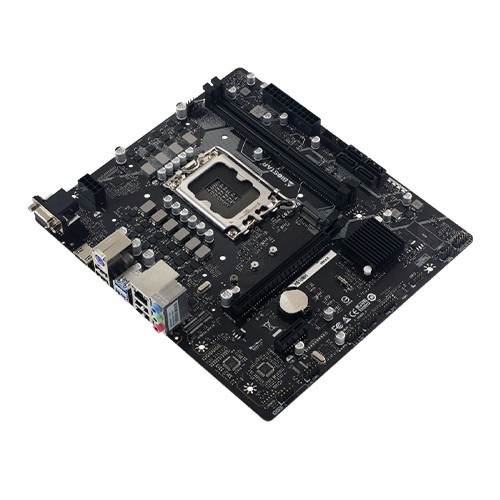

Biostar H610MH 12th Gen ATX Motherboard DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we’ve redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware. Onboard HDMI connector allows full video & audio support. Biostar H610mh Motherboard has industry-leading high definition video quality. Unlike ordinary LAN solution, Intel® GbE LAN offers fewer CPU resource consumption and more bandwidth stability. Thus, Intel® LAN is the best choice for performance seekers. PCIe M.2 32Gb/s is the latest storage interface, it delivers the highest bandwidth and lower latency. It’s 3 times faster compared with PCIe M.2 10Gb/s. SATAIII 6Gbps provides a higher bandwidth to retrieve and transfer HD media. With this super speed data transfer, SATAIII allows an incredible data boost which is 2x faster than the SATA II. PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces.
