| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package | |
| Chipset | Intel B660 | |
| Form Factor | Micro ATX Form Factor Dimension: 23.6cm x 20.8cm ( W x L ) | |
| Audio | ALC897 7.1 Channels, High Definition Audio |
|
| Expansion Slots | ||
| PCI | INTEL 12th/13th Processors 1 x PCIe 4.0 x16 Slot (x16 mode) INTEL B660 Chipset 1 x PCIe 3.0 x1 Slot |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DIMM | |
| Supported Memory | Supports Dual Channel DDR4 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC) 2 x DDR4 DIMM Memory Slot, Max. Each DIMM supports non-ECC 4/8/16/32GB DDR4 module Support Intel Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Up to 64 GB | |
| Graphics | ||
| Graphics | Supports DX12 Supports HDCP |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |

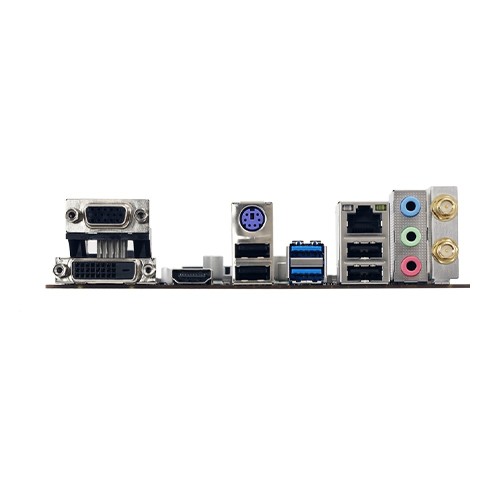

| USB (s) | 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers) 8 x USB 2.0 ports(4 on rear I/Os and 4 via internal headers) |
|
| LAN Port (s) | Intel I219V 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability |
|
| Supported Storage | Total supports 1 x M.2 socket and 4x SATA III (6Gb/s) ports Intel B660 Chipset 1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA): Supports M.2 Type 2242 /2260 /2280 SSD module Supports PCIe 3.0 x 4 (32Gb/s) & SATA lll (6Gb/s) SSD 4 x SATA III Connector (6Gb/s) : Supports AHCI |
|
| Audio | 3 x Audio Jack | |
| Internal I/O Ports | 4 x SATA III Connector (6Gb/s) 1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module and Intel CNVi 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports) 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports) 1 x 8-Pin Power Connector 1 x 24-Pin Power Connector 1 x CPU Fan Connector 1 x System Fan Connector 1 x Front Panel Header 1 x Front Audio Header 1 x Internal Stereo Speaker Header 1 x Clear CMOS Header 1 x COM Port Header |
|
| TPM (Trusted Platform Module ) | 1 x TPM Header | |
| Wireless Communication module | 1 x WIFI Antenna Port | |
| Others | ||
| Bundled Software | BullGuard | |
| Warranty Information | ||
| Warranty | 3 years | |

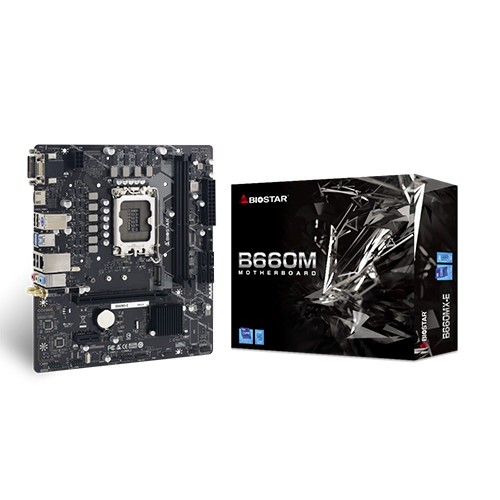

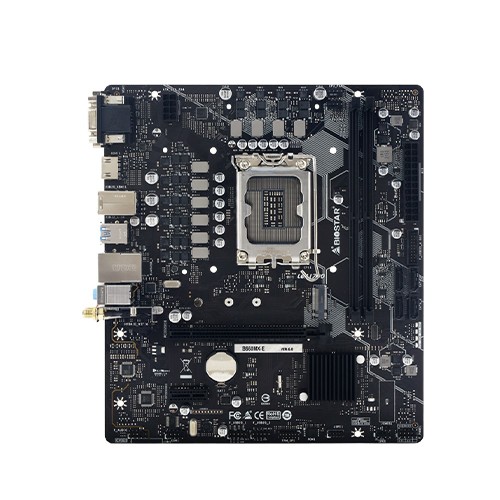

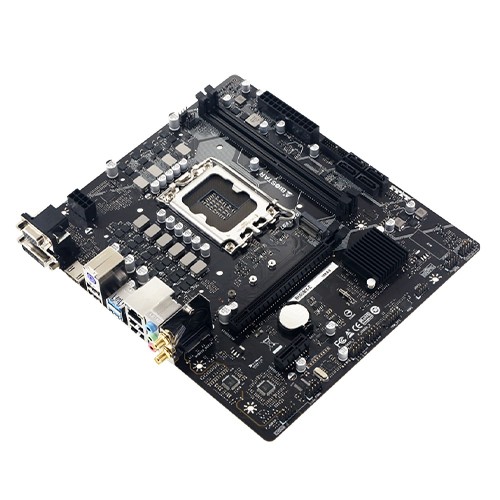

Biostar B660MX-E Motherboard Supports 12th Generation Intel Core™ Processor. It has Intel B660 single chip architecture. Biostar B660MX-E 12th Gen Intel Motherboard also Supports 2-DIMM DDR4- 1866/ 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3800(OC)/ 4000(OC) up to 64 GB Memory, Supports PCIe 4.0, Supports PCIe M.2 3.0 (32Gb/s), Supports HDMI 4K2K, Supports USB 3.2 Gen1, Support WiFi 6 & 6E module (No WiFi card included). Biostar B660MX-E 12th Gen Intel Motherboard Delivers Stable Power With 100% Fixed Voltage. Ensures All Critical Components Are Under Protected.Offers Excellent Precision, Performance And Reliability
With the Intel® B660 chipset and the 12th generation Intel® Core™ i9/ i7/ i5/ i3 processors and Intel® Pentium® processors, you will immediately be at the forefront of the battlefield, fueled by mind-blowing power and performance. From content creation to gaming, the Intel B660 chipset provides you with the power and performance you need.
The new 4K2K resolution enables high-definition image display with four times the resolution of full HD, 4K2K display is faithfully express bright, highly detailed content that fills the entire screen with lifelike images. Connectivity with PCs via a single HDMI cable for displaying 4K2K data.
DVI is better than VGA for LCD displays since it is digital while VGA is analog. For LCD displays, the picture is digitized pixel per pixel. Through DVI, the panel gets data for each pixel, so the picture generated in the Graphics device matches the pixels on the panel itself.
DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.
PCIe 4.0 is the next evolution of the ubiquitous and general-purpose PCI Express I/O standard. At 16GT/s bit rate, the interconnect performance bandwidth is doubled over PCIe 3.0, while preserving compatibility with software and mechanical interfaces.
USB 3.2 Gen1 delivers a compelling performance boosts and can be used to connect multiple devices without worrying about compatibility. It is capable of data transfer speeds up to 5Gbps and backwards compatible with all existing USB products.
