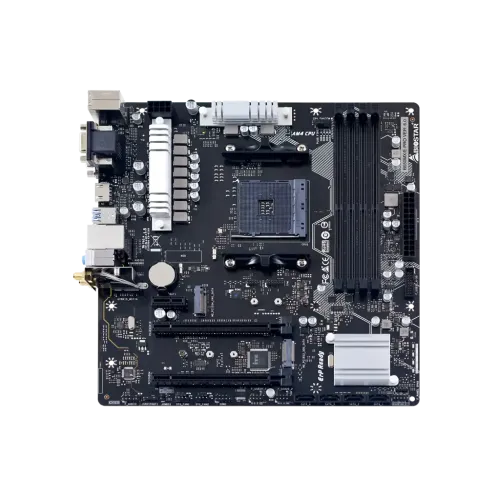

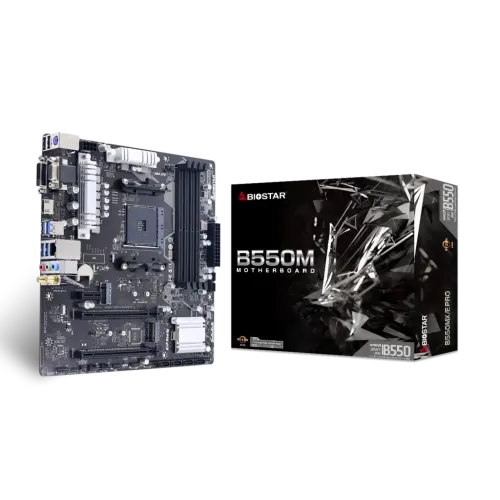

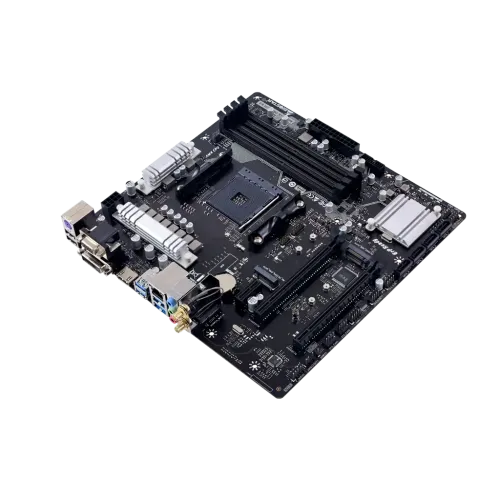

BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard
  • BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard
  • BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard
  • BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard

BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard

Price: 11,500৳ 12,650৳
Status: In Stock
Product Code: 10574
Brand: Biostar
Key Features
  • Model: B550MX/E PRO
  • Supported CPU: Ryzen 3rd Gen and 4th Gen processors
  • Supported RAM: 2x DIMM, DDR4 4933+(OC)
  • Graphics Output: 1 x HDMI, 1 x VGA Port
  • Features: Supports WiFi 6 module
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

BASIC INFORMATION
Supported CPU

Socket AM4 supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Future) processors
Support for future AMD Ryzen processors with BIOS update
Form Factor Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )
Basic Information
Chipset AMD B550
Audio

3 x Audio Jack
Expansion Slots
PCI

AMD Ryzen 5000/3000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Series Processors
1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)
AMD B550 Chipset
1 x PCIe 3.0 x16 Slot (x4 mode)
1 x PCIe 3.0 x1 Slot
M.2 Socket 2 x M.2 sockets
Memory
Memory Type DDR4
Slots 4 x DIMM
Supported Memory

4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
Maximum Memory Up to 128GB
Storage

Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports
4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD
1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD
Graphics
Graphics

By CPU model
Supports DX12
Supports HDCP
Connector & Ports
HDMI 1 x HDMI Port
LAN

Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
Wireless Supports WiFi 6 module
Internal I/O Ports

4 x SATA III (6.0Gb/s) Connectors
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
2 x System Fan Connectors
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x S/PDIF out Connector
1 x COM Port Header
1 x TPM Header
1 x SYSTEM Status LED
USB Port

4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
VGA 1 x VGA Port
Others
Bundled Software BullGuard
Special Features

A.I FAN
PCIe M.2 4.0
WARRANTY INFORMATION
Warranty 3 Years

Description :

BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard

The BIOSTAR B550MX/E PRO is a high-performance micro ATX motherboard designed for AMD AM4 processors. It offers excellent compatibility and features to meet the needs of gamers, content creators, and PC enthusiasts. With its advanced specifications and cutting-edge technologies, this motherboard provides a reliable foundation for a powerful computer system. The motherboard supports both AMD Ryzen 3rd Gen (Matisse / Renoir) and 4th Gen (Vermeer) processors, ensuring compatibility with a wide range of CPUs. It utilizes the AMD B550 single-chip architecture, which enhances overall system performance and efficiency. The BIOSTAR B550MX/E PRO is its memory support. It accommodates up to four DIMM slots, supporting high-speed DDR4 memory modules with frequencies ranging from 2133MHz to an impressive 4933MHz (when overclocked). The maximum memory capacity supported is 128GB, allowing for smooth multitasking and seamless operation of memory-intensive applications. To meet the demands of fast storage solutions, the motherboard includes PCIe M.2 4.0 slots. This technology enables blazing-fast data transfer speeds of up to 64Gb/s, allowing for rapid access to files and reduced loading times for applications and games. The motherboard supports HDMI 4K resolution, ensuring a crisp and vibrant visual experience when connected to compatible displays. This feature is particularly appealing to gamers and multimedia enthusiasts who desire immersive visuals and accurate color reproduction. The BIOSTAR B550MX/E PRO offers built-in WiFi 6 module support, providing fast and reliable wireless connectivity. WiFi 6 (802.11ax) delivers higher speeds, increased network capacity, and improved efficiency compared to previous generations, enabling seamless streaming, online gaming, and file transfers. The BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard combines powerful performance, versatile connectivity options, and advanced features to deliver a superior computing experience. Whether you're a gamer, content creator, or power user, this motherboard provides the necessary tools to build a high-performing and future-proof PC system.
