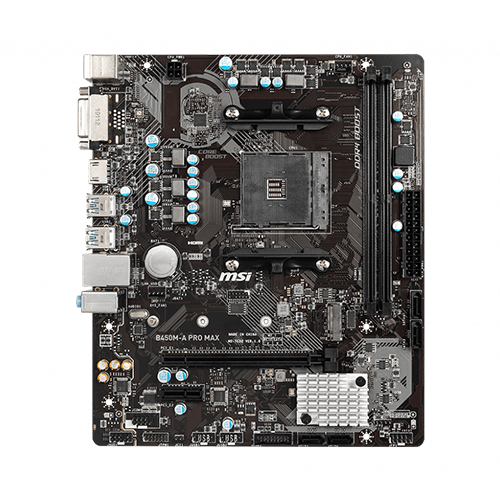

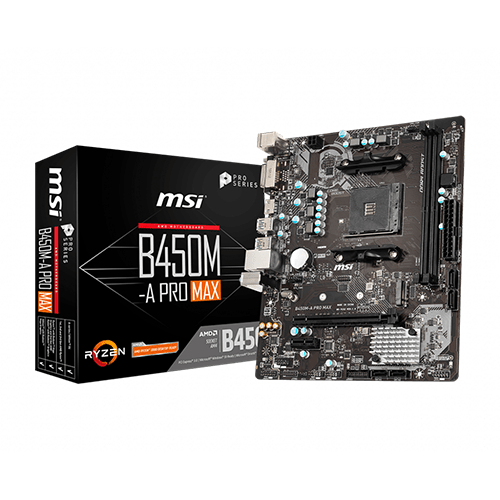

MSI B450M-A PRO MAX AMD AM4 MOTHERBOARD

MSI B450M-A PRO MAX AMD AM4 MOTHERBOARD

The MSI B450M-A PRO MAX is an AMD AM4 motherboard designed to deliver powerful performance and versatility for both casual users and enthusiasts. With its mATX form factor, this motherboard strikes a balance between space-saving and functionality, making it an excellent choice for compact gaming rigs and home entertainment systems.The B450 chipset provides a solid foundation for supporting various AMD processors, including 1st, 2nd, and 3rd Gen AMD Ryzen CPUs, Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics, Athlon with Radeon Vega Graphics, and Athlon X4 Desktop Processors. This wide compatibility ensures that users can choose the processor that best suits their needs and budget, making the motherboard suitable for a range of applications, from gaming to content creation.Memory-wise, the MSI B450M-A PRO MAX supports DDR4 RAM with a maximum capacity of 32GB. It offers two DDR4 memory slots, supporting a base speed of 1866/2133/2400/2667MHz (JEDEC standard). For AMD Ryzen Gen3 CPUs (R5/R7/R9), higher speeds are achievable, ranging from 2667MHz up to an impressive 4133MHz (by A-XMP OC MODE). Users with other AMD CPUs can still enjoy overclocked memory speeds up to 3200MHz (by A-XMP OC MODE). The dual-channel memory architecture enhances data transfer rates and overall system performance.For graphics connectivity, the motherboard provides a DVI-D port with a maximum resolution of 1920x1200@60Hz and an HDMI 1.4 port capable of supporting up to 4096x2160@24Hz. The integrated graphics can share up to 2048MB of memory, which is useful for casual gaming and multimedia tasks.When it comes to storage, the MSI B450M-A PRO MAX doesn't disappoint. The AMD B450 chipset offers four SATA 6Gb/s ports with support for RAID 0, RAID 1, and RAID 10 configurations, making it possible to create redundant and high-performance storage arrays. Additionally, there's an M.2 slot (Key M) supporting PCIe 3.0 x4 and SATA 6Gb/s interfaces, allowing for fast storage options, such as NVMe SSDs. The motherboard is also compatible with various M.2 storage devices, including 2242, 2260, 2280, and 22110 sizes.Connectivity-wise, the Realtek 8111H Gigabit LAN ensures reliable and fast network connections, while the USB ports provide ample options for peripherals. With six USB 3.2 Gen1 ports and six USB 2.0 ports, users can easily connect various devices and accessories, from external hard drives to gaming controllers.

Overall, the MSI B450M-A PRO MAX AMD AM4 motherboard offers a well-rounded set of features, making it a strong contender for users seeking a budget-friendly yet capable platform for their AMD-based builds. Its robust chipset, memory support, storage options, and connectivity features make it a versatile and reliable foundation for gaming, content creation, and everyday computing needs. With a three-year warranty, users can enjoy peace of mind knowing they are backed by MSI's commitment to quality and support

Features:

• Supports 1st, 2nd and 3rd Gen AMD® Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD® Ryzen™with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Desktop Processors for Socket AM4
• Supports DDR4 Memory, up to 4133 (OC) MHz
• Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
• Audio Boost: Reward your ears with studio grade sound quality.
• X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
• Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.

MSI B450M-A PRO MAX AMD AM4 MOTHERBOARD REVIEW:
