| BASIC INFORMATION | ||
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information | |
| Form Factor | ATX Form Factor 12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | Realtek ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature : - Exclusive DTS Custom for GAMING Headsets. - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity - Audio Cover: Effective shielding preserves the integrity of audio signals to ensure best quality. |
|
| CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors | |
| Memory | ||
| Memory | Type: DDR4 Slots: 4 x DIMM Supported Memory: 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Dual Channel Memory Architecture Maximum Memory: 128GB |
|
| Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen / 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset : 1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280/ 22110 (PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | Integrated Graphics in the 3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Multi-VGA output support : HDMI/ DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz 3rd and 2nd Gen AMD Ryzen /3rd, 2nd and 1st Gen AMD Ryzen with Radeon Graphics Processors Supports AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| LAN | 1 x LAN (RJ45) port Intel I225-V 2.5Gb Ethernet ASUS Turbo LAN Utility TUF LANGuard |
|
| Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
|
| USB Port | 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-C) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

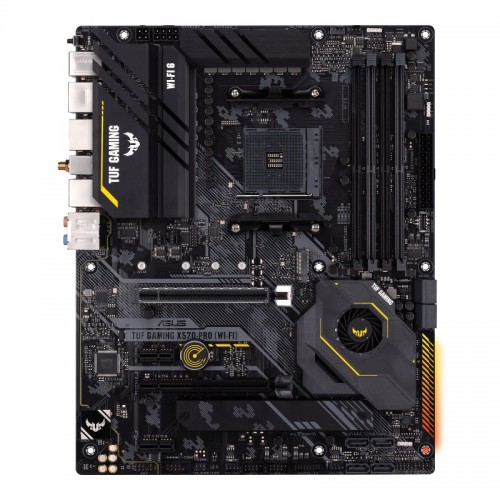

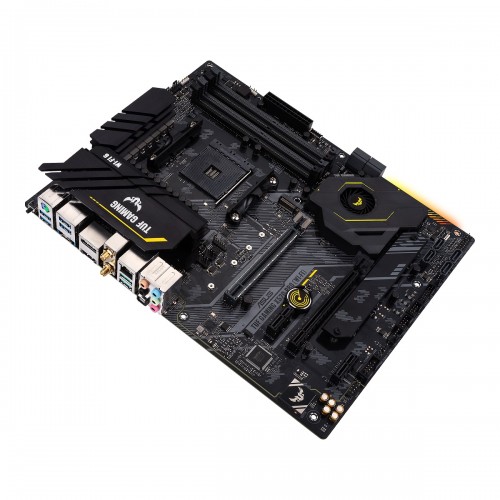

TUF Gaming X570-Pro (Wi-Fi) distills the essential elements of the latest AMD platform and combines them with game-ready features and proven durability. Engineered with military-grade components, upgraded power solutions and a comprehensive set of cooling options, these motherboards deliver rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, the best compatibility, and complementary aesthetics from components to case.
TUF Z390 Plus Gaming
AMD AM4 socket: Ready for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
Enhanced Power Solution: 12+2 Dr. MOS power stages, 6-layer PCB, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
Comprehensive Cooling: Active chipset heatsink, VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
Next-Gen Connectivity: Dual PCIe 4.0 M.2 and USB 3.2 Gen 2 Type-A /Type-C

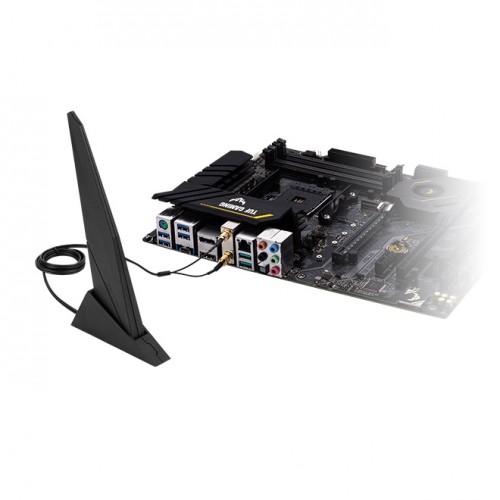

Gaming Networking: Exclusive onboard 2.5G Intel® LAN, Intel® WiFi 6, Bluetooth 5.1, TUF LANGuard and TurboLAN technology
Realtek S1200A Codec: Pristine audio quality with unprecedented 108dB signal-to-noise ratio for stereo line-out and 103dB SNR for line-in
Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips
TUF Gaming Alliance: ASUS hardware ecosystem ensures the best compatibility and complementary aesthetics from components to case
