| Basic Information | ||
| Chipset | AMD X670 | |
| Audio | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High-quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Audio shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| BASIC INFORMATION | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors -1 x PCIe 5.0 x16 slot AMD X670 Chipset -1 x PCIe 4.0 x16 slot (supports x4 mode) -1 x PCIe 4.0 x4 slots |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR5 | |
| Memory | ||
| Slots | 4 x DIMM | |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports max. 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Display Port | 1x DisplayPort | |
| USB (s) | Rear USB (Total 10 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports |
|
| LAN | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| RAID | AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Supported Storage | Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports* AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|

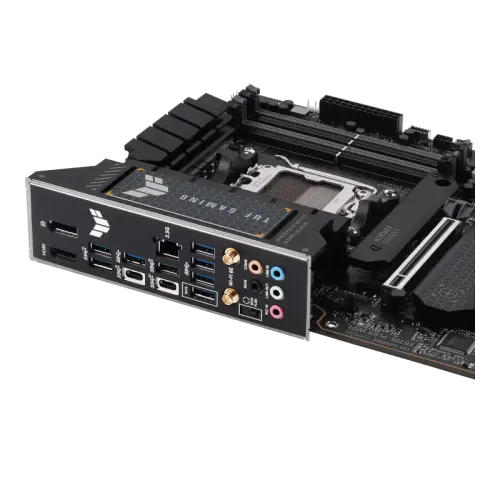

| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) 5 x USB 3.2 Gen 1 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 (with AI Cooling II) - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - Easy Optimization - DIGI+ VRM - Turbo app - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
|
| Special Features | TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

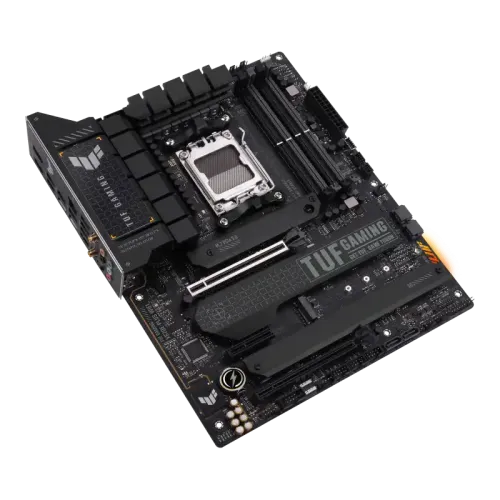

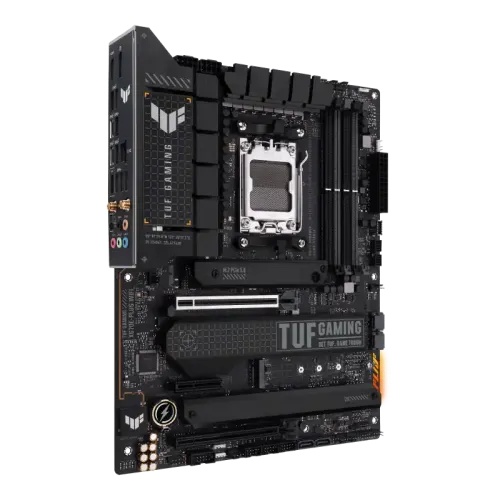

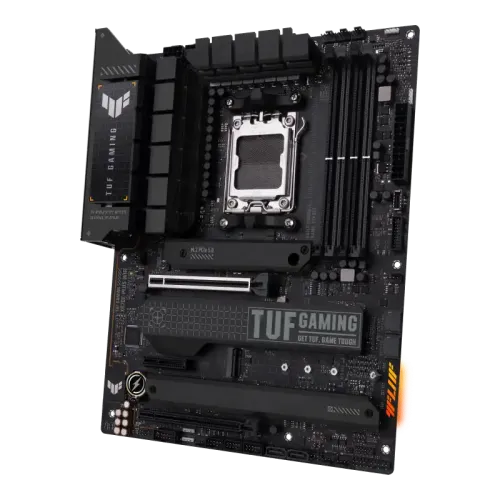

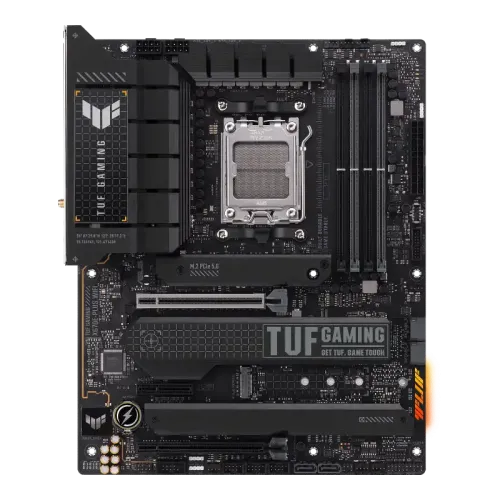

ASUS TUF GAMING X670E-PLUS WIFI takes all the essential elements of the latest AMD Ryzen 7000-series processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
The Asus TUF GAMING X670E-PLUS WIFI is a cutting-edge ATX motherboard designed for AMD Ryzen 7000 Series Desktop Processors, specifically catering to the AM5 socket. As part of the TUF Gaming series, this motherboard combines durability, performance, and a range of features tailored for gamers and PC enthusiasts.One of the standout features of the TUF GAMING X670E-PLUS WIFI is its exceptional audio capabilities. Equipped with the Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC, it delivers impressive 120 dB SNR stereo playback output and 113 dB SNR recording input, ensuring a premium audio experience. The onboard audio amplifier enhances sound quality for both headphones and speakers, making it perfect for gaming and multimedia purposes. The audio features are further complemented by dedicated audio PCB layers, premium audio capacitors, audio shielding, and a unique de-pop circuit, all contributing to exceptional audio clarity and reduced interference.The motherboard boasts the advanced AMD X670 chipset, providing extensive support for the latest AMD Ryzen 7000 Series Desktop Processors and featuring PCIe 5.0 and PCIe 4.0 slots, enabling faster data transfer rates and superior graphics performance. With the OptiMem II technology, it optimizes memory signal integrity and enhances memory overclocking potential, ensuring smooth multitasking and gameplay.The TUF GAMING X670E-PLUS WIFI comes with four DIMM slots supporting DDR5 memory with impressive speeds ranging from 4800 MHz to 6400 MHz (OC).
