Product Price | 26,750৳ |
Stock Status |
In Stock |
Product code | 9168 |
Brand |
ASUS |
Product model | B760M-PLUS WIFI D4 |
Warranty | 03 years |
Total Reviews |
Based on 2 reviews. - Write a review |
EMI Price
Price Click here to view 25 banks EMI Plans
Basic Information | |
Chipset | Intel B760 Chipset |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback " Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers 5 x Audio jacks |
BASIC INFORMATION | |
Supported CPU | Intel Socket LGA1700 for 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
Form Factor | mATX 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
Expansion Slots | |
PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
M.2 Socket | Total supports 2 x M.2 |
Memory | |
Memory Type | DDR4 |
Slots | 4 x DIMM |
Supported Memory | 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
Maximum Memory | Max. 128GB |
Graphics | |
Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
Connector & Ports | |
HDMI | 1 x HDMI port |
Display Port | 1 x DisplayPort |
USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
Wireless | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10 |
Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |

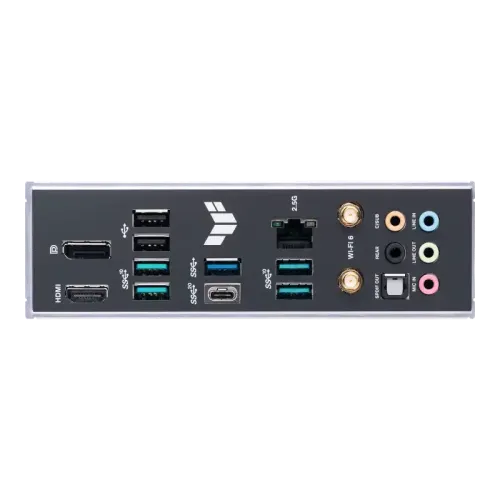

Internal I/O Ports | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
Others | |
Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
WARRANTY INFORMATION | |
Warranty | 3 years warranty |
Asus TUF GAMING B660M-PLUS D4 12th Gen mATX Motherboard
The Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard combines all of the core characteristics of the newest Intel CPUs with game-ready features and proven durability. This motherboard exceeds expectations with rock-solid performance for marathon gaming, thanks to military-grade components, an enhanced power solution, and a sophisticated cooling system. TUF GAMING motherboards are also subjected to extensive durability testing to guarantee that they can withstand situations that might cause other motherboards to fail. This model features an embossed nameplate and geometric design elements to symbolize the reliability and stability that is synonymous with the TUF GAMING line. These Asus TUF GAMING B760M motherboards have versatile tools for tuning every area of your system, allowing expert performance modifications to match the way you play. The Power Saving feature has several options that allow you to simply control power use and maximize energy savings. You may enable a CPU power restriction, dim the Aura lighting, and change the fan profile to power-saving mode. You can also enable or disable Microsoft Windows' Power Saving strategy. The TUF GAMING B760M-PLUS WIFI D4 is the ideal foundation for your next Intel battle rig, with upgraded power delivery and comprehensive cooling options to power the latest Intel CPUs, as well as support for DDR4 memory and PCIe 4.0 storage. 12+1 power stages combine high-side and low-side MOSFETs and drivers into a single package to deliver power, efficiency, and stable performance for all compatible Intel processors.
Features & Benefits:
- Powerful Performance: Supports both Intel 13th Gen and 12th Gen processors and Socket LGA1700, providing you with the performance you need for gaming and other tasks.
- Connectivity: Offers up to 128GB of DDR4 5333(OC) RAM and plenty of ports, including 1 x DisplayPort, 1 x HDMI port, and 1 x Realtek 2.5Gb Ethernet. Plus, it also comes with Wi-Fi 6 for fast and reliable wireless connections.
- Compact Design: The mATX form factor makes it easy to fit in any setup, while the 9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm ) size ensures it won't take up too much space.
