| Basic Information | ||
| Chipset | AMD B650 | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit |
|
| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0/3.0 x16 slot(s) AMD B650 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 4.0/3.0 x1 slots |
|
| M.2 Socket | Total supports 3 x M.2 slots | |
| MEMORY SPECIFICATIONS | ||
| Type | DDR5 | |
| Memory | ||
| Slots | 4 DIMMs | |
| Supported Memory | 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort* 1 x HDMI port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI |
|
| Display Port | 1x DisplayPort | |

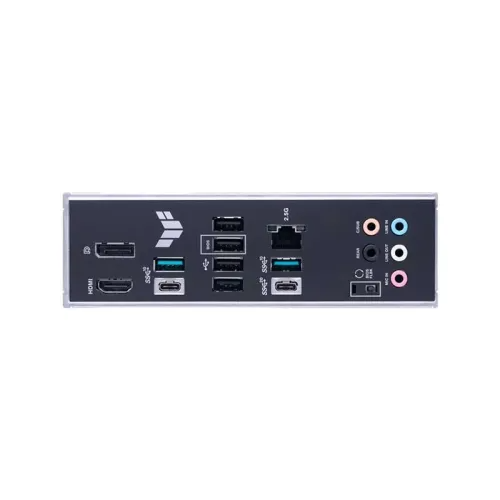

| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
|
| LAN | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Internal I/O Ports | Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C ) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header |
|
| Others | ||
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

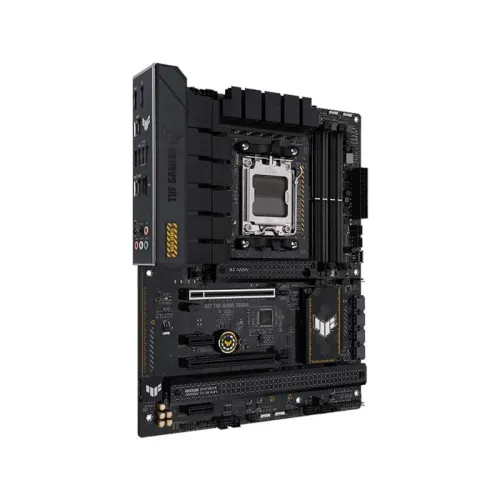

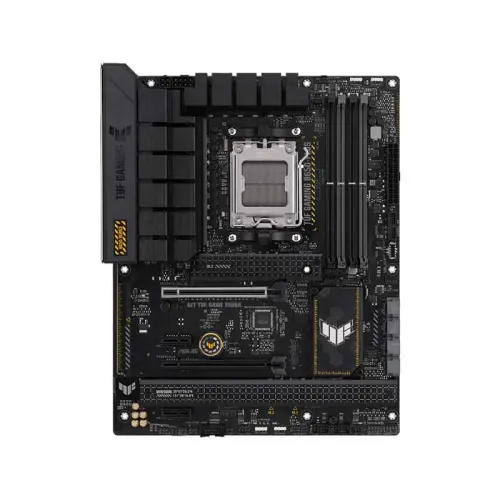

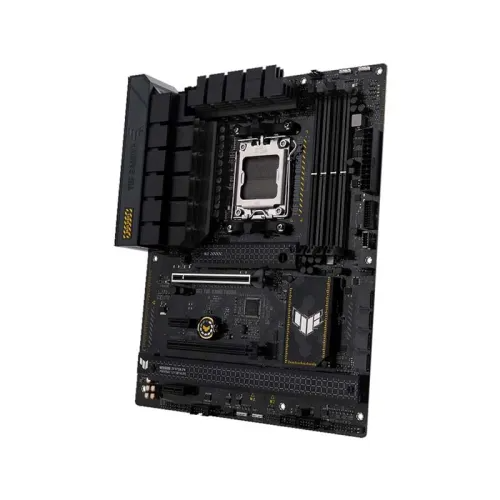

The Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard is a high-performance and feature-rich motherboard designed to support AMD Ryzen 7000 Series Desktop Processors and DDR5 memory. With its robust build quality and advanced technologies, this motherboard is perfect for gamers and PC enthusiasts seeking a reliable and powerful platform for their gaming and computing needs.At the heart of the motherboard is the AMD B650 chipset, which provides excellent performance and a host of connectivity options. The motherboard supports up to 128GB of DDR5 memory, allowing for smooth multitasking and high-speed data processing. It also supports AMD EXTended Profiles for Overclocking (EXPO), giving overclocking enthusiasts the flexibility to push their system to its limits.One of the standout features of the Asus TUF GAMING B650-PLUS is its audio capabilities. Equipped with Realtek 7.1 Surround Sound High Definition Audio CODEC, the motherboard delivers immersive audio experiences with support for 24-Bit/192 kHz playback. The audio components are also shielded and powered by dedicated audio PCB layers, ensuring superior sound quality and reducing interference.For graphics performance, the motherboard comes with a DisplayPort and HDMI port, supporting up to 8K@60Hz and 4K@60Hz resolutions, respectively. Gamers and content creators can enjoy stunning visuals and smooth gameplay on compatible monitors and displays.The motherboard offers extensive connectivity options with a range of USB ports, including USB 3.2 Gen 2x2 and USB Type-C connectors for high-speed data transfer. It also provides multiple M.2 slots (Key M) and SATA 6Gb/s ports for storage expansion, allowing users to add high-speed SSDs and traditional hard drives for ample storage and faster data access.Asus has incorporated various protection features to ensure the motherboard's longevity and reliability. The ASUS TUF PROTECTION features include DIGI+ VRM for digital power design with DrMOS, ESD Guards, Overvoltage Protection, SafeSlot Core+, and TUF LANGuard for added protection against power fluctuations, electrostatic discharges, and other potential hazards.Additionally, ASUS EZ DIY features like the BIOS FlashBack button and BIOS FlashBack LED make updating the motherboard's BIOS a breeze, while the Pre-mounted I/O shield and Q-Design elements (Q-Latch, Q-DIMM, Q-LED, and Q-Slot) simplify the installation process.The Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard also comes with ASUS Exclusive Software, including Armoury Crate, AI Suite 3, and MyAsus, offering users convenient tools for system customization, performance optimization, and more.With a 3-year warranty, users can have peace of mind knowing that their investment in this motherboard is protected, making it a reliable and future-proof choice for building a high-performance gaming or workstation setup. Whether you're a hardcore gamer or a content creator, the Asus TUF GAMING B650-PLUS DDR5 AM5 ATX Motherboard provides the necessary features and performance to take your computing experience to the next level.
