| BASIC INFORMATION | ||
| Supported CPU | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Micro ATX | |
| Basic Information | ||
| Chipset | AMD B550 Chipset | |
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 KHz Playback Audio Features - Audio Shielding - Premium Japanese Audio Capacitors - Dedicated Audio PCB Layers * A Chassis With An HD Audio Module In The Front Panel Is Required To Support 7.1 Surround Sound Audio Output. |
|
| Memory | ||
| Slots | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors 1 X PCIe 4.0 X16 Slot (Supports X16 Mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 X PCIe 3.0 X16 Slot (Supports X16 Mode) AMD B550 Chipset 2 X PCIe 3.0 X1 Slots |
|
| Memory | 4 X DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC) /4466(OC)/4400(OC)/4333(OC) /4266(OC)/4200(OC) /4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC) /3333(OC)/3200/3000/2933/2800 /2666/2400/2133 MHz, Un-Buffered Memory* Dual Channel Memory Architecture * ECC Memory (ECC Mode) Support Varies By CPU. |
|
| Graphics | ||
| Graphics | 1 X DisplayPort 1.2 1 X D-Sub 1 X HDMI™ 2.1 (4K@60Hz) * Graphics Specifications May Vary Between CPU Types. |
|
| Connector & Ports | ||
| HDMI | 1 X HDMI™ 2.1 (4K@60Hz) | |
| LAN | TUF LANGuard | |
| Supported Storage | AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors M.2_1 Slot (Key M), Type 2242/2260 /2280 (Supports PCIe 4.0 X4 & SATA Modes) AMD Ryzen™ 4000 G-Series Desktop Processors M.2_1 Slot (Key M), Type 2242/2260 /2280 (Supports PCIe 3.0 X4 & SATA Modes) AMD B550 Chipset M.2_2 Slot (Key M), Type 2242 /2260/2280 (Supports PCIe 3.0 X4 & SATA Modes) 4 X SATA 6Gb/S Ports Support RAID 0, 1, 10 |
|
| Internal I/O Ports | Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin CPU OPT Fan Header 2 X 4-Pin Chassis Fan Headers Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector Storage Related 2 X M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 Connector (Supports USB Type-C®) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 2 X AURA Addressable Gen 2 Headers 2 X AURA RGB Headers 1 X Clear CMOS Header 1 X COM Port Header 1 X Front Panel Audio Header (AAFP) 1 X S/PDIF Out Header 1 X Speaker Header 1 X SPI TPM Header (14-1pin) 1 X 10-1 Pin System Panel Header |
|

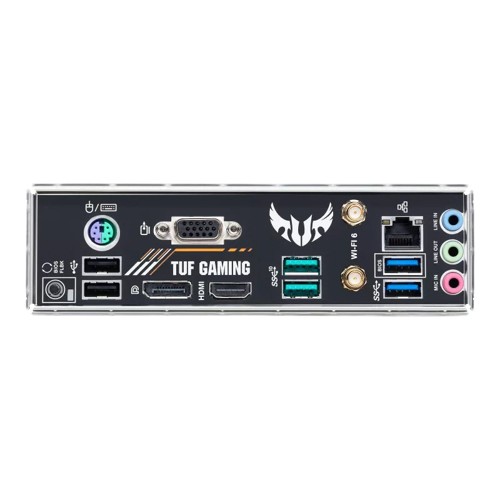

| USB Port | 2 X USB 3.2 Gen 2 Ports (2 X Type-A) 2 X USB 3.2 Gen 1 Ports (2 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) 1 X USB 3.2 Gen 1 Connector (Supports USB Type C®) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports |
|
| WiFi | 2x2 Wi-Fi 6 (802.11 A/B/G/N/Ac/Ax) + BT5.1 * Bluetooth V5.1 Function Will Be Ready In Windows 10 Build 19041 Or Later. |
|
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - M.2 Heatsink - VRM Heatsink Design ASUS EZ DIY - BIOS FlashBack™ Button - BIOS FlashBack™ LED AURA Sync - AURA RGB Headers - Addressable Gen 2 RGB Headers |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

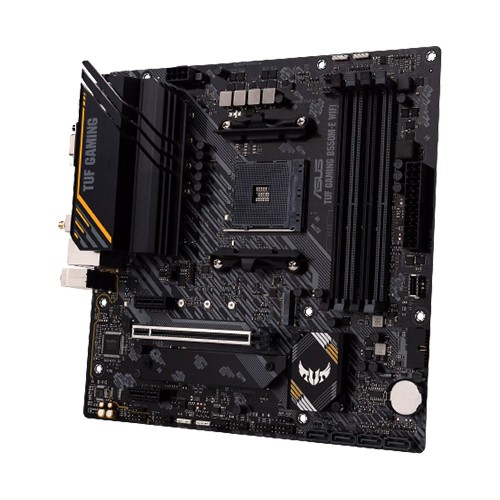

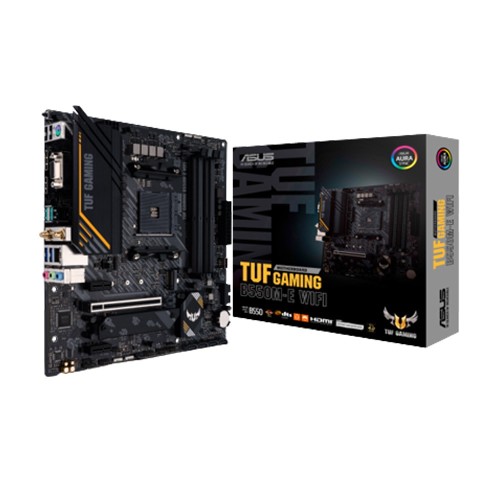

ASUS TUF GAMING B550M-E WIFI AMD MICRO ATX MOTHERBOARD Ready For Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors. ASUS TUF GAMING B550M-E Motherboards Are Designed To Be Easy To Set Up And Configure Just The Way You Want — Even For First-Time Builders. The TUF Gaming Alliance Ecosystem Makes Selecting Compatible Parts Easy, While Armoury Crate Software Offers Full Control Of System Settings Via A Single Dashboard. ASUS TUF GAMING B550M-E Motherboards Give You Everything You Need To Build Your Dream Gaming Rig Without Adding Complexity. TUF Gaming Alliance Is A Collaboration Between ASUS And Trusted PC-Component Brands To Ensure Compatibility With A Wide Range Of Parts, Such As PC Cases, Power Supplies, CPU Coolers, Memory Kits And More. With More Partnerships And Components Being Added Regularly, The TUF Gaming Alliance Will Continue To Grow Even Stronger. ASUS TUF Gaming B550M-E WIFI Provides A Complete, High-Performance Gaming Package With A Long List Of Features To Improve Your Experience, Including Ultrafast Networking For Smoother Online Gameplay, Pristine Audio With Positional Cues For FPS Gaming, And Onboard RGB Lighting That Syncs With Attached Accessories To Help You Create A Personalized Gaming Atmosphere.
