| BASIC INFORMATION | ||
| Supported CPU | AMD AM4 Socket For AMD Ryzen™ 5000 Series / 5000 G-Series/ 4000 G-Series/ 3rd/2nd/ 1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors * |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | MATX Form Factor 9.6 Inch X 9.6 Inch ( 24.4 Cm X 24.4 Cm ) |
|
| Basic Information | ||
| Chipset | AMD B450 | |
| Audio | Realtek ALC S1200A 7.1 HD Audio | |
| Memory | ||
| Slots | 3rd/2nd/1st Gen AMD Ryzen™ Processors 1 X PCIe 3.0/2.0 X16 (X16 Mode) 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics Processors 1 X PCIe 3.0/2.0 X16 (X8 Mode) Athlon™ With Radeon™ Vega Graphics Processors 1 X PCIe 3.0/2.0 X16 (Max At X4 Mode) AMD B450 Chipset 1 X PCIe 2.0 X16 (X4 Mode) 1 X PCIe 2.0 X1 |
|
| Memory | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors 4 X DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/ 3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/ 3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-Buffered Memory * Dual Channel Memory Architecture |
|
| Graphics | ||
| Graphics | Integrated Graphics In The 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors 1 X DisplayPort 1.2 1 X HDMI 2.0b |
|
| Connector & Ports | ||
| LAN | Realtek RTL8111H 1Gb Ethernet / TUF LANGuard | |
| Supported Storage | 3rd/2nd/1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics : 1 X M.2_1 Socket 3, With M Key, Type 2242/2260/2280 (PCIE 3.0 X4 And SATA Modes) Storage Devices Support*1 Athlon™ With Radeon™ Vega Graphics Processors : 1 X M.2_1 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (SATA Mode)*1 3rd/2nd/1st Gen AMD Ryzen™/ 2nd And 1st Gen AMD Ryzen™ With Radeon™ Vega Graphics/ Athlon™ With Radeon™ Vega Graphics Processors : 2 X SATA 6Gb/S Port(S), Support Raid 0, 1, 10 AMD B450 Chipset : 1 X M.2_2 Socket 3, With M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 X2 Mode)*2 4 X SATA 6Gb/S Port(S), Support Raid 0, 1, 10 |
|
| Internal I/O Ports | 1 X CPU Fan Connector(S) 2 X Chassis Fan Connector(S) 2 X Aura RGB Strip Headers 1 X USB 3.2 Gen 1(Up To 5Gbps) Connector(S) Support(S) Additional 2 USB 3.2 Gen 1 Port(S) 2 X USB 2.0 Connector(S) Support(S) Additional 4 USB 2.0 Port(S) 1 X M.2 Socket 3 With M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 X 4 Mode) 1 X M.2 Socket 3 With M Key, Type 2242/2260/2280 Storage Devices Support (SATA & PCIE 3.0 X2 Mode) 1 X SPI TPM Header 6 X SATA 6Gb/S Connector(S) 1 X S/PDIF Out Header(S) 1 X 24-Pin EATX Power Connector(S) 1 X 8-Pin EATX 12V Power Connectors 1 X Front Panel Audio Connector(S) (AAFP) 1 X Clear CMOS Jumper(S) 1 X System Panel Connector 1 X COM Port Header 1 X Speaker Connector |
|

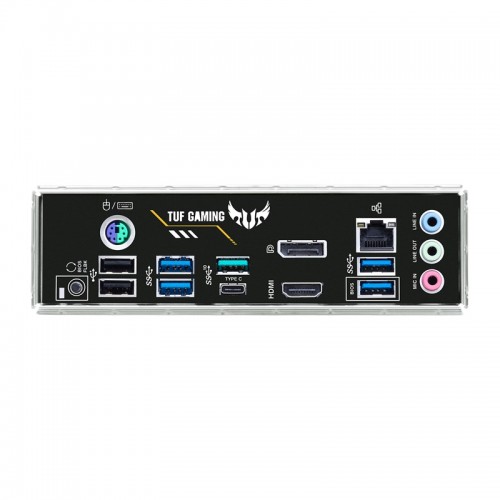

| USB Port | Rear USB Port ( Total 8 ) 2 X USB 3.2 Gen 2 Port(S)(1 X Type-A +1 X USB Type-C®) 4 X USB 3.2 Gen 1 Port(S)(4 X Type-A) 2 X USB 2.0 Port(S)(2 X Type-A) Front USB Port ( Total 6 ) 2 X USB 3.2 Gen 1 Port(S)(2 X Type-A) 4 X USB 2.0 Port(S)(4 X Type-A) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |

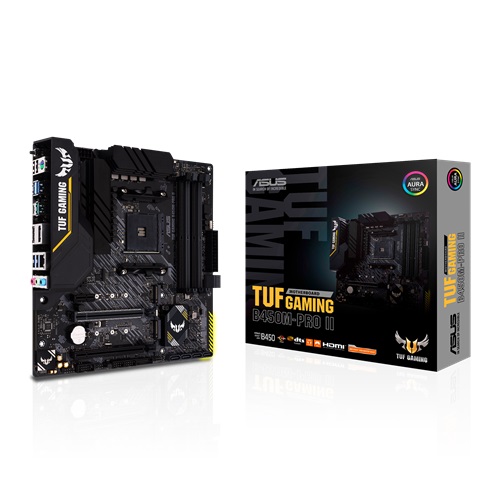

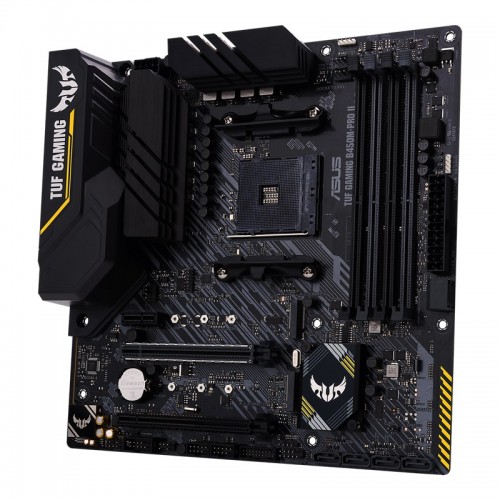

The ASUS TUF Gaming B450M-Pro II Is Designed, Engineered And Tested To Thrive In Conditions Other Motherboards Would Struggle, Built From Military-Grade Components, An Amped-Up Power And Comprehensive Cooling Solutions Like VRM Heatsinks, PCH Heatsinks And Fan XPERT 2+ Support. Combined With Dual M.2 Slots, USB 3.2 Gen2 Type-A And Type-C Connectivity, Solid Gaming Audio A Realtek LAN Connection And AURA SYNC RGB Support The B450M-PRO II Has What It Takes To Deliver The Rock-Solid Performance With Unwavering Gaming Stability That Is Required By Ryzen 3rd Generation CPUs.
With Upgraded Power Delivery And Comprehensive Cooling Options To Fuel The Latest AMD Ryzen CPUs, Plus Support For Faster Storage And Connectivity, ASUS TUF GAMING B450M-PRO II Is The Perfect Foundation For Your Next High-Core-Count Battle Rig.
ASUS ARMORY CRATE
Armoury Crate Is A New Software Utility Designed To Give You Centralised Control Of Supported Gaming Products. From A Single Intuitive Interface, Armoury Crate Lets You Easily Customise RGB Lighting And Effects For Every Compatible Device In Your Arsenal And Synchronise Them With Aura Sync For Unified System Lighting Effects. You Can Also Turn On The AI Noise-Canceling Microphone Function For Crystal-Clear In-Game Voice Communication. The Software Also Provides Control Of Settings For A Select And Growing Number Of Products, Including Keyboard And Mouse Preferences As Well As Laptop Overclocking And Fan Speeds, Making It Easier To Tune The Look And Feel Of Your System. Armoury Crate Even Features Dedicated Product Registration And News Areas To Help You Stay In Touch With The Gaming Community.
DUAL PCIE 3.0 M.2
ASUS TUF GAMING B450M-PRO II Supports PCIe 3.0 M.2 Slot And Provides NVMe SSD RAID Support For An Incredible Performance Boost. Create A RAID Configuration With Up To PCIe 3.0 Storage Device To Enjoy The Fastest Data-Transfer Speeds On The 3rd/2nd/1st Generation AMD Ryzen Platform.
