| BASIC INFORMATION | ||
| Supported CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | Mini ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
|
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | SupremeFX7.1 Surround Sound High Definition Audio CODEC S1220A - Rear audio USB Type-C port - LED-illuminated design - Audio Shielding - Premium Japanese audio capacitors - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x16 mode) |
|
| MEMORY SPECIFICATIONS | ||
| Type | DDR4 | |
| Memory | ||
| Slots | 2 x DIMM | |
| Supported Memory | 5100(O.C)/ 5000(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3800(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. |
|
| Maximum Memory | Max. 64GB | |
| Graphics | ||
| Graphics | 1 x HDMI 2.1(4K@60HZ) 1 x DisplayPort 1.4 |
|
| Connector & Ports | ||
| HDMI | 1 x DisplayPort | |
| Display Port | 1 x HDMI | |

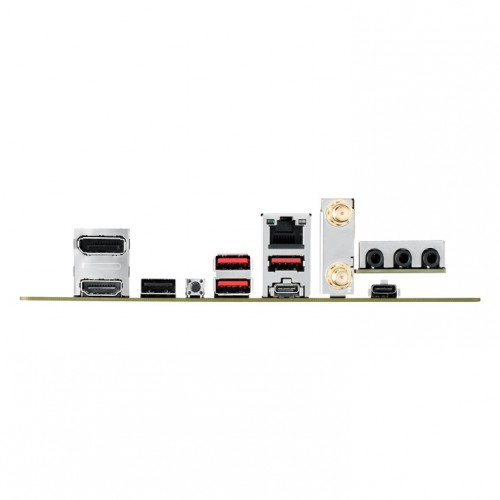

| USB (s) | 4 x USB 3.2 Gen 2 port(s)(1 x USB Type-C +3 x Type-A) 1 x USB 2.0 port(s)( 1 x audio USB Type-C) Front USB Port ( Total 5 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C) Rear USB Port ( Total 6 ) 1 x USB 2.0 port(s) 2 x USB 3.2 Gen 1 port(s) 2 x USB 2.0 port(s) |
|
| LAN | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
|

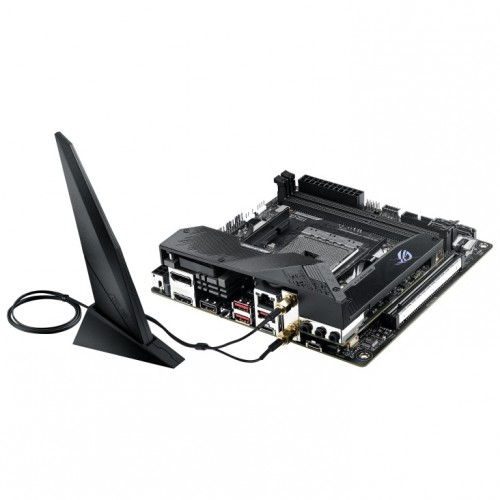

| Wireless | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Intel Wi-Fi 6 AX200 Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 |
|
| Supported Storage | AMD Ryzen 4000 G-Series Processors : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports AMD B550 Chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support |
|
| Internal I/O Ports | 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x VRM_HS_FAN Header 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x M.2 Socket 3 with M Key design, type 2242/2260/2280 storage devices support (Supports both SATA & PCIE SSD) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 4 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x Speaker connector |
|
| TPM (Trusted Platform Module ) | N/A | |
| Others | ||
| Bundled Software | ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS® Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync -AI Noise Cancelling Microphone AI Suite 3: - 5-way Optimization TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey |
|
| Special Features | Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY -BIOS Flashback™ button -BIOS FlashBack™ LED -Clear CMOS header -Procool -Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C connector |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

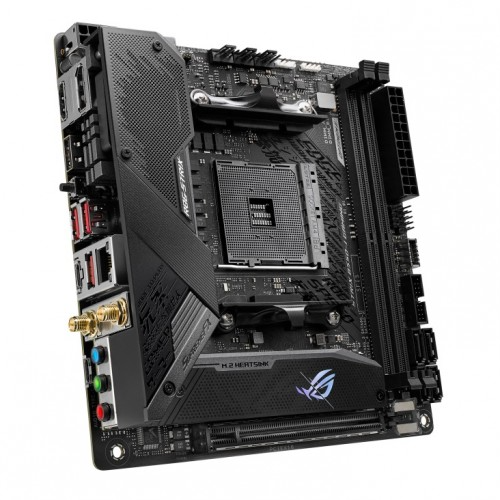

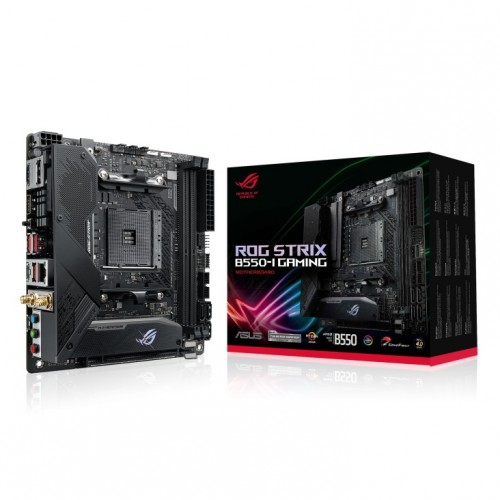

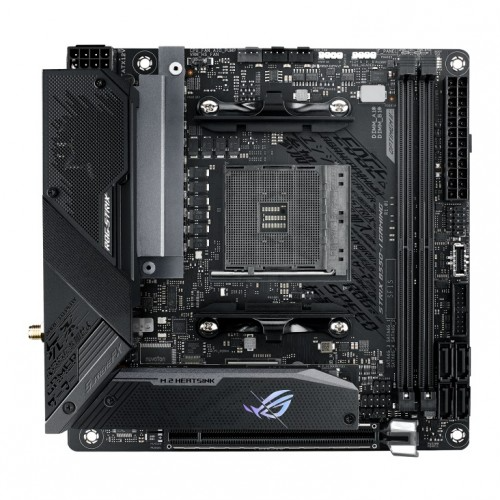

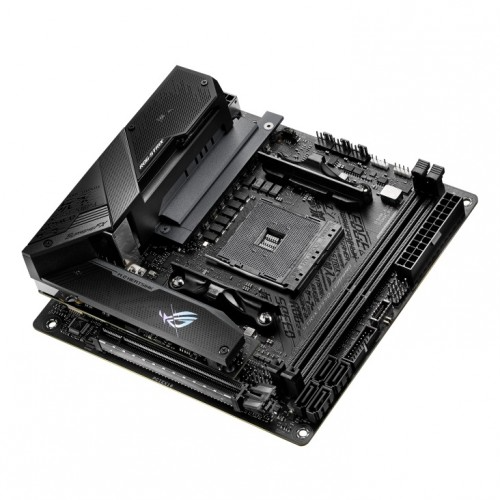

The Asus ROG STRIX B550-I GAMING Motherboard offers a feature-set including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG STRIX B550-I GAMING is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG STRIX B550-I GAMING gives you a head start on your dream build. It is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. It comes with onboard WiFi 6 (802.11ax) that supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. It also has onboard 2.5 Gb Ethernet that gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections. The Built-in ROG SupremeFX audio technology ensures pristine audio for ROG STRIX B550-I GAMING. It comes with 3 years warranty.
