| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | AMD B550 | |
| Audio | - Rear audio USB Type-C port - Audio Shielding ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A - Premium Japanese audio capacitors - Audio Cover - Dual OP Amplifiers - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality120dBSNR stereo playback outputand113dBSNR recording input - Supports up to 32-Bit/192kHz playback * Audio Feature : - SupremeFX Shielding Technology |
|
| CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Memory | ||
| Memory | Type: DDR4, Slots: 4 x DIMM, Supported Memory: 4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, AMD Ryzen 4000 G-Series Processors, 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory, OptiMem II Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU. Maximum Memory: 128GB |
|
| Storage | 1 x M.2_2 socket 3, AMD Ryzen 4000 G-Series Processor : AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*, Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports, 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), AMD B550 Chipset : 6 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | 1 x HDMI 2.1(4K@60HZ), 1 x DisplayPort 1.2, *Graphics specifications may vary between CPU types. Integrated Graphics Processor, Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-Way CrossFireX Technology |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| LAN | Intel I225-V 2.5Gb Ethernet ASUS LANGuard |
|
| Internal I/O Ports | 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode), 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode), 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C), 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s), 1 x Thunderbolt header(s), 1 x Q-Code, 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x AAFP connector, 2 x Aura RGB Strip Header(s), 2 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 6 x SATA 6Gb/s connector(s), 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x System panel(s), 1 x Thermal sensor connector(s), 1 x Clear CMOS jumper(s) |
|
| USB Port | 3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C), 1 x USB 2.0 port(s)(1 x audio USB Type-C ), 4 x USB 2.0 port(s)(4 x Type-A), Rear USB Port ( Total 8 ), Front USB Port ( Total 7 ), 2 x USB 3.2 Gen 1 port(s), 4 x USB 2.0 port(s), 1 x USB 3.2 Gen 2 front panel connector port(s) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

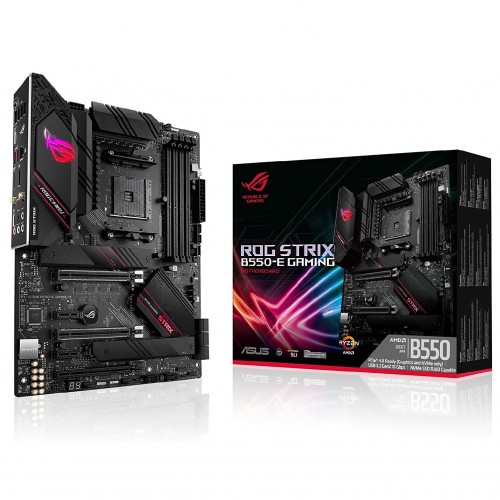

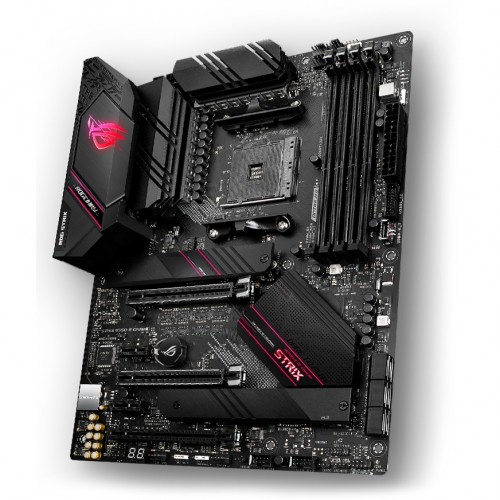

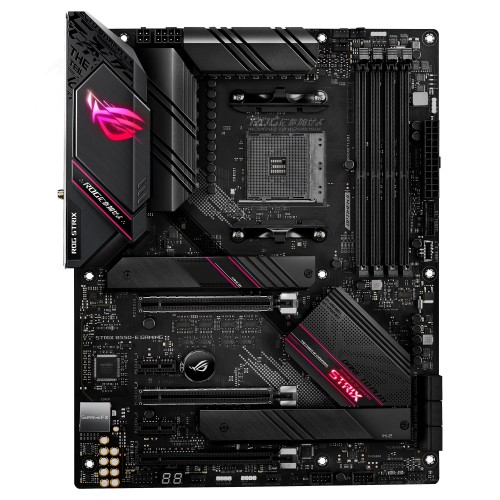

ROG Strix B550 Gaming motherboards offer a feature-set including the latest PCIe 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-E Gaming gives you a head start on your dream build. It is PCIe 4.0-ready and provides the latest connectivity options for supersmooth networking and blisteringly fast file transfers. It comes with onboard WiFi 6 (802.11ax) that supports ultrafast wireless-networking speeds, improved capacity and better performance in dense wireless environments, providing exceptional online gaming experiences. It also has onboard 2.5 Gb Ethernet that gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections. The Built-in ROG SupremeFX audio technology ensures pristine audio for ROG Strix B550-E Gaming.
