| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 | |
| Form Factor | ATX Form Factor: 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) | |
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | ROG SupremeFX7.1 Surround Sound High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback, - Dedicated audio PCB layers, - Unique de-pop circuit, - Audio Cover, - Premium Japanese audio capacitors, - Power pre-regulator: Reduces power input noise to ensure consistent performance, - Impedance sense for front and rear headphone outputs, - High quality120dBSNR stereo playback outputand113dBSNR recording input, - ESS® ES9023P, - Supports up to 32-Bit/192kHz playback, Audio Feature : - SupremeFX Shielding Technology, - Gold-plated jacks, - Optical S/PDIF out port(s) at back panel |
|
| CPU | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors | |
| Memory | ||
| Memory | Type: DDR4, Slots: 4 x DIMM, Supported Memory: 4866(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory, 5100(O.C)/ 5000(O.C)/ 4866(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, 3200/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory, AMD Ryzen 4000 G-Series Desktop Processors, AMD Ryzen 2000 Series Processors, Dual Channel Memory Architecture, ECC Memory (ECC mode) support varies by CPU, Maximum Memory: 128GB |
|
| Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors : AMD Ryzen 4000 G-Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support, 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode), AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support, 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 2000 Series Desktop Processors: AMD Ryzen 3000 G-Series/ 2000 G-Series Desktop Processors: Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-Way CrossFireX Technology, Supports AMD 2-Way CrossFireX Technology |
|
| Connector & Ports | ||
| LAN | 1 x Anti-surge 2.5G LAN (RJ45) port, ASUS LANGuard, Intel I211-AT, Realtek RTL8125-CG 2.5G LAN |
|
| Internal I/O Ports | 2 x M.2 Socket 3, 2 x Aura RGB Strip Headers, 2 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x AIO_PUMP connector, 1 x H_AMP fan connector, 1 x W_PUMP+ connector, 1 x 24-pin EATX Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Slow Mode switch(es), 1 x Reset button(s), 1 x Node Connector(s), 1 x LN2 Mode jumper(s), 1 x Safe Boot button, 1 x ReTry button, 1 x System panel connector, 1 x T_Sensor Connector, 1 x W_IN header, 1 x W_OUT header, 1 x W_FLOW header, 1 x Start button, 1 x Speaker connector, 1 x USB 3.2 Gen 2 (up to 10Gbps) connector, 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports, 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s) |
|

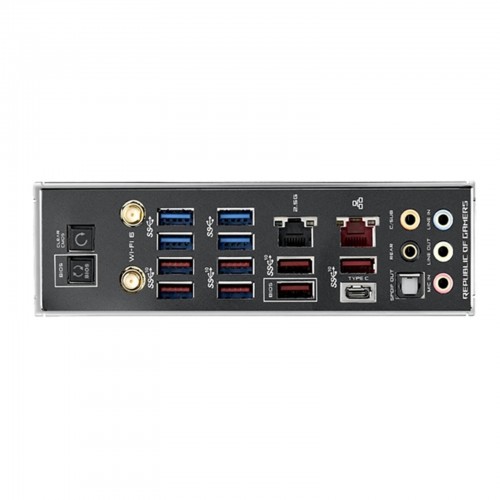

| USB Port | 4 x USB 3.2 Gen 1 (up to 5Gbps) ports, 8 x USB 3.2 Gen 2 (up to 10Gbps) ports |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 Years | |

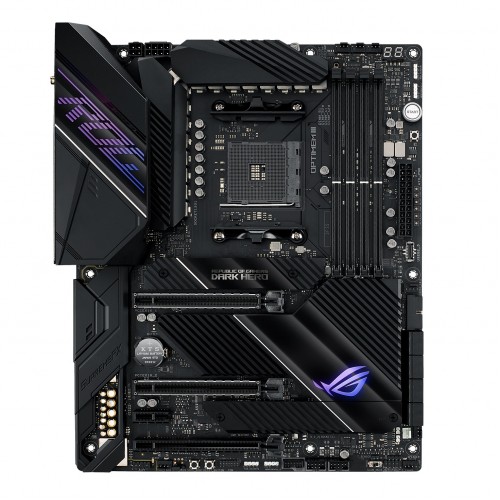

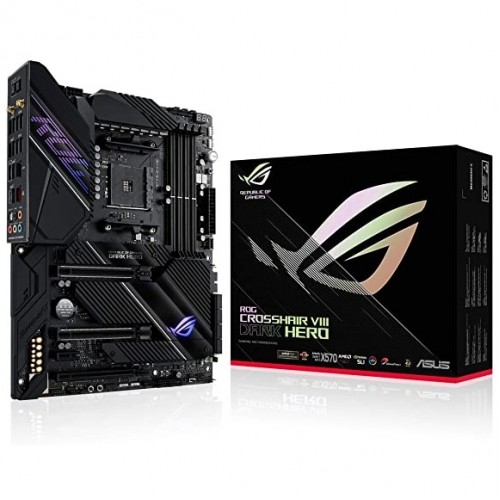

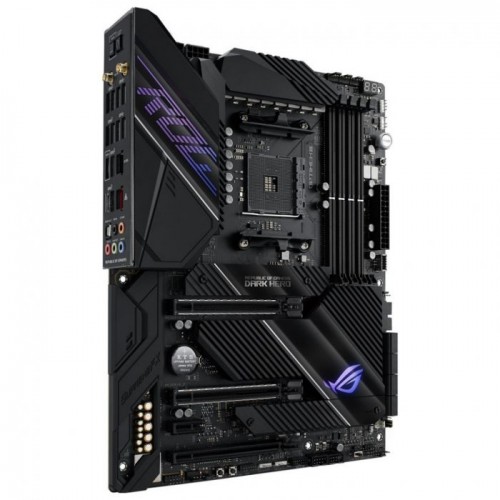

The Asus ROG Crosshair VIII Dark Hero X570 AM4 ATX Motherboard has upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3. Maintaining system stability is paramount under high load, so Crosshair VIII Dark Hero employs passive chipset cooling with large VRM and chipset heatsinks that strike the right balance between surface area and mass. Featuring premium components and multiple fan headers, Crosshair VIII Dark Hero is fully armed to provide the best foundation for gaming systems. ASUS ROG Crosshair VIII Dark Hero is packed with intuitive and flexible tools to allow customization across all system parameters to deliver the performance you want. ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever. Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI. Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop. ROG Crosshair VIII Dark Hero offers advanced connectivity, including WiFi 6 (AX200) and dual Ethernet with Intel® 1Gb and Realtek 2.5Gb Ethernet port to eliminate bottlenecks so you can enjoy exceptionally smooth online and LAN play. Additionally, the M.2 supports AMD StoreMI technology to maximize the speed of your SSD for faster load times, and SupremeFX on-board audio provides superb sound, while saving a PCIe slot. In addition to extraordinary performance, ROG Crosshair VIII Dark Hero provides extensive styling and customization options to let you build a system that truly stands apart.
