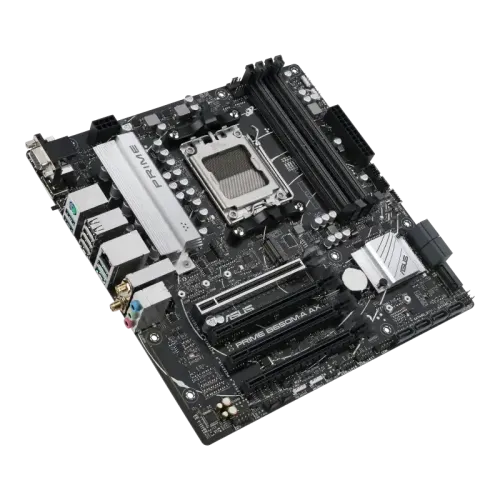

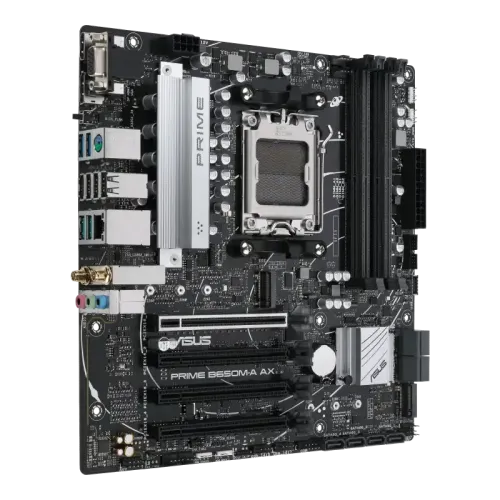

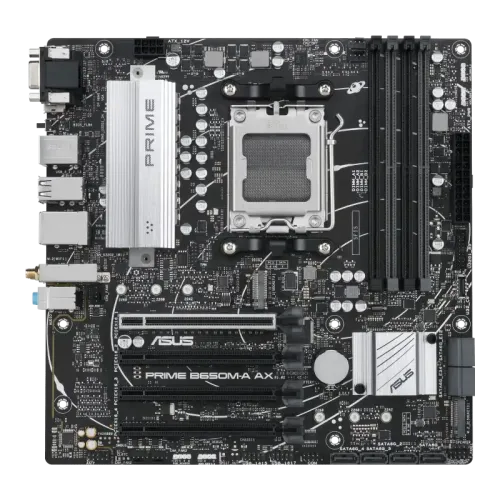

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
  • Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
  • Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard
  • Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

Price: Out Of Stock
Status: Out Of Stock
Product Code: 9551
Brand: ASUS
Key Features
  • Model: PRIME B650M-A AX
  • Supported CPU: Ryzen 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 5600(OC)
  • Graphics Output: 1x HDMI, 1x Display Port, 1 x VGA
  • Features: Realtek 2.5Gb Ethernet, Wi-Fi 6
View More Info

Payment Options

Quantity :
  • Specification
  • Description
  • Reviews ( 0)

Specification:

Basic Information
Chipset AMD B650 Chipset
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers
BASIC INFORMATION
Supported CPU AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Form Factor mATX Form Factor

9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
Expansion Slots
PCI AMD Ryzen 7000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

1 x PCIe 4.0 x16 slot (supports x1 mode)

AMD B650 Chipset

2 x PCIe 4.0 x16 slots (support x1 mode)
MEMORY SPECIFICATIONS
Type DDR5
Memory
Slots 4 DIMMs
Supported Memory DDR5 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

OptiMem II
Maximum Memory 128GB
Graphics
Graphics 1 x DisplayPort**

1 x VGA port

1 x HDMI port***

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI® 2.1.
Connector & Ports
HDMI 1x HDMI
Display Port 1x DisplayPort
USB (s) Rear USB (Total 8 ports)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports
LAN 1 x Realtek 2.5Gb Ethernet
Supported Storage Total supports 2 x M.2 slots and 8 x SATA 6Gb/s ports*

AMD Ryzen 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD B650 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

8 x SATA 6Gb/s ports**

* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

** The SATA6G_E12/E34 ports cannot support RAID.
Internal I/O Ports Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

8 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

1 x Aura RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x 10-1 pin System Panel header
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1pin)
VGA 1 x VGA port
Others
Bundled Software ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

- Power Saving

AI Suite 3

- TurboV EVO

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode
Special Features ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- Safeslot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

Aura Sync

- Aura RGB header

- Addressable Gen 2 headers
WARRANTY INFORMATION
Warranty 3 Years

Description :

Asus PRIME B650M-A AX DDR5 AMD AM5 Micro-ATX Motherboard

The Asus PRIME B650M-A AX Motherboard supports AMD Ryzen 7000-series processors for socket AM5. It has been expertly engineered to unleash the full potential of Ryzen 7000 series CPUs. It comes with a robust power design, comprehensive cooling solutions, and intelligent tuning options. Asus PRIME B650M-A AX Motherboard is packed with flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity. The motherboard is equipped with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. VRM heatsink and thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance. It has a 6-layer PCB Design. Multiple PCB layers optimize heat management for critical components, providing more headroom to push CPUs beyond stock speeds. It features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. PRIME B650M-A AX offers a total of two M.2 slots, the first one supports data-transfer speeds of up to 128Gbps via PCIe 5.0. It also offers Wi-Fi 6, M.2 PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 ports, and front USB 3.2 Gen 1 Type-C. Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers. The Asus PRIME B650M-A AX Motherboard comes with 3 years of warranty.
