| Video Memory Specifications | ||
| Card Size | 173 x 69 x40 mm | |
| Memory Size | 2GB | |
| Memory Type | GDDR5 | |
| Resolution | 1920x1200 | |
| Core Clock | OC Mode - GPU Boost Clock : 1506 MHz , GPU Base Clock : 1266 MHz Gaming Mode (Default) - GPU Boost Clock : 1468 MHz , GPU Base Clock : 1228 MHz |
|
| Memory Bus (Bit) | 64-bit | |
| CUDA Cores (Nvidia) | 384 | |
| INTERFACE | HDMI Yes x 1 DVI Yes x 1 HDCP |
|
| Memory Clock | 6002 MHz | |
| Stream Processors | 384 (CUDA) | |
| Memory Bandwidth (GB/sec) | 48 GB/s | |
| Power Specifications | ||
| Power Consumption | 30W | |
| Recommended Power Supply | 300W | |
| Display Option | ||
| Multi Display | 3 | |
| General | ||
| Engine Clock | 1506 MHz (OC Mode) | |
| Graphics Chipset | NVIDIA GeForce GT 1030 | |
| Application Programming Interfaces | ||
| OpenGL | 4.5 | |
| DirectX | 12 | |

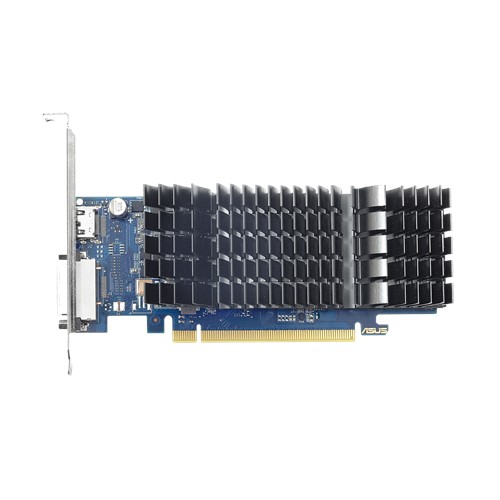

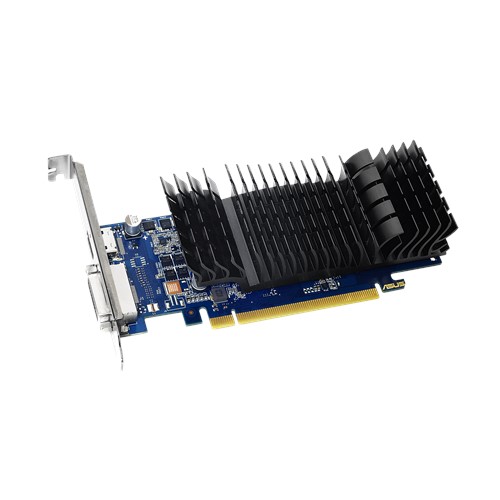

ASUS GeForce GT 1030 is the fantastic graphics card from ASUS. Engineered with a highly-efficient 0dB thermal design, it dissipates heat in complete silence — making GT 1030 the perfect choice for your slimline home-theater PC (HTPC) build. Exclusive AUTO-EXTREME Technology for premium quality and best reliability. It also has GPU Tweak II for intuitive performance tweaking. Exclusive ASUS-designed heatsinks with large surface areas effectively cool graphics cards passively so absolutely no sound is produced while running - perfect for high definition and silent home theater PCs and multimedia centers. All ASUS graphics cards are now produced using AUTO-EXTREME Technology, an industry-first, 100% automated production process that incorporates premium materials to set a new standard of quality. AUTO-EXTREME Technology ensures consistent graphics card quality as well as improved performance and longevity. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%. Redesigned with an intuitive, all-new UI, GPU Tweak II makes overclocking easier and more visual than ever, while still retaining advanced options for seasoned overclockers. With one click, the new Gaming Booster function maximizes system performance by removing redundant processes and allocating all available resources automatically.
