| BASIC INFORMATION | ||
| Supported CPU | Intel® Socket LGA1700 For 12th Gen Intel® Core™, Pentium® Gold And Celeron® Processors* Supports Intel ® Turbo Boost Technology 2.0 And Intel® Turbo Boost Max Technology 3.0 |
|
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |

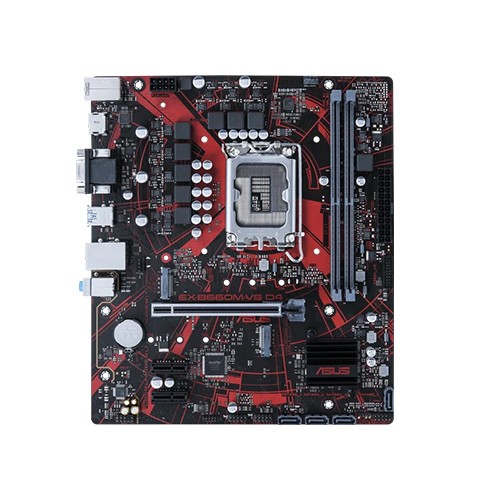

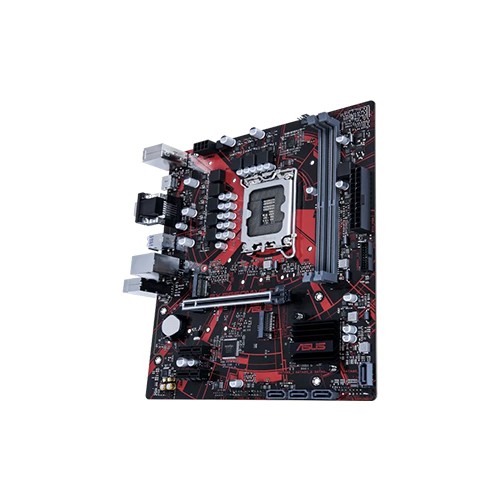

| Form Factor | MATX Form Factor | |
| Basic Information | ||
| Chipset | Intel B660 Chipset | |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-Detection, Multi-Streaming, Front Panel Jack-Retasking - Supports Up To 24-Bit/192 KHz Playback Audio Features - Premium Audio Capacitors - Audio Shielding - Dedicated Audio PCB Layers |
|
| Memory | ||
| Slots | Intel® 12th Gen Processors 1 X PCIe 4.0/3.0 X16 Slot Intel® B660 Chipset 2 X PCIe 3.0 X1 Slots |
|
| Memory | 2 X DIMM, Max. 64GB, DDR4 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC) /4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-Buffered Memory |
|
| Graphics | ||
| Graphics | 1 X D-Sub Port 1 X HDMI® Port |
|
| Connector & Ports | ||
| LAN | 1 X Realtek 1Gb Ethernet | |
| Supported Storage | Total Supports 2 X M.2 Slots And 4 X SATA 6Gb/S Ports* Intel® 12th Gen Processors M.2_1 Slot (Key M), Type 2242/2260/2280 - Intel® 12th Gen Processors Support PCIe 4.0 X4 Mode. Intel® B660 Chipset** M.2_2 Slot (Key M), Type 2242/2260/2280 (Supports PCIe 4.0 X4 Mode) 4 X SATA 6Gb/S Ports |
|
| Internal I/O Ports | Fan And Cooling Related 1 X 4-Pin CPU Fan Header 1 X 4-Pin Chassis Fan Header Power Related 1 X 24-Pin Main Power Connector 1 X 8-Pin +12V Power Connector Storage Related 2x M.2 Slots (Key M) 4 X SATA 6Gb/S Ports USB 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports Miscellaneous 1 X Clear CMOS Header 1 X Front Panel Audio Header (AAFP) 1 X Speaker Header 1 X 10-1 Pin System Panel Header |
|

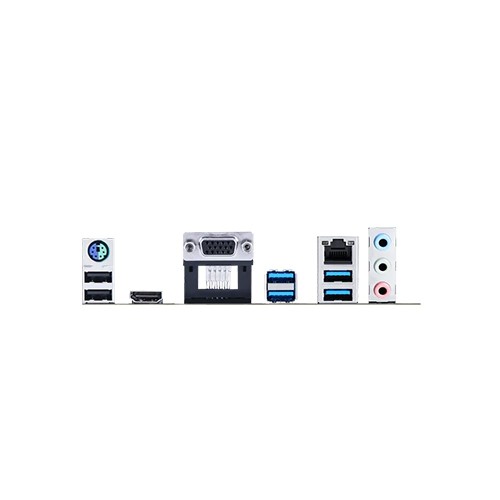

| USB Port | Rear USB (Total 6 Ports) 4 X USB 3.2 Gen 1 Ports (4 X Type-A) 2 X USB 2.0 Ports (2 X Type-A) Front USB (Total 6 Ports) 1 X USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports 2 X USB 2.0 Headers Support Additional 4 USB 2.0 Ports |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 Years | |
ASUS Expedition 600 Series Motherboards Are Made For Non-Stop Action, Featuring Lightning Boot For Faster BIOS Boot-Up. These Expedition Motherboards Are Engineered For Long-Lasting Durability To Protect Against Moisture, Corrosion And Overvoltage Damage. They Have Been Subjected To Stringent 144-Hour Diskless-System Tests And Offer Extensive Compatibility With Top Games And Over 100 Gaming Peripherals. Expedition Motherboards Include Epic Gaming Audio To Complete The Gaming Experience And Provide The Best Stability, Reliability And Performance.
ASUS Expedition Motherboards Offer An Exclusive Package Of Unbeatable Hardware And Features To Ensure Non-Stop Durability, Including A Luminous Anti-Moisture Coating, SafeSlot Core+, LANGuard, USBGuard Protection For 120%-Higher Overvoltage Toleration, And Exclusive 5X Protection III For Absolute Reliability.
An Innovative Moisture-Resistant Coating Provides Comprehensive Protection To Prolong The Life Of Your Expedition Motherboard. It Combats The Negative Effects Of High Humidity Often Found In Crowded Environments — Such As ICafé , Data Centers And Libraries — And Minimizes Internal Corrosion By Preventing The Adhesion And Migration Of Moisture. The Coating Even Has A Luminous Effect When Viewed Under Ultraviolet Light, Letting You Clearly See Where It Is Applied.
Exclusive USBGuard Technology Detects Voltage Changes In Real Time, And Has 120%-Higher Overvoltage Tolerances Than Standard To Ensure Stable And Reliable Input Voltages — Minimizing The Risk Of Damage, And Protecting Your Equipment.
The Q-LED Core Display Produces Light Patterns By Power LED During The Power-On Self-Test (POST) That Can Help Users Troubleshoot Potential Issues.
Revisions To The Motherboard's Trace Routing Provide The Latest Intel Processors With Unrestricted Access To Memory Bandwidth. Improved DDR4 Performance Technology Carefully Maps Memory Signal Pathways Across Different PCB Layers To Reduce Vias And Adds Shielding Zones That Significantly Reduce Crosstalk.
