| BASIC INFORMATION | ||
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2 | |
| Form Factor | ATX Form Factor, 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Basic Information | ||
| Chipset | AMD X570 | |
| Audio | ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Supports : Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS ES9023P - Supports up to 32-Bit/192kHz playback * Audio Feature : - Gold-plated jacks, - Optical S/PDIF out port(s) at back panel, - Sonic Radar III, - Sonic Studio III + Sonic Studio Link, * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
|
| CPU | AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors | |
| Memory | ||
| Memory | Type: Dual Channel Memory Architecture, Slots: 4 x DIMM, DDR4, Supported Memory: 3rd Gen AMD Ryzen Processors, 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory 2nd Gen AMD Ryzen Processors, 3600(O.C.)/ 3466(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors, 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory, ECC Memory (ECC mode) support varies by CPU, Maximum Memory: 128GB |
|
| Storage | 3rd Gen AMD Ryzen Processors : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD X570 chipset : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
|
| Graphics | ||
| Graphics | Graphics: 3rd and 2nd Gen AMD Ryzen™ Processors, Supports NVIDIA 2-Way SLI Technology, Supports AMD 3-Way CrossFireX Technology, 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors, Supports AMD 2-Way CrossFireX Technology, Max Shared Memory: Max. 128GB |
|
| Connector & Ports | ||
| LAN | Intel I211-AT, Aquantia AQC111C 5G LAN, ASUS LAN Guard, ROG GameFirst V Technology, Wireless Data Network, Intel Wi-Fi 6 AX200, Supports channel bandwidth: HT20/HT40/HT80/HT160, 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz, Up to 2.4Gbps transfer speed, Bluetooth: Bluetooth 5.0 |
|
| Internal I/O Ports | 1 x PCH_FAN, 2 x Aura RGB Strip Header(s), 2 x Addressable Gen 2 header(s), 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s), 1 x M.2 Socket 3 with M key, type 2242/2260 storage devices support (both SATA & PCIE mode), 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode), 8 x SATA 6Gb/s connector(s), 1 x CPU Fan connector(s), 1 x CPU OPT Fan connector(s), 3 x Chassis Fan connector(s), 1 x Optional Fan connector(s), 1 x AIO_PUMP connector, 1 x H_AMP fan connector, 1 x W_PUMP+ connector, 1 x 24-pin EATX Power connector(s), 1 x 8-pin ATX 12V Power connector(s), 1 x 4-pin ATX 12V Power connector(s), 1 x Front panel audio connector(s) (AAFP), 1 x Slow Mode switch(es), 1 x LN2 Mode header(s), 1 x Power-on button(s), 1 x Reset button(s), 1 x Node Connector(s), 1 x Safe Boot button, 1 x ReTry button, 1 x System panel connector, 1 x W_IN header, 1 x W_OUT header, 1 x W_FLOW header, 1 x Thermal sensor connector, 1 x Speaker connector, 1 x USB 3.2 Gen 2 (up to 10Gbps) connector, 2 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 4 USB ports |
|

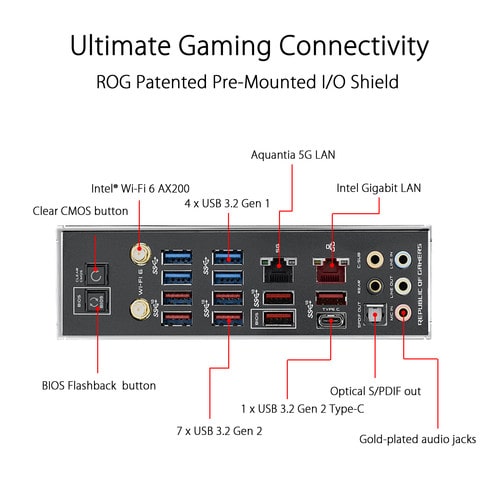

| USB Port | 3rd Gen AMD RyzenTM Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red, Type-A), 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) (4 at back panel, red, Type-A), AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s), AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) (3 at back panel, red, Type-A, 1 x Type-C), AMD X570 chipset : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue, 4 at mid-board), AMD X570 chipset : 4 x USB 2.0 port(s) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 03 Years Warranty | |

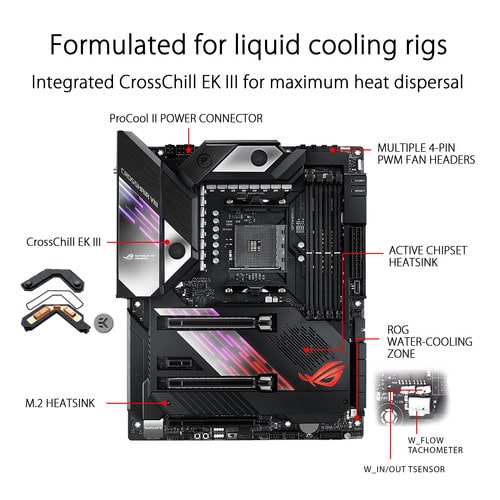

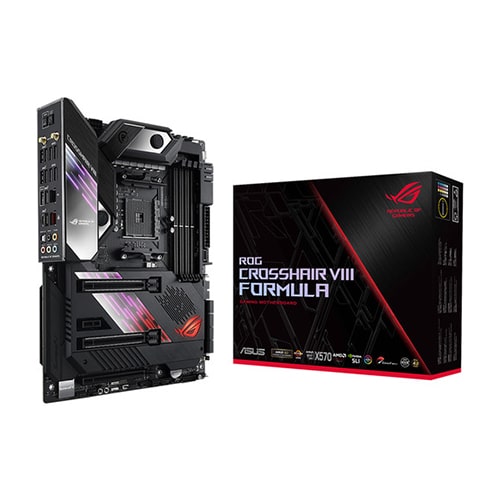

The ASUS ROG CROSSHAIR VIII FORMULA is a high-end ATX gaming motherboard designed for AMD processors, specifically the AM4 socket 3rd and 2nd generation AMD Ryzen processors, as well as 2nd and 1st generation AMD Ryzen processors with Radeon Vega Graphics. As a part of the prestigious Republic of Gamers (ROG) series, this motherboard is tailored to deliver exceptional gaming performance, advanced features, and top-notch build quality.One of the standout features of the ROG CROSSHAIR VIII FORMULA is its audio prowess. It comes equipped with the ROG SupremeFX 8-Channel High Definition Audio CODEC S1220, boasting a high-quality 120 dB SNR stereo playback output and 113 dB SNR recording input. The audio shielding and ESS ES9023P ensure immersive and crystal-clear sound, and the gold-plated jacks add to the overall audio experience. Moreover, the inclusion of Sonic Radar III and Sonic Studio III + Sonic Studio Link offers enhanced audio customization and spatial awareness during gaming.The motherboard features the AMD X570 chipset, which provides robust support for the latest AMD processors and offers PCIe 4.0 support for faster data transfer rates and graphics performance. The 256 Mb Flash ROM and UEFI AMI BIOS enhance system stability and allow for easy configuration and overclocking.In terms of graphics, the ROG CROSSHAIR VIII FORMULA supports NVIDIA 2-Way SLI Technology and AMD 3-Way CrossFireX Technology, making it ideal for gamers seeking multiple graphics card setups to achieve stunning visuals and smooth gaming experiences.Memory-wise, the motherboard can handle up to 128GB of DDR4 RAM with various supported frequencies depending on the processor used. The Dual Channel Memory Architecture ensures efficient memory performance, catering to gaming and multitasking needs.Connectivity options are abundant, with multiple USB ports, including USB 3.2 Gen 2 and USB 2.0 ports, as well as Intel Wi-Fi 6 AX200 for high-speed wireless data transfer. The LAN features Intel I211-AT and Aquantia AQC111C 5G LAN, ensuring smooth and low-latency online gaming experiences.For storage, the motherboard offers multiple M.2 slots and SATA ports, supporting high-speed PCIe 4.0 x4 and SATA storage devices. The RAID support further enhances data security and performance.The ASUS ROG CROSSHAIR VIII FORMULA boasts a range of features designed to optimize gaming experiences, including RGB lighting headers, thermal sensor connectors, Safe Boot button, and more.With its ATX form factor, this motherboard is compatible with most standard-sized PC cases, and the 3-year warranty offers peace of mind for long-term usage.
The Asus Rog Crosshair X570 VIII Formula AMD ATX Gaming Motherboard is now available in Bangladesh. Get the original products at the most affordable price only at pchouse.com.bd and enjoy the quality with the promise of the best customer service in Bangladesh.
