| BASIC INFORMATION | ||
| Supported CPU | ASRock Z690 PG Velocita 12th Gen ATX Motherborad |
|
| BIOS | - 256Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN_AUX, +1.8V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm - 8 Layer PCB - 2oz Copper PCB |
|
| Basic Information | ||
| Chipset | Intel Z690 | |
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Premium Blu-ray Audio support - Supports Surge Protection - Pure Power-In - Direct Drive Technology - PCB Isolate Shielding - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Gold Audio Jacks - 15μ Gold Audio Connector - Nahimic Audio |
|
| Memory | ||
| Memory | Type: DDR5 Slots: 4 x DDR5 DIMM Slots Supported Memory: - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) - Supports Intel Extreme Memory Profile (XMP) 3.0 - 15μ Gold Contact in DIMM Slots Maximum Memory: 128GB |
|
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| LAN | 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) Killer E3100 2.5G LAN, Intel Gigabit LAN - Supports Killer LAN Software - Supports Killer DoubleShot Pro - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports PXE 1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V) - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
|
| Wireless | 802.11ax Wi-Fi 6E Module | |
| Supported Storage | - 6 x SATA3 6.0 Gb/s Connectors - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode RAID: - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
|

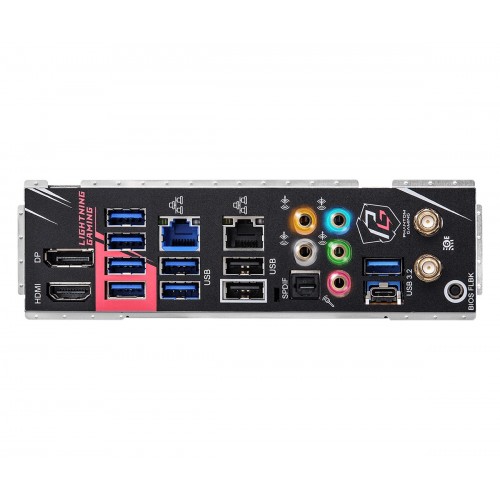

| Internal I/O Ports | - 2 x Antenna Ports - 1 x Optical SPDIF Out Port - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection) - 6 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) - 1 x BIOS Flashback Button |
|
| USB Port | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (Supports ESD Protection) |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM Header | |
| Others | ||
| Bundled Software | Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC |
|
| Special Features | ASRock USB 3.2 Gen2 - ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20 Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s) - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy - XXL Aluminum Alloy Heatsink - Premium 60A Power Choke - 60A SPS (Smart Power Stage) - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron power choke) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - I/O Armor - Matte Black PCB - High Density Glass Fabric PCB - 8 Layer PCB - 2oz Copper PCB Killer 2.5G LAN 802.11ax Wi-Fi 6E Killer DoubleShot™ Pro ASRock Auto Driver Installer ASRock Steel Slots ASRock Full Coverage M.2 Heatsink ASRock Blazing M.2 (PCIe Gen5x4) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) |
|
| WARRANTY INFORMATION | ||
| Manufacturing Warranty | 3 years | |

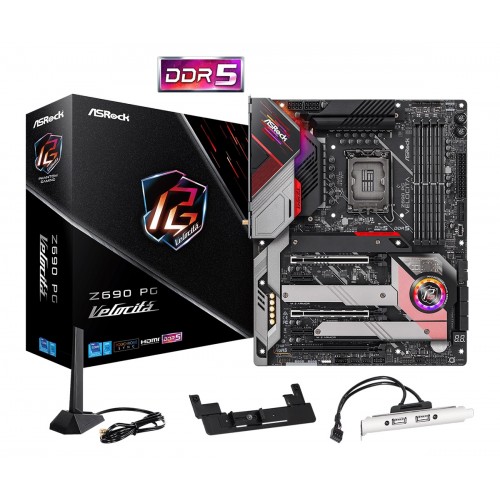

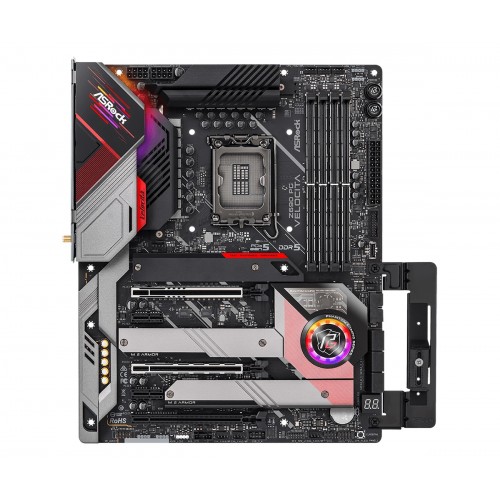

ASRock Z690 PG Velocita Motherboard Supports 12th Gen Intel Core Processors (LGA1700), 17 Phase SPS Dr.MOS Power Design, DDR5 6400MHz (OC), 1 PCIe 5.0 X16, 1 PCIe 4.0 X16, 1 PCIe 3.0 X16, 2 PCIe 3.0 X1, Graphics Output Options: HDMI, DisplayPort, Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio 6 SATA3. This ASRock Z690 PG Velocita 12th Gen Motherboard Comes With 1 Blazing M.2 (PCIe Gen5 X4), 2 Hyper M.2 (PCIe Gen4 X4), 1 Ultra M.2 (PCIe Gen3 X4 & SATA3), 1 USB 3.2 Gen2x2 Front Type-C, 2 USB 3.2 Gen2 (Rear Type A+C) And 10 USB 3.2 Gen1 (6 Rear, 4 Front), Lightning Gaming Ports, Killer E3100 2.5G LAN, Intel Gigabit LAN, Killer AX1675 802.11ax (WiFi 6E) & Bluetooth.
The ASRock Z690 PG Velocita Featured Withual Channel DDR5 Memory Technology, 4 X DDR5 DIMM Slots, Supports DDR5 Non-ECC, Un-Buffered Memory Up To 6400+(OC), Max. Capacity Of System Memory: 128GB, Supports Intel Extreme Memory Profile (XMP) 3.0 And 15μ Gold Contact In DIMM Slots. The 12th Gen ASRock Motherboard Has 7.1 CH HD Audio With Content Protection (Realtek ALC1220 Audio Codec), Premium Blu-Ray Audio Support, Surge Protection, Pure Power-In. It Also Featured With Direct Drive Technology, PCB Isolate Shielding, Impedance Sensing On Rear Out Port, Individual PCB Layers For R/L Audio Channel, Gold Audio Jacks, 15μ Gold Audio Connector And Nahimic Audio. This Latest Exclusive High-Quality ASRock Z690 PG Velocita Motherboard Has 03 Years Warranty.
