| Basic Information | ||
| Chipset | Intel H610 | |
| Audio | - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec) - Supports Surge Protection |
|
| BASIC INFORMATION | ||
| Supported CPU | - Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700) - Digi Power design - 6 Power Phase design - Supports Intel Hybrid Technology - Supports Intel Turbo Boost Max 3.0 Technology |
|
| BIOS | - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment |
|
| Form Factor | - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm - Solid Capacitor design |
|
| Expansion Slots | ||
| PCI | - 1 x PCIe Gen4x16 Slot - 2 x PCIe Gen3x1 Slots - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
|
| MEMORY SPECIFICATIONS | ||
| Type | Dual Channel DDR4 Memory Technology | |
| Memory | ||
| Slots | 2 x DDR4 DIMM Slots | |
| Supported Memory | - Supports DDR4 non-ECC, un-buffered memory up to 3200 - Supports ECC UDIMM memory modules (operate in non-ECC mode) - Supports Intel Extreme Memory Profile (XMP) 2.0 |
|
| Graphics | ||
| Graphics | - Intel Xe Graphics Architecture (Gen 12) - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4 - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI Port | |
| Display Port | 1 x DisplayPort 1.4 | |

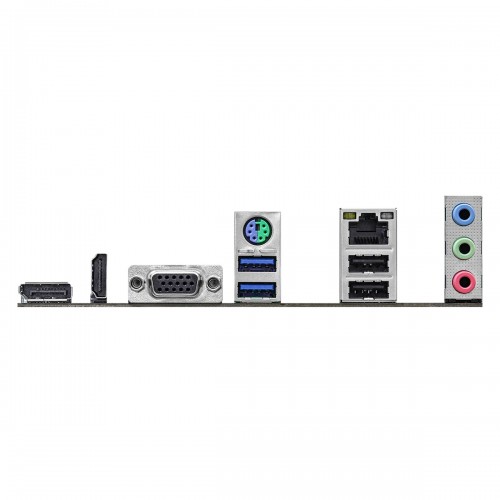

| USB (s) | - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protection) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
|
| LAN | - Gigabit LAN 10/100/1000 Mb/s - Giga PHY Intel I219V - Supports Wake-On-LAN - Supports Lightning/ESD Protection - Supports Energy Efficient Ethernet 802.3az - Supports UEFI PXE |
|
| Supported Storage | - 4 x SATA3 6.0 Gb/s Connectors - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes |
|
| Internal I/O Ports | - 1 x COM Port Header - 1 x SPI TPM Header - 1 x Chassis Intrusion and Speaker Header - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|
| WARRANTY INFORMATION | ||
| Warranty | 3 years | |

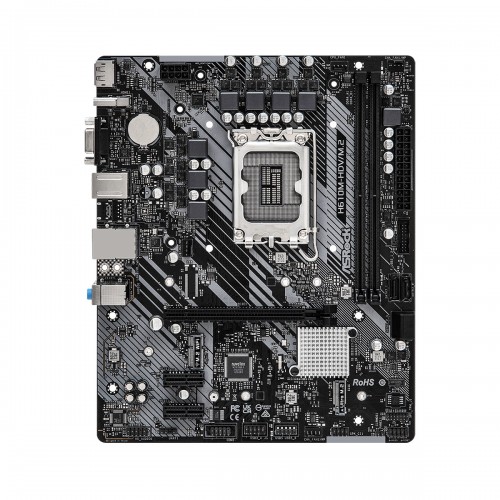

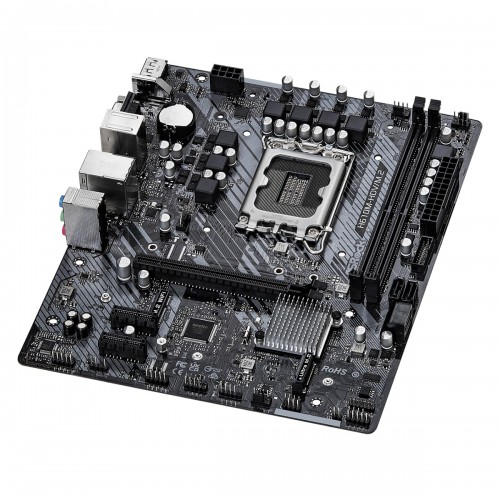

The ASRock H610M-HDV/M.2 Motherboard Supports 13th Gen & 12th Gen Intel Core Processors (LGA1700). It features a 6 Phase Power Design and it supports DDR4 3200MHz. uses a next-generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard are greatly enhanced.
The ASRock H610M-HDV/M.2 is a feature-packed micro ATX motherboard designed for 13th Gen and 12th Gen Intel Core processors (LGA1700). It offers a reliable foundation for building a powerful desktop system with excellent performance capabilities.Featuring the Intel H610 chipset, this motherboard supports dual-channel DDR4 memory technology, allowing for efficient data transfer and improved multitasking capabilities. The board accommodates up to two DDR4 DIMM slots, supporting non-ECC unbuffered memory modules up to a maximum frequency of 3200MHz. It also supports ECC UDIMM memory modules that operate in non-ECC mode, providing flexibility for different memory configurations. Additionally, it supports Intel Extreme Memory Profile (XMP) 2.0 for easy overclocking and enhanced memory performance.In terms of graphics, the ASRock H610M-HDV/M.2 utilizes the Intel Xe Graphics Architecture (Gen 12), offering impressive visual capabilities. It provides three graphics output options: D-Sub, HDMI, and DisplayPort 1.4. These options support high resolutions, including 4K at 60Hz via HDMI and 8K at 60Hz (or 5K at 120Hz) through DisplayPort 1.4 with DSC compression. The motherboard ensures smooth playback of high-quality multimedia content and supports HDCP 2.3 for protected content playback.The motherboard comes equipped with multiple connectivity options. It includes one PCIe Gen4x16 slot and two PCIe Gen3x1 slots for expansion cards, allowing you to add additional components such as dedicated graphics cards, network adapters, or storage devices. Furthermore, it features four SATA3 6.0 Gb/s connectors for traditional storage drives and a Ultra M.2 socket that supports both SATA3 and PCIe Gen3x4 modes for high-speed SSDs.Networking capabilities are provided by the Gigabit LAN port, powered by the Giga PHY Intel I219V controller. It supports Wake-On-LAN, Lightning/ESD protection, Energy Efficient Ethernet 802.3az, and UEFI PXE for convenient and reliable network connectivity.The ASRock H610M-HDV/M.2 incorporates a range of additional features to enhance the overall user experience. These include a 7.1 CH HD Audio solution with Realtek ALC897/887 Audio Codec and surge protection, ensuring high-quality audio output and safeguarding against electrical surges. The motherboard also boasts a 128Mb AMI UEFI Legal BIOS with multilingual GUI support, making it easy to navigate and configure various settings. Its micro ATX form factor provides compatibility with a wide range of PC cases, while the solid capacitor design ensures stable operation and durability.With its comprehensive set of features, the ASRock H610M-HDV/M.2 offers excellent performance, expandability, and reliability for users looking to build a compact desktop system with support for 13th Gen and 12th Gen Intel Core processors. Backed by a 3-year warranty, it provides peace of mind and a solid foundation for a versatile and capable PC setup.
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability, and is able to deliver the ultimate network experience to users. Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
It comes with a D-Sub + DisplayPort + HDMI combo. It supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz. It also supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz. D-Sub with max. resolution up to 1920x1200 @ 60Hz. It comes with support HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports.
The ASRock H610M-HDV/M.2 Motherboard has 03 years warranty.
